About the product

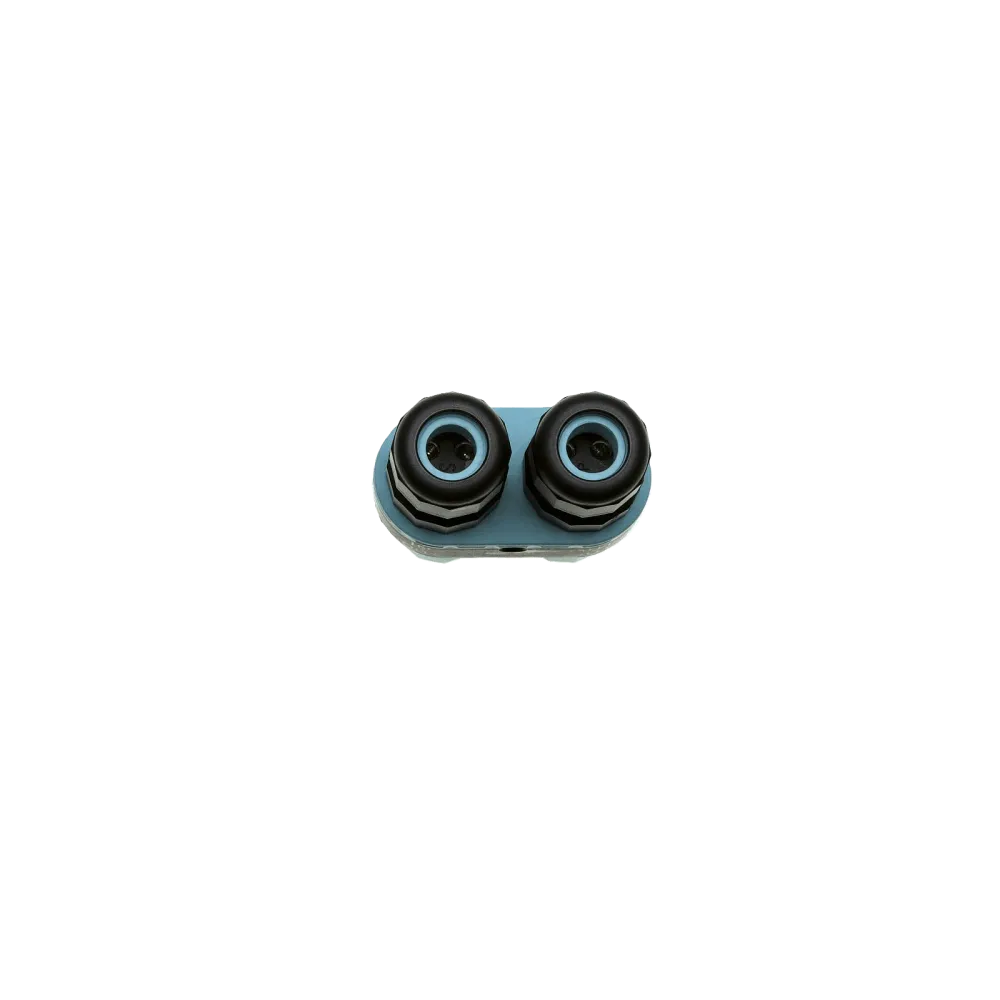

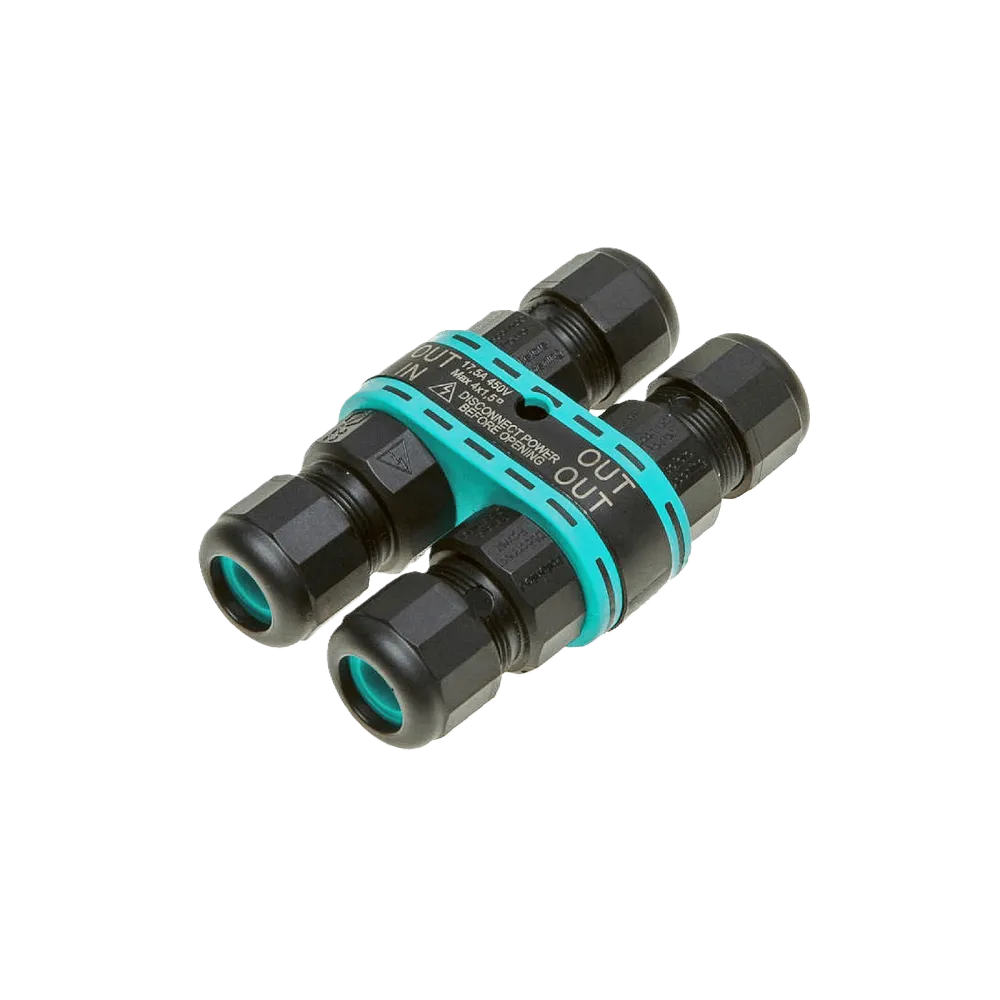

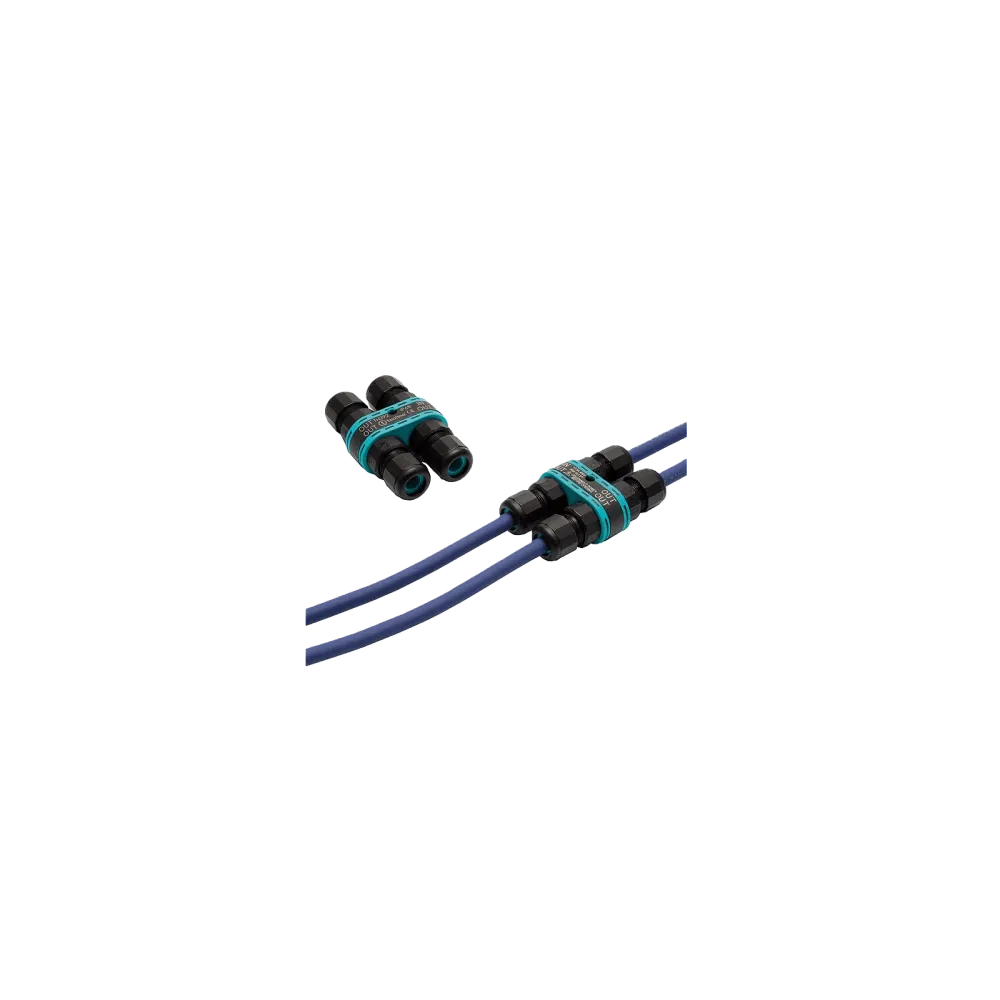

4-way "H"-Type Junction Connector TH392 from Techno, Italy
Prewired, with 4 connections from Techno, Italy- Quick and simple installation.
- 4 Connections
- For cable diameter: Ø 7.0 – 12.0 mm
- Compact Dimensions: 82.0 x 53.3 x 28.0 mm
- IP Rate: IP68
Further, not published products and versions from Techno on request.
Technical data
No of input/outlets: 4 (1+3)
For Cable diameters: Ø 7.0 – 12.0 mm
No of poles: 4 (1-2-3-4)
Cable Cross sections: 0.50 – 1.50 mm2 (Piercing)
Nominal Voltage: 450 V AC
Nominal Current: 17.5 A AC/DC
Dimensions Exterior: 82.0 x 53.3 x 28.0 mm
IP Rate: IP68
Temperature: T 85°C
Housing material: PA66 UL94 V / PA66 UL94 V2 (Cable Glands)
O-Rings: TPE
Material characteristics: Halogen free, Silicon free
Errors and Technical changes reserved
Product specifications
| Product | Cable joiner wire-to-wire |
| Pole | 4 |
| Nominal current | 17.5 A |
| Nominal voltage (V) | 450 V |
| Cable diameter | 7-12 mm |
| Wire section | 0.5-1.5 mm² |
| Manufacturer | Techno |
