About the product

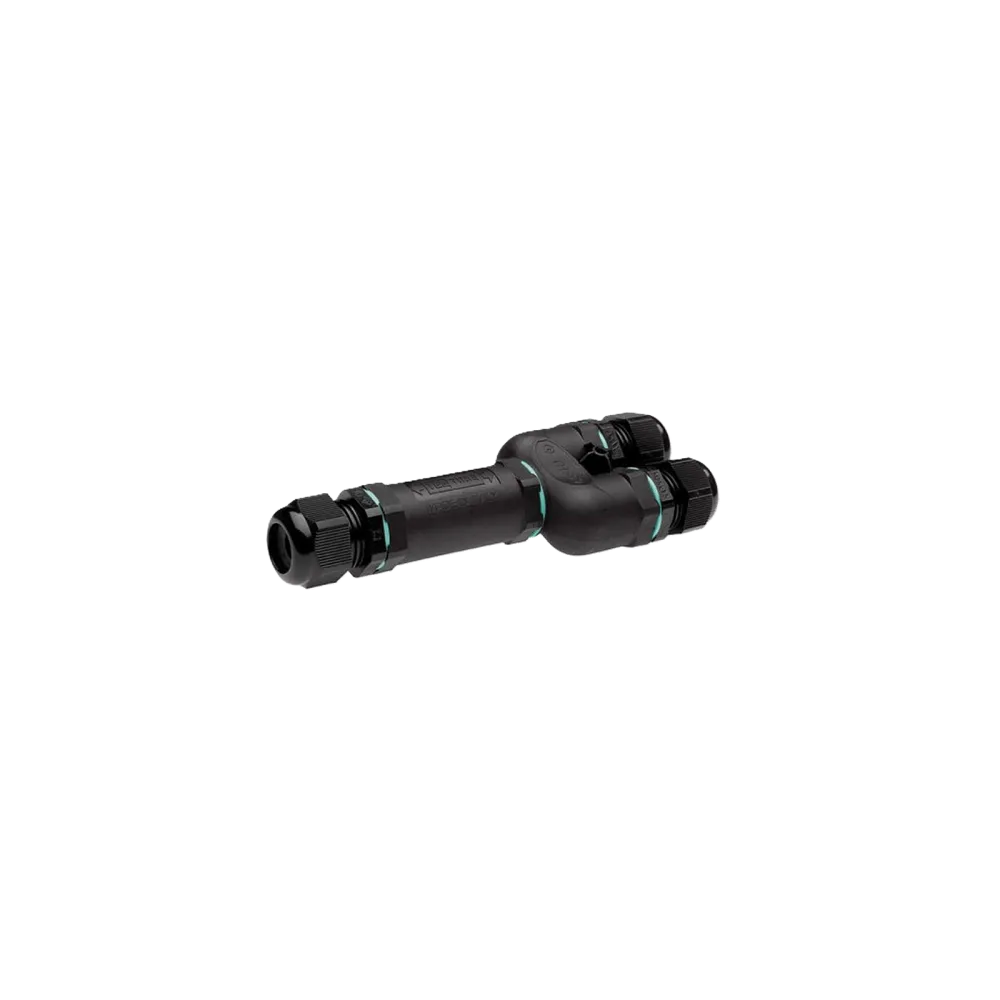

3-way Y-Cable Distributor / Junction Box THR399 from Techno, Italy
- 3 connections
- For cable diameter: Ø 6.0 – 17.0 mm
- Dimensions: Ø 34.0 x 65.5 x 180 mm
- IP Rate: IP68
Further, not published products and versions from Techno on request.
Technical data
No of connections: 3
No of Poles: 5
For cable diameters: Ø 6.0 – 17.0 mm
Cross sections: 0.50 – 1.50 mm2
Nominal Voltage: 450 V AC
Nominal Current: 32 A
Dimensions Exterior: Ø 34.0 x 65.5 x 180 mm
IP Rate: IP68
Temperature: T 125°C
Housing material: PA66 GF UL94 V0 / PA66 UL94 V2 (cable glands)
O-Rings: Silicone
Gaskets: TPE
Material characteristics: Halogen free
Errors and Technical changes reserved
Product specifications
| Product | Cable joiner wire-to-wire |
| Pole | 5 |
| Nominal current | 32 A |
| Nominal voltage (V) | 450 V |
| Cable diameter | 6-17 mm |
| Wire section | 0.5-1.5 mm² |
| Manufacturer | Techno |
