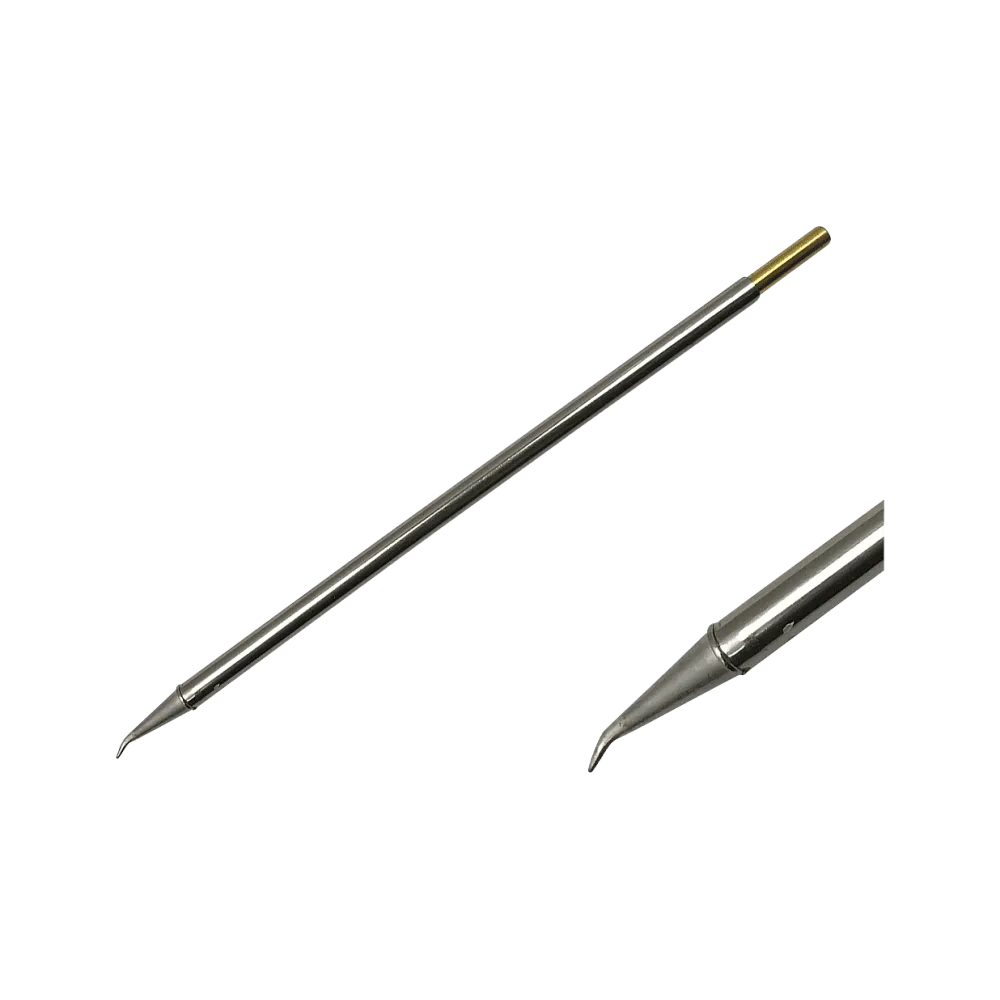

STTC-144 – Cartridge conical bent (ø x L) 0.5 x 14.5 mm, 700 Series

STTC-, SMTC-Solder Tip Cartridges are the standard soldering tip range for the Metcal MX-500, MX-5200 and MX-5200 series soldering systems.

All cartridges are available in 3 temperature ranges:

• 600-series nominally 330 ˚C
• 700-series nominally 390 ˚C
• 800-series nominally 450 ˚C

The temperature/series is designated by the first digit following the dash in the part number. e.g. 600-series is STTC/SMTC-0xxx, 700-series is STTC/SMTC-1xxx and 800-series is STTC/SMTC-8xxx. Metcal recommends the 700-series for the majority of applications. The 600-series for light load or low temperature applications, 800-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
