Item ID: 42620.13051

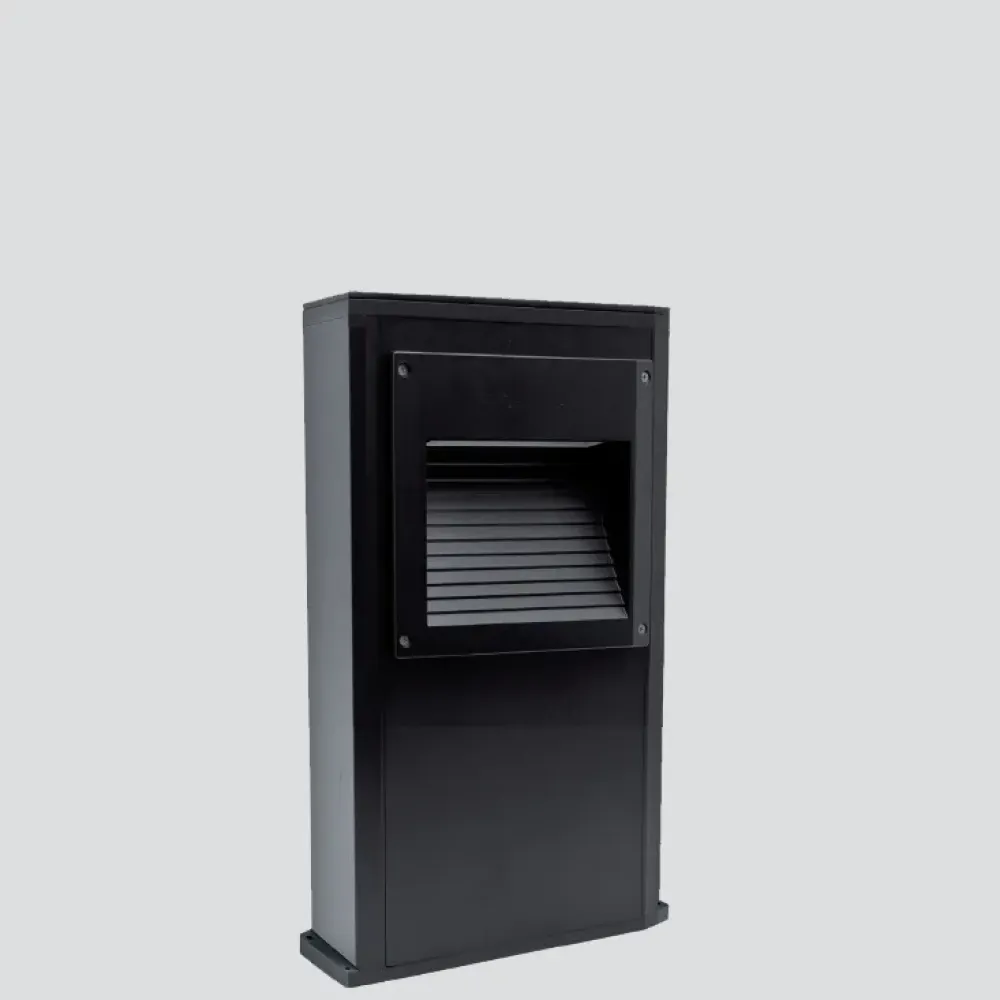

Square Small Pole 290F0/WR3.PR-Small Poles - Bollard H. 500 square window
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product
Ground bollard featuring high quality construction features. Square is a solid and resistant product designed and created to ensure lighting solutions for the outdoor environment, especially in residential areas characterized by green areas and gardens. Mechanically built in such a way that the light is directed in a specific way, Square presents itself as a versatile product that can be completed with the recessed version.
Product specifications
| Assembly | ground installation |
| Absorbed power | 15 W |
| Source | LED |
| Source flux | 1920 lm |
| Fixture source | 510 lm |
| Apparent efficiency | 27.00% |
| Insulation class | class I |
| Operating Ta | 50° |
| CCT LED | 3000K |
| CRI | >80 |
| Photobiological risk | RG0 |
| Power module LED | 13 W |
| Control | on/off |
| Protection | IP65/IK07 |
| Body | Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy |
| Screen | transparent polycarbonate |
| Seals | molded silicone gasket UV-resist |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

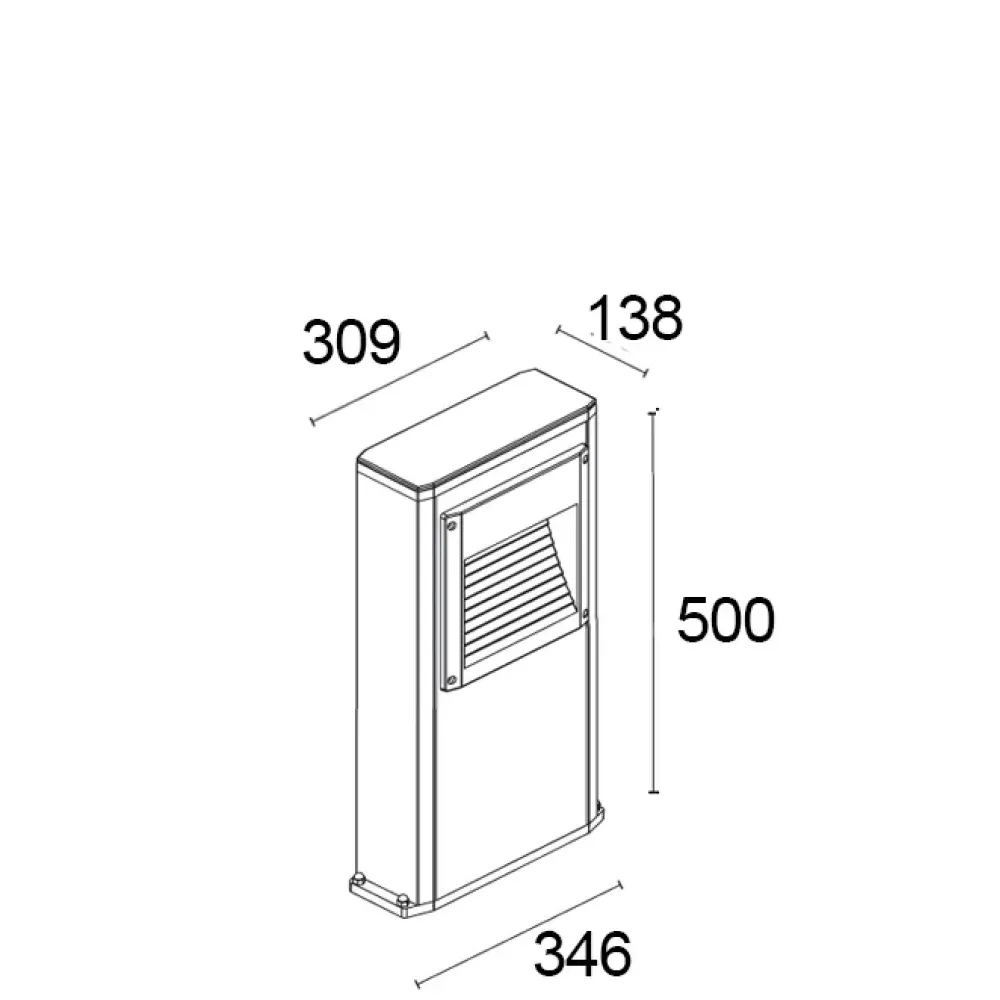

| Size | H 500 x L 346 x W 138 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 500 mA |
| Beam opening | asymmetric >100° |
