Item ID: 40700.13051

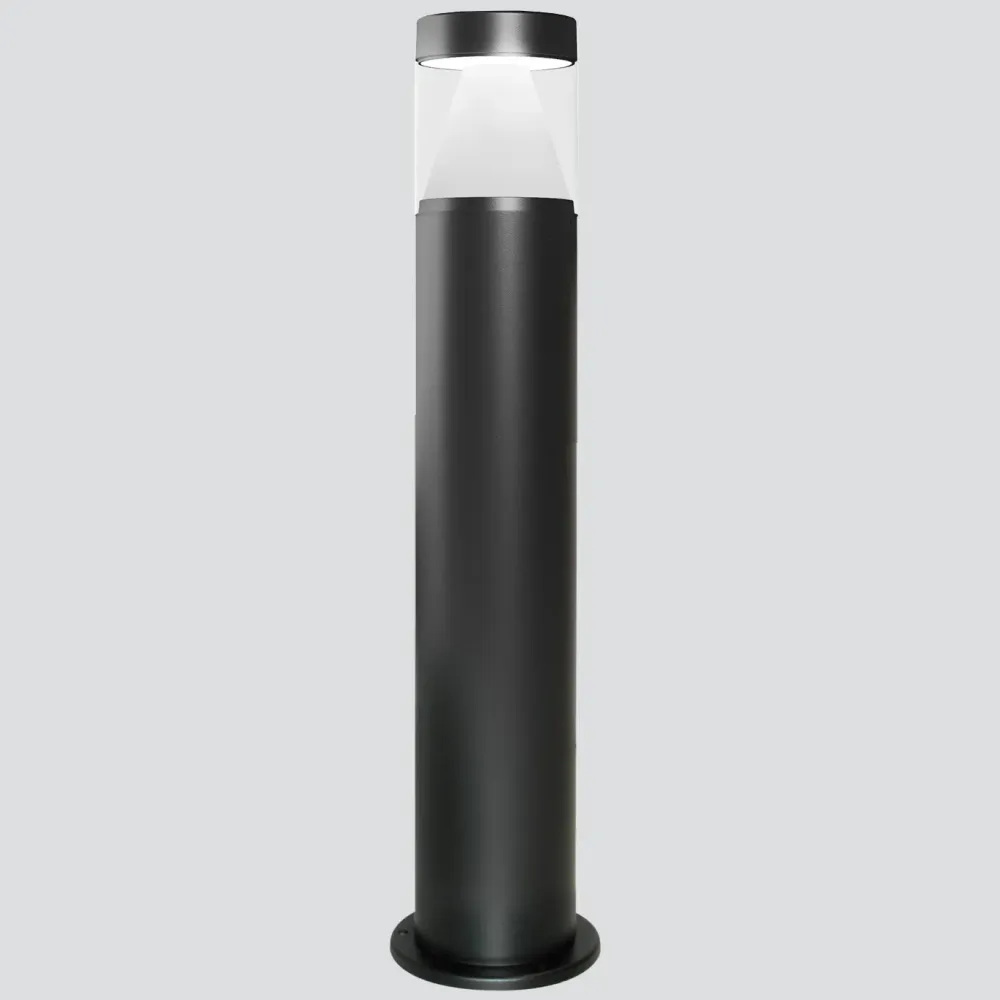

Siluretto 092-335-WR10-Small Poles - Bollard with base for above ground installation
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product
Siluretto is designed specifically for the residential lighting of paths, gardens, avenues, all in respect of the Regulations on Light Pollution, through the use of 360° radial optics that guarantee an emission mainly directed towards the ground. The lamp body is firmly connected to the pole by means of a bayonet coupling which makes it easily removable during normal maintenance operations.
Product specifications
| Assembly | ground installation |
| Source | LED |
| Source flux | 3840 lm |
| Fixture source | 2020 lm |
| Apparent efficiency | 53.00% |
| Insulation class | class I |
| Overvoltage protection | 2-3kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 3000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG0 |
| Absorbed power | 26 W |
| Power module LED | 24 W |
| Protection | IP65/IK08 |
| Body | Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy |
| Screen | transparent polycarbonate |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

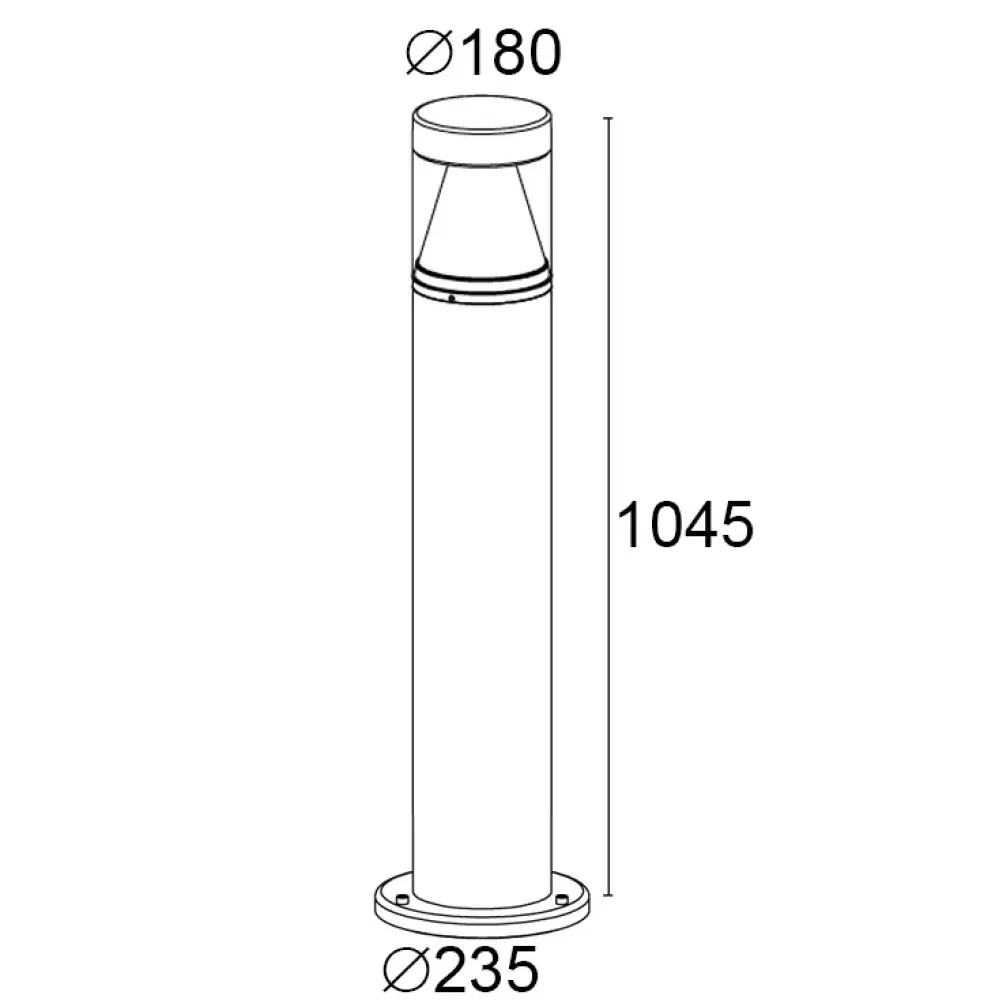

| Size | H 1045 x Ø 180 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 650 mA |
| Control | on/off |
| Specific wiring | included |
| Wiring | included |
| Beam opening | diffuse 360° |
