Item ID: 41346.13116

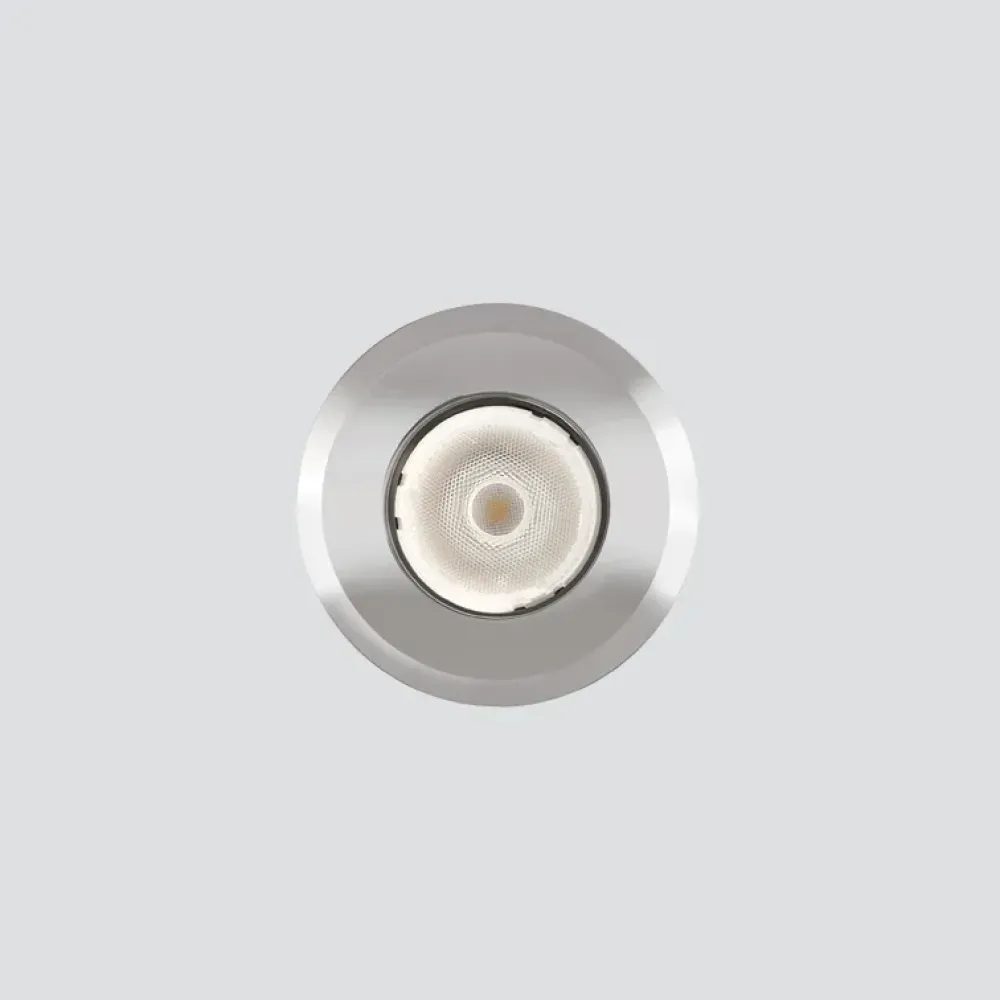

Rim 70 Ceiling 3070C/WRRCVS99-Ceiling Recessed - Recessed with steel ring nut Ø70 - Remote driver 24Vdc
About the product
Rim, the latest addition to the Augenti collection, is a small but performing recessed fixture with steel ring, proposed with diameters of 45 mm and 70 mm. The reduced sizes and the easy and quick installation allow its positioning in external and internal areas. In fact, Rim can be installed on floor, wall or ceiling, turning almost invisible, but insuring the created light and atmosphere to be the real main characters of the scene. The proposed beams are suitable for smooth or highlighted effects, for single or in-series installations. The ring of 316L stainless steel and the system AcquaStop for the anti-condensation protection make Rim a safe and multipurpose product, ideal to give light to your fantasy.
Product specifications
| Assembly | ceiling installation |
| Source flux | 690 lm |
| Fixture source | 70 lm |
| Apparent efficiency | 10.00% |
| Insulation class | class III |
| Operating Ta | -20°C to +50°C |
| CCT LED | 3000K |
| CRI | 80 CRI |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Optical distribution | PMMA lens |
| Source | LED |
| Absorbed power | 6 W |
| Control | on/off |
| Protection | IP67/IK08 |
| Body | anticorodal aluminum 6000 series, high corrosion resistance |
| Box | polypropylene (PP) 30% fiber UV-stabilized GWT750 |
| Frame | stainless steel AISI316L |
| Screen | opal glass |
| Seals | Closed-cell EPDM rubber |
| Size | H 70 x Ø 70 mm |
| Power supply | 24 VDC |
| Driver | remote driver not included |
| Driver current | 24 mA |
| Beam opening | diffuse/120° |
