Item ID: 41254.13051

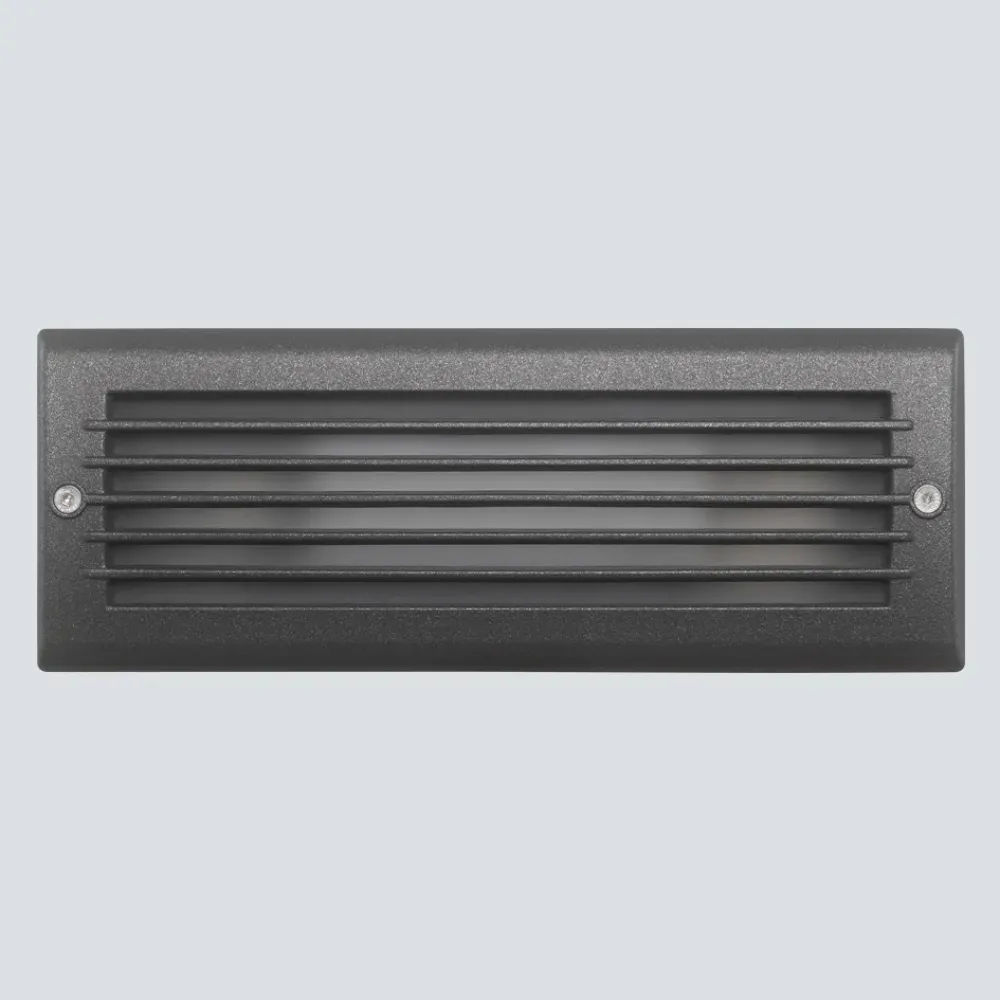

Recta Maxi 9400R/NC3.VS-Wall Recessed - Recessed with linear grid - Built-in driver
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product
Recta is a product made with high quality materials which ensure maximum outdoor performance. Wall-mountable, Recta is designed to last over time and ensure optimal light propagation. Elegant and sophisticated, it will add style to your outdoor spaces. Dali dimmable on request with extra charge.Dali dimmable on request with extra charge.
Product specifications
| Assembly | wall recessed installation |
| Absorbed power | 11 W |
| Source | LED |
| Source flux | 1470 lm |
| Fixture source | 340 lm |
| Apparent efficiency | 23.00% |
| Insulation class | class I |
| Overvoltage protection | 2 kV |
| Energy class | Class A |
| CCT LED | 4000K |
| CRI | 80 CRI |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG0 |
| Optical distribution | frosted diffuser |
| Power module LED | 9 W |
| Specific wiring | included |
| Protection | IP65/IK08 |
| Body | die-cast aluminium |
| Box | polypropylene (PP) 30% fiber UV-stabilized GWT750 |
| Frame | die-cast aluminium |
| Screen | frosted glass |
| Seals | molded silicone gasket UV-resist |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

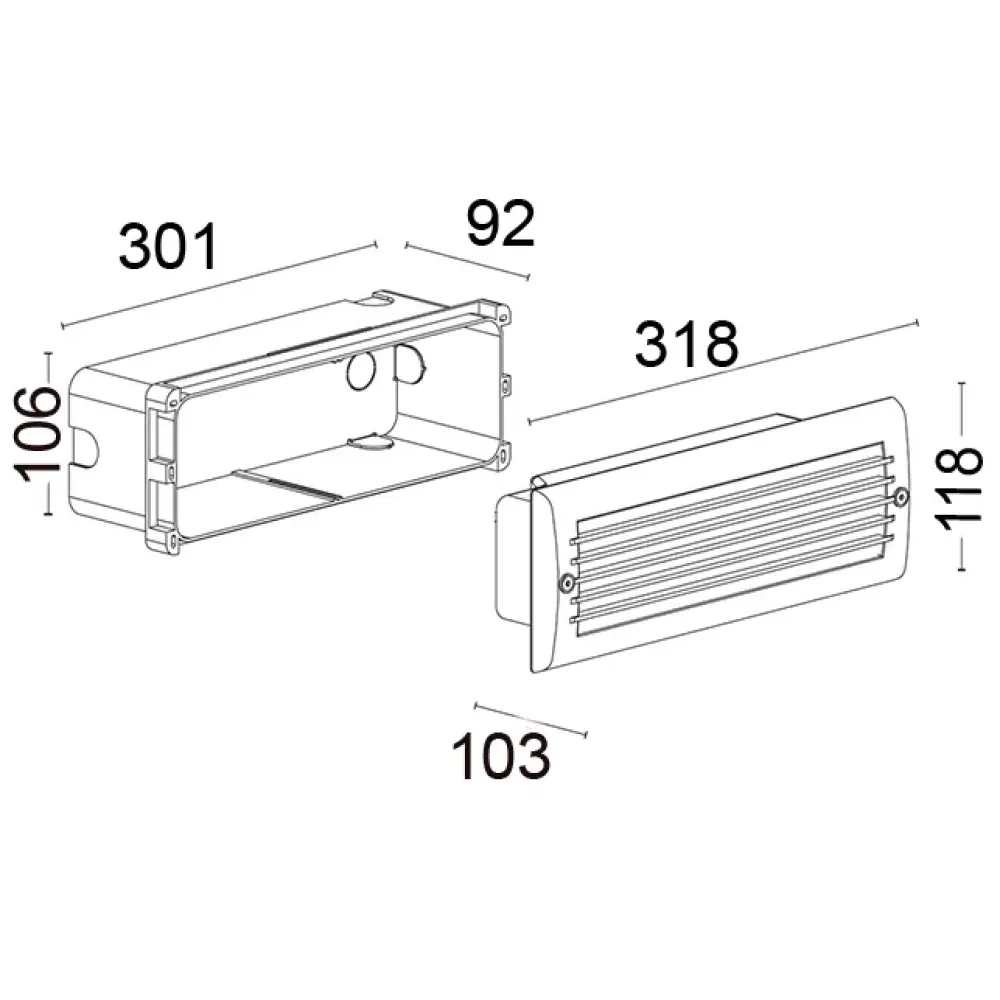

| Size | H 118 x L 318 x W 103 mm |
| Net weight | 2 kg |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 350 mA |
| Control | DALI available on request |
| Beam opening | shielded emission |
