Product
Step 20
Finish
Silver anodized
Stainless steel
Power/Control
On/Off
Light color/CCT
3000 K
4000 K
5700 K
Optics
17°
32°
55°
80°
50° x 30°
30° x 50°
Wide wall washer
Narrow wall washer
About the product

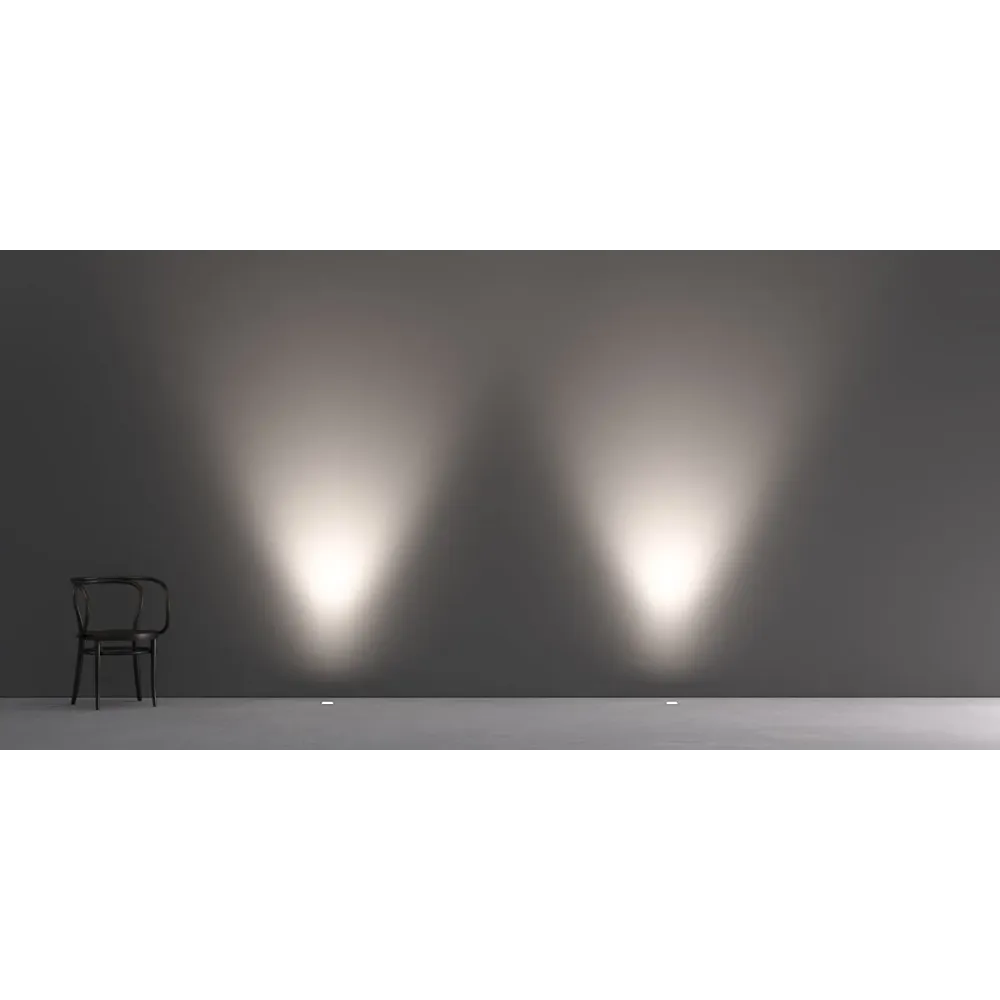

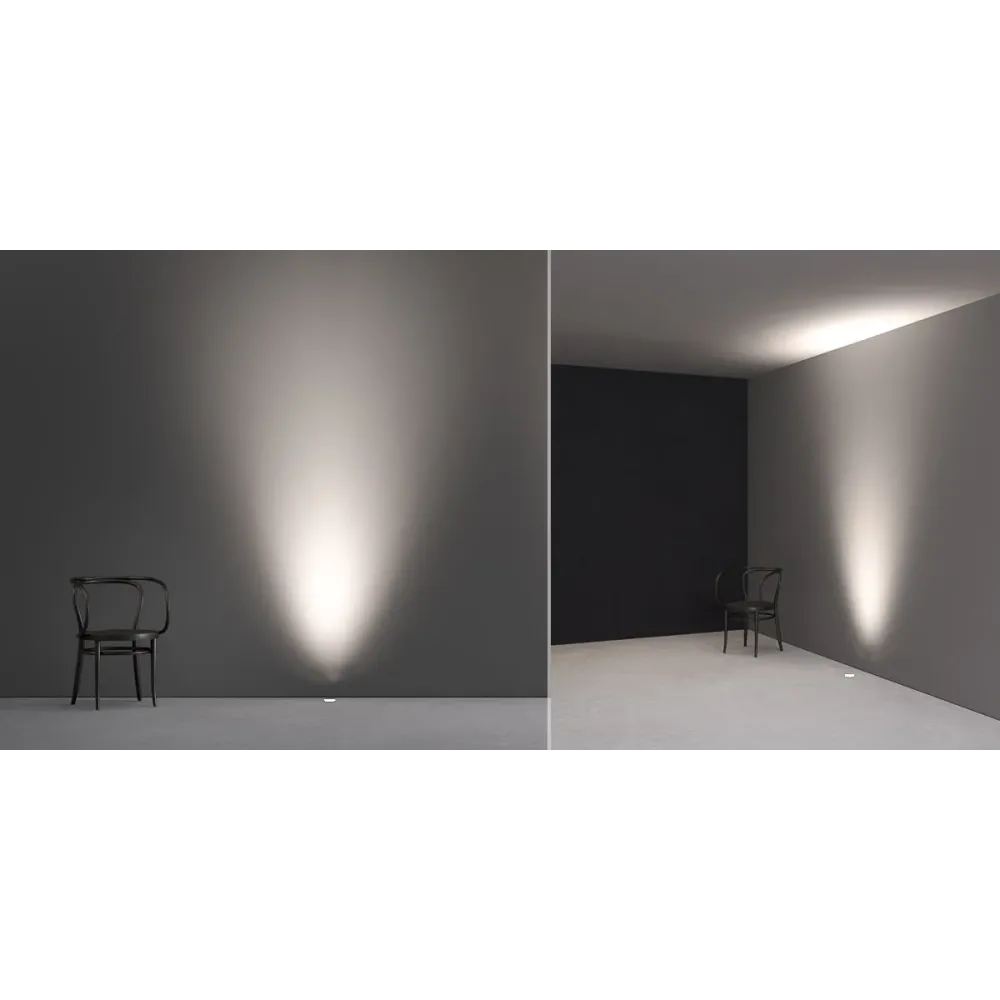

Recessed spotlights in machined aluminum alloy equipped with COB (chip-on-board) type LEDs for ground lighting of facades, trees, urban and archaeological details. Sturdy construction, walkable. Powers from 10W to 30W.Eight high-precision beam angles, including two elliptical and two asymmetrical emissions. Three color temperatures from 3000K to 5700K. Power supply on board.
Product specifications
| IP rating | IP66/67 |
| Management interface | on/off |
| Colour temperature/CCT | 3000K, 4000K, 5700K |
| Beam angle | 17°, 32°, 55°, 80°, 50°x30°, 30°x50°, wide wall washer, narrow wall washer |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | ground-recessed |
| Finishing | stainless steel |
| Construction | machine-crafted aluminium alloy, silicone gasket, tempered extra-clear glass, nickel-plated brass, stainless steel collar |
| Power supply | On-board power supply |
| Insulation class | insulation class I |
| Voltage | 230 V |
| IK rating | 8 |
| Source type | Chip on board |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 2985 lm |
| Light efficiency | 174.4 lm/W |
| Delivered flux | 2015 lm |
| Delivered efficiency | 104.9 lm/W |
| Input power | 19 W |
| Net weight | 1.7 kg |
