Item ID: 40524.13051
Orion TL 481F0/WR35PO-Small Poles - Bollard Total Light 1 Way H. 680
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product

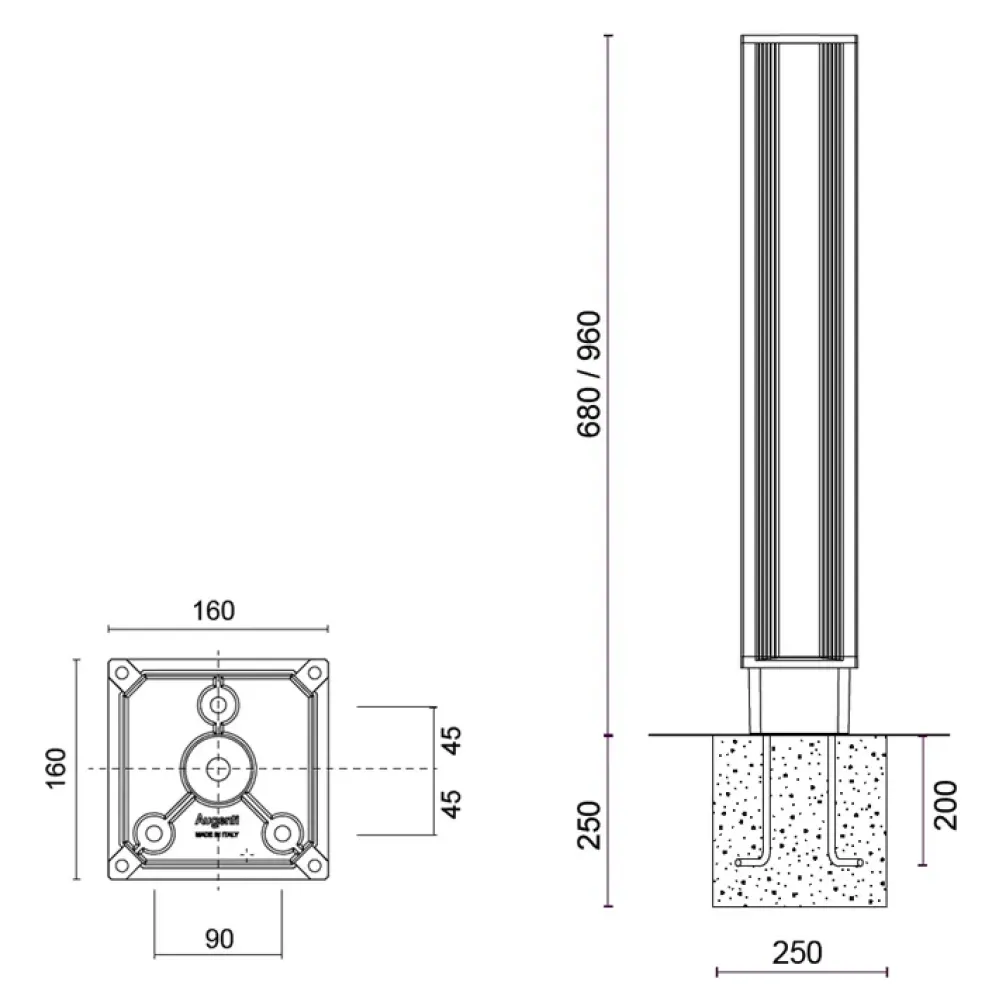

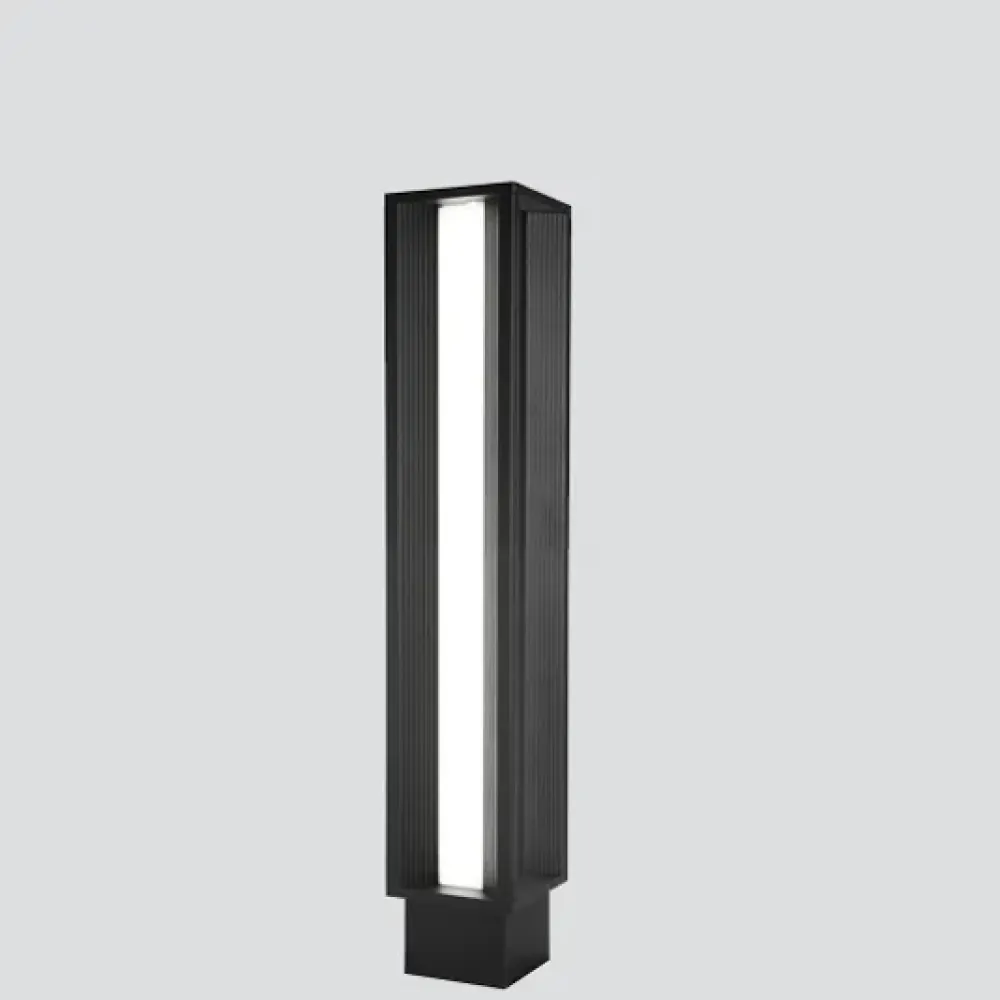

Column luminaire, for floor installation, with diffuser along its entire length for a scenographic uniformity of light. Optical compartment configurable for an emission from 1 to 4 light points in different heights. Floor fixing bracket with A2 steel clamps (on request).
Product specifications
| Assembly | ground installation |
| Source flux | 1250 lm |
| Fixture source | 585 lm |
| Apparent efficiency | 47.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 3000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG0 |
| Source | LED |
| Absorbed power | 10 W |
| Power module LED | 8 W |
| Protection | IP65/IK08 |
| Body | Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy |
| Screen | Opale Polycarbonate |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

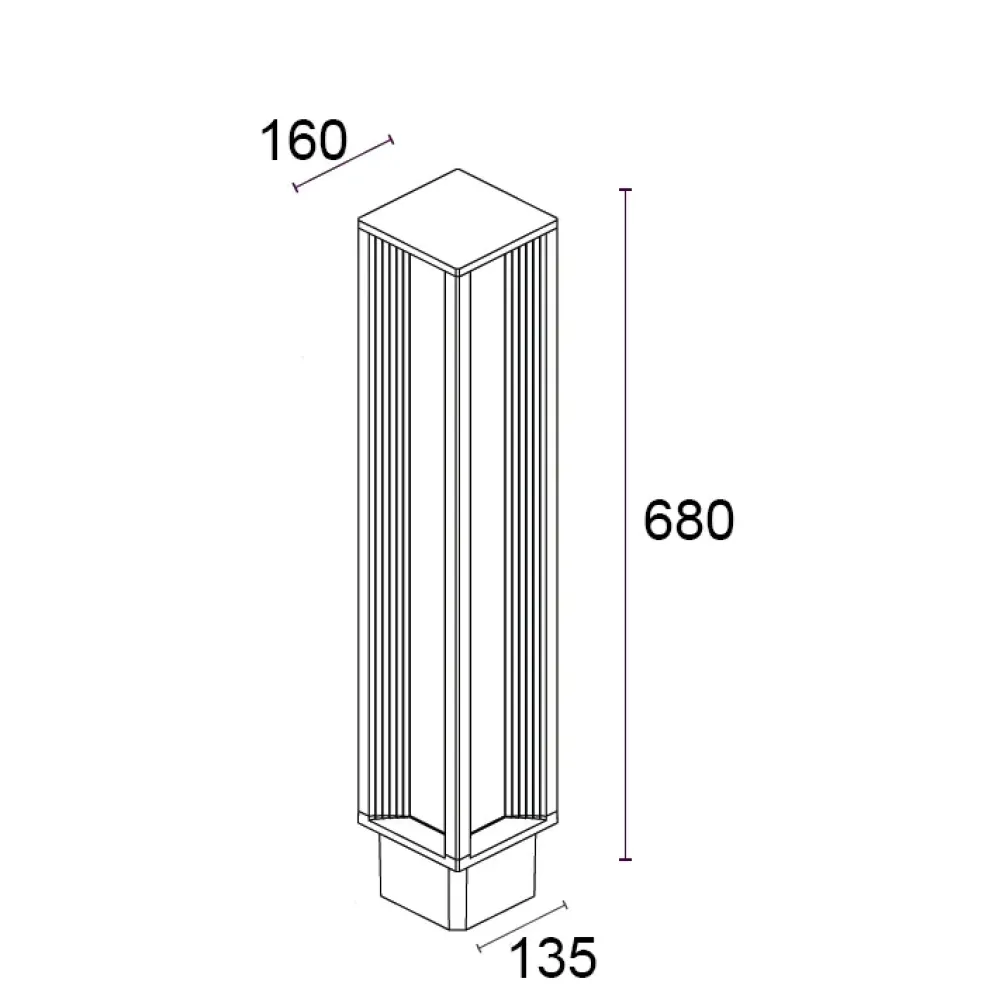

| Size | H 680 x L 160 x W 160 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 350 mA |
| Control | on/off |
| Specific wiring | included |

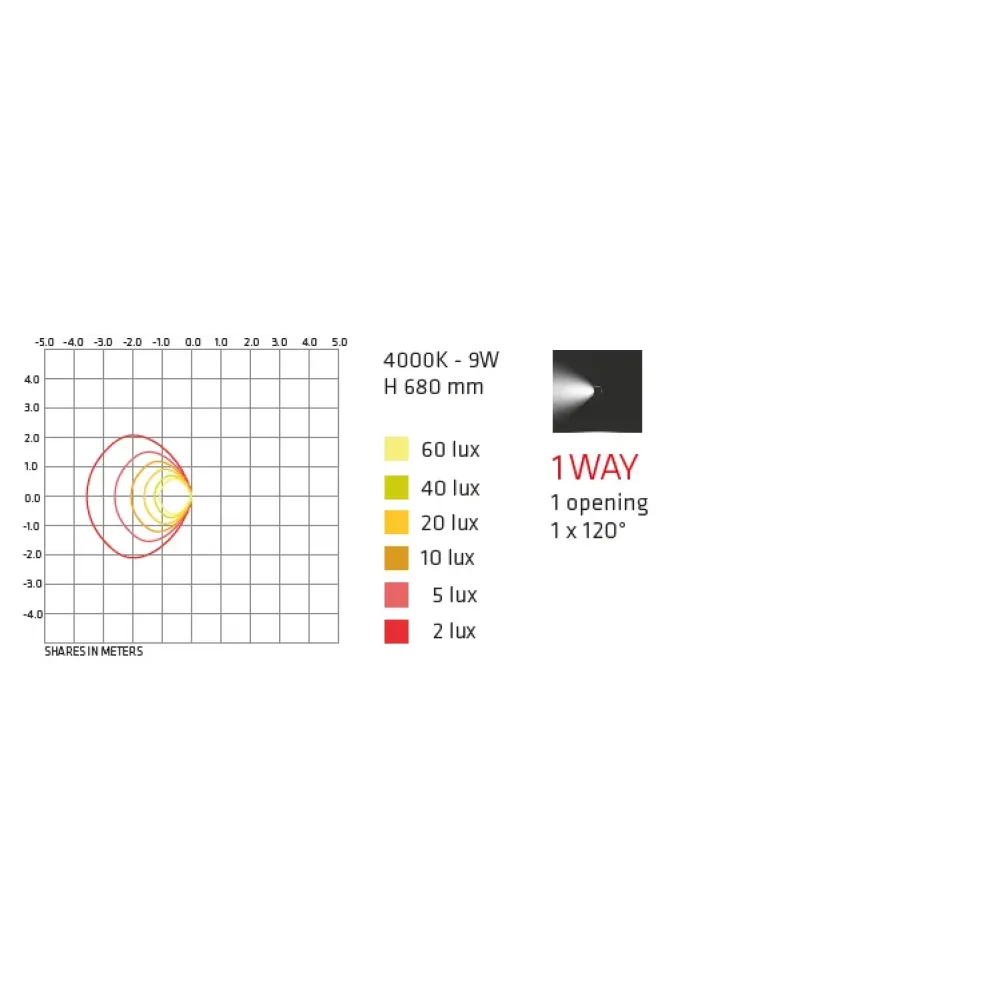

| Beam opening | 1 way/diffuse >120° |
