Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product

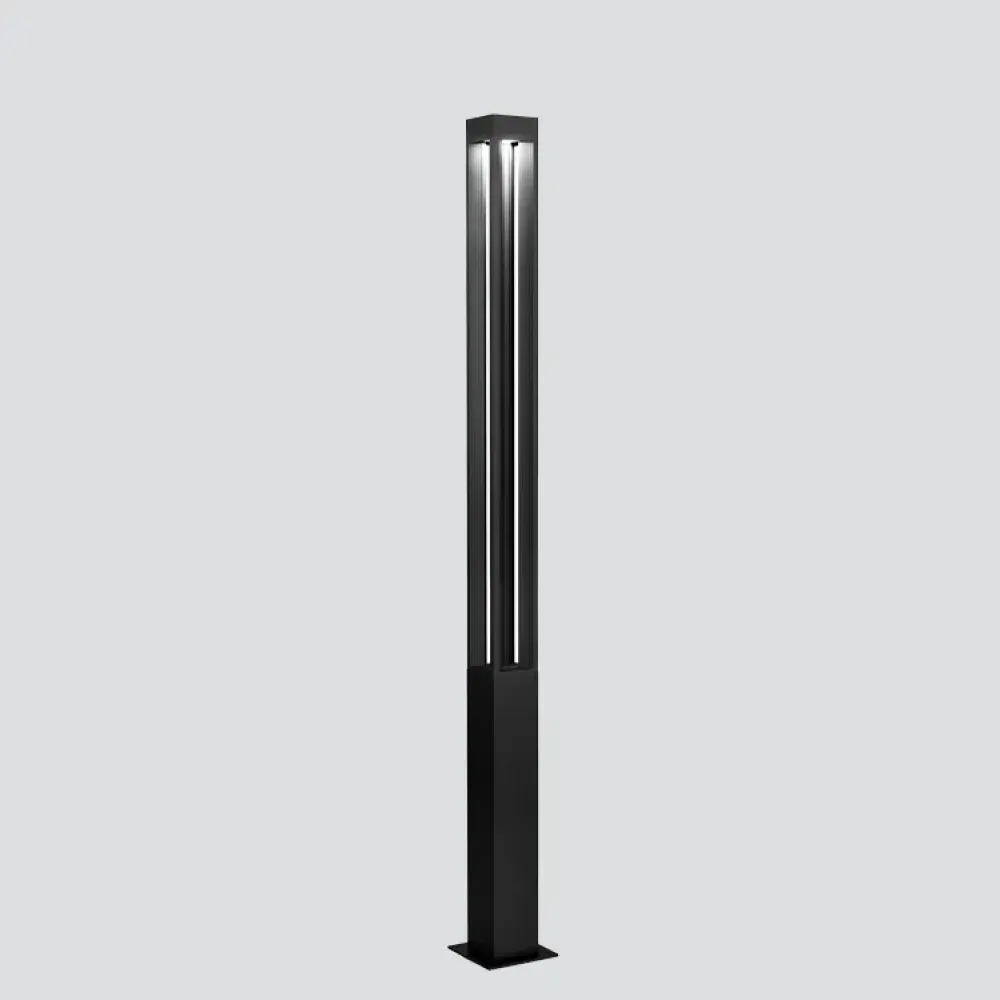

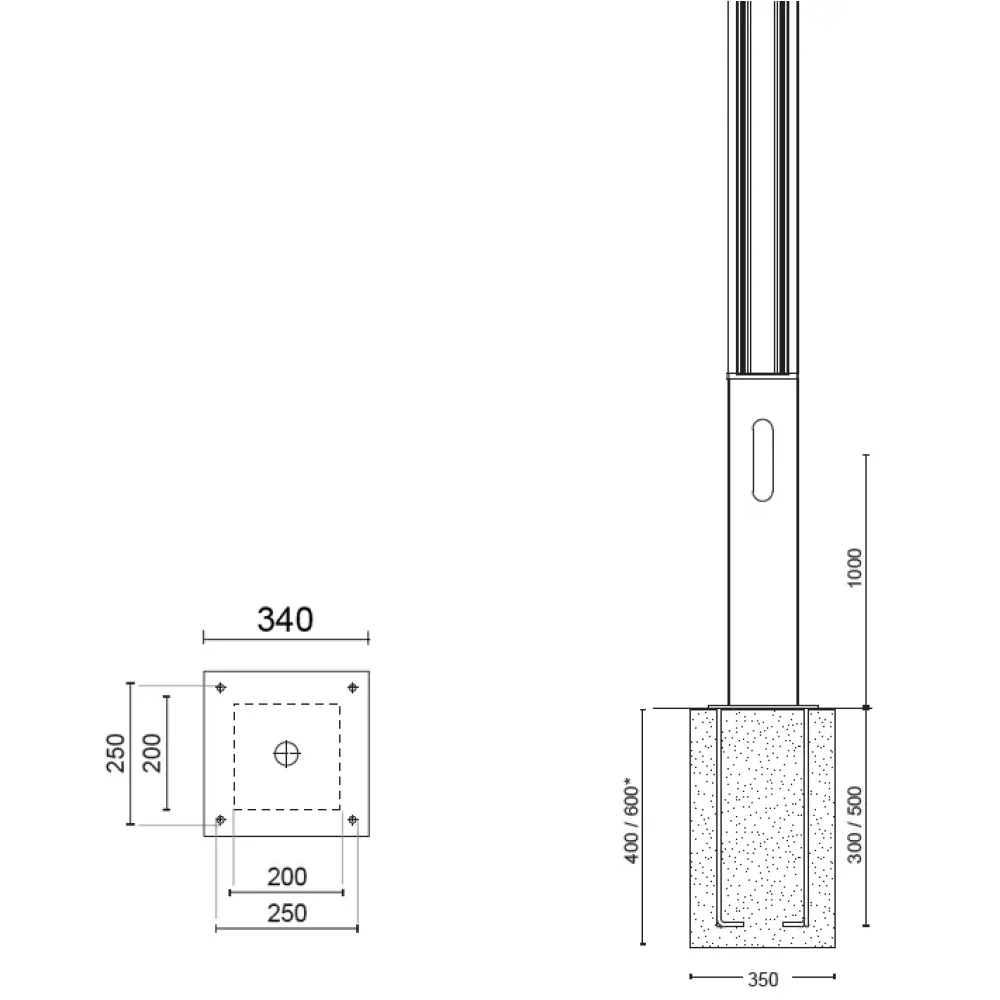

Column luminaire, for floor installation, with source light placed on top of fixture with a downwarding emission. This ensure an optimal light distribution on the ground and a better control of glaring effects. Floor fixing bracket with A2 steel clamps.
Product specifications
| Assembly | ground installation |
| Source flux | 4720 lm |
| Fixture source | 2800 lm |
| Apparent efficiency | 59.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 3000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Optical distribution | silicone |
| Source | LED |
| Absorbed power | 35 W |
| Protection | IP65/IK08 |
| Body | Pole: Extruded aluminium alloy - Body/Base: Die-cast aluminium alloy |
| Screen | sandblasted glass |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

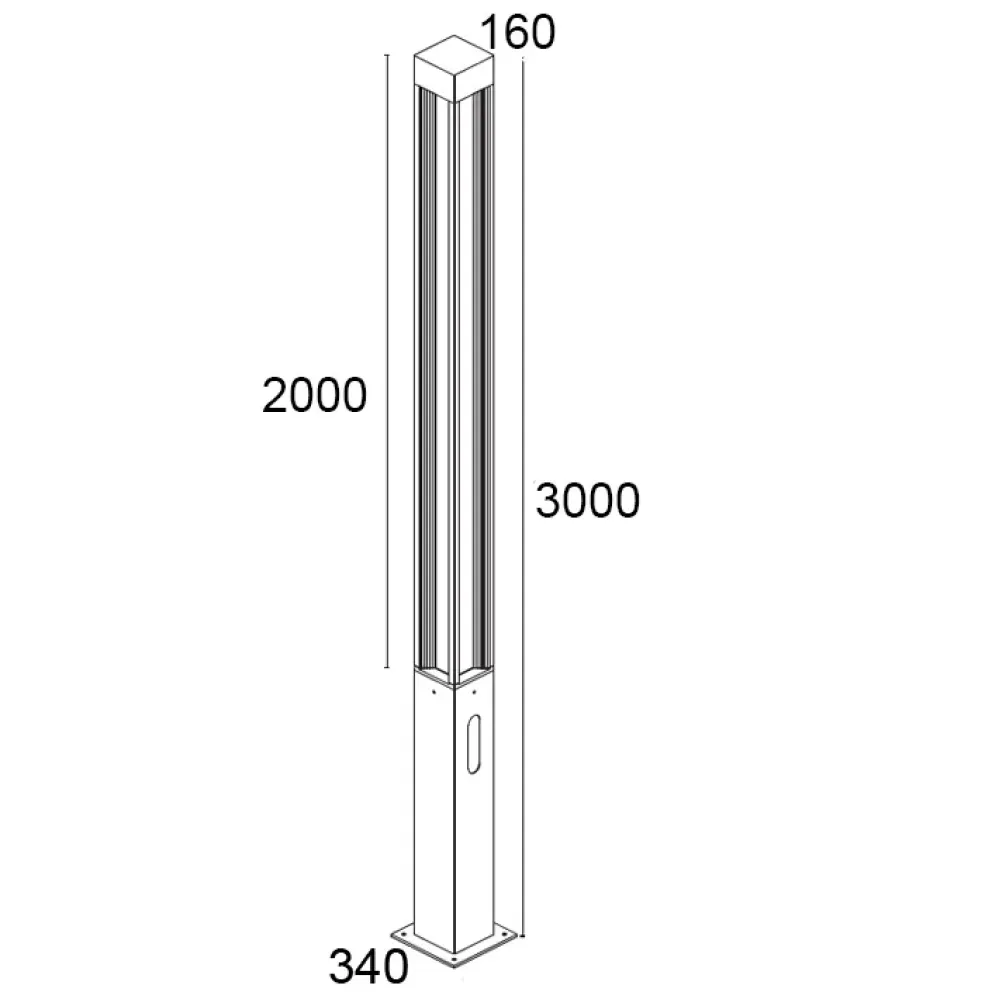

| Size | H 3000 x L 340 x W 340 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 900 mA |
| Control | DALI-2 integrated |
| Specific wiring | included |
| Power module LED | 32 W |

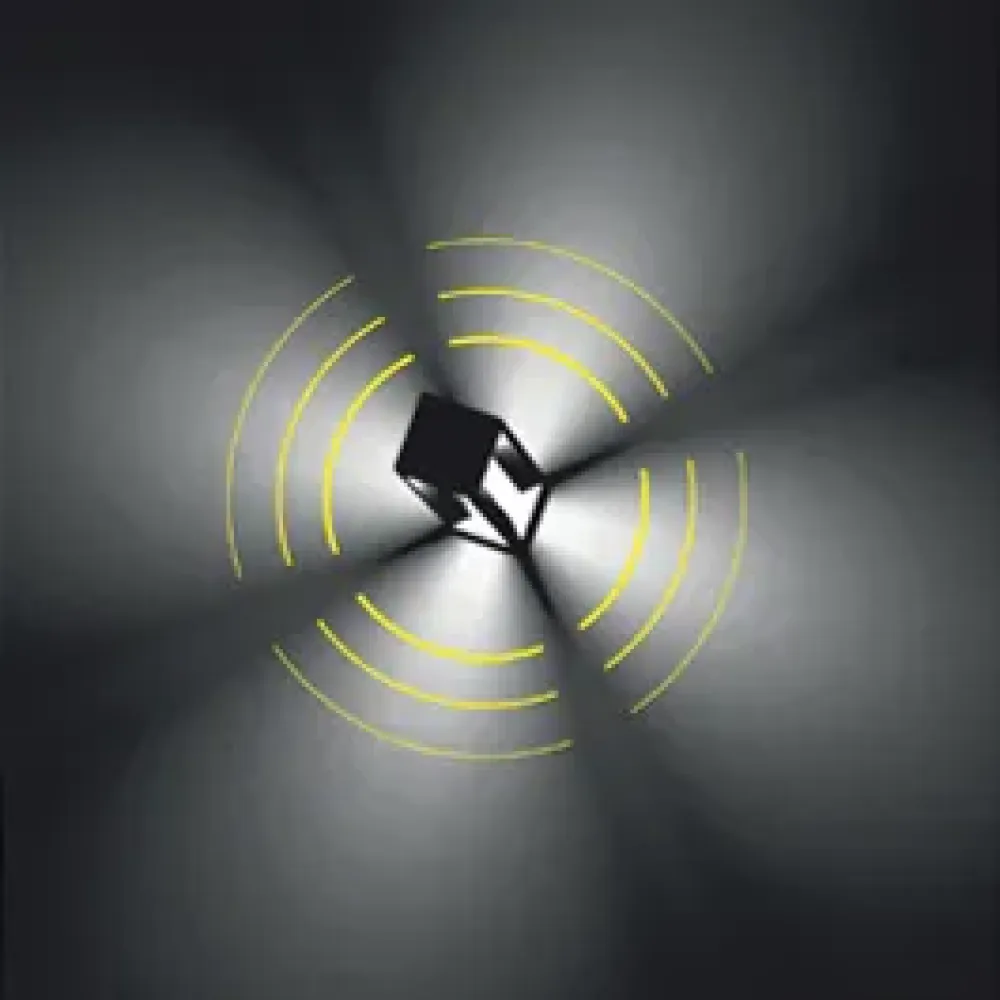

| Beam opening | downward/diffuse |
Data sheets
