Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006

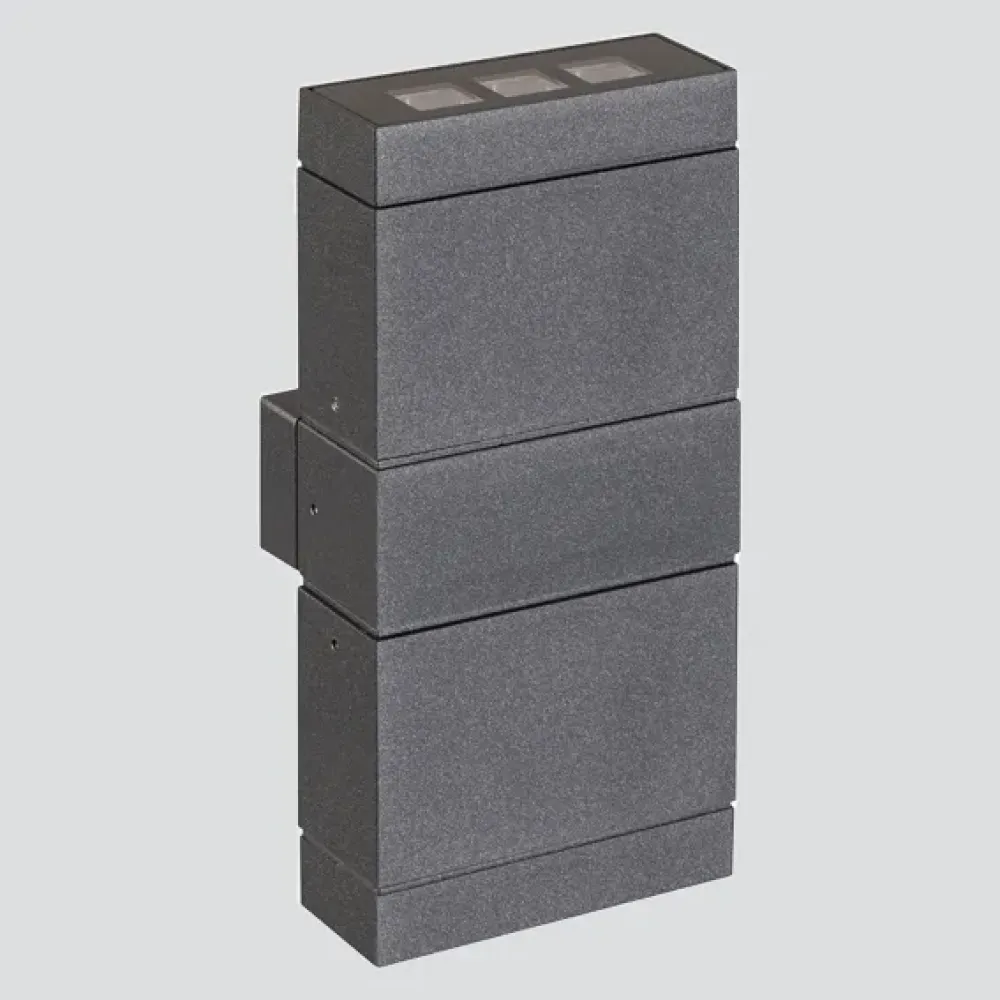

About the product
A simple parallelepiped, with a minimal line and compact dimensions, capable of being wallwashers, vertically or horizontally, oriented according to the light requirements. It also offers the possibility of combining it in a modular system, which can be combined in both planar directions, to form a different product with infinite capabilities. A system, therefore, more than a single volume, capable of evolving into multiple geometric and optical variants and thus supporting the multiple and diversified needs of the lighting designer.
Product specifications
| Assembly | wall installation |
| Source flux | 1800 lm |
| Fixture source | 1480 lm |
| Apparent efficiency | 82.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 4000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED |
| Absorbed power | 16 W |
| Power module LED | 12 W |
| Protection | IP65/IK07 |
| Body | die-cast aluminium |
| Screen | tempered extra-clear glass 4mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

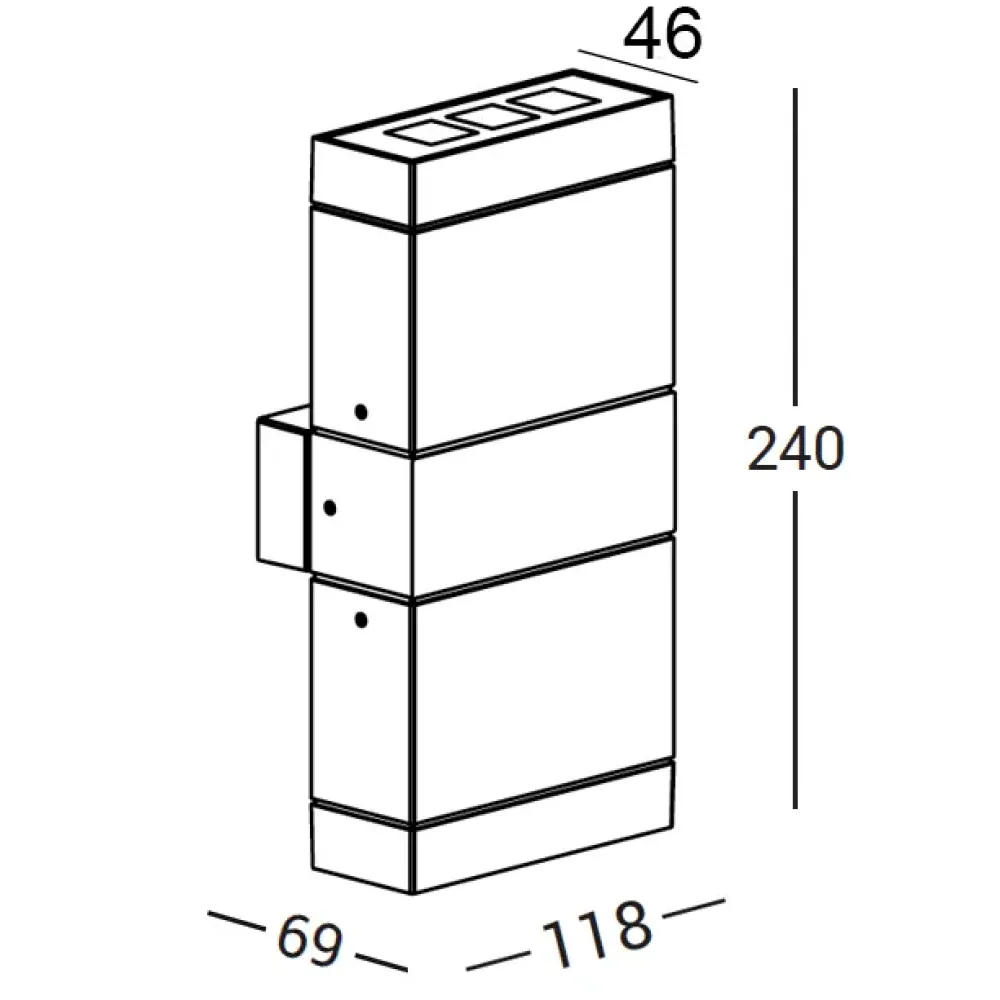

| Size | H 240 x L 118 x W 69 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 700 mA |
| Control | on/off |
| Specific wiring | included |

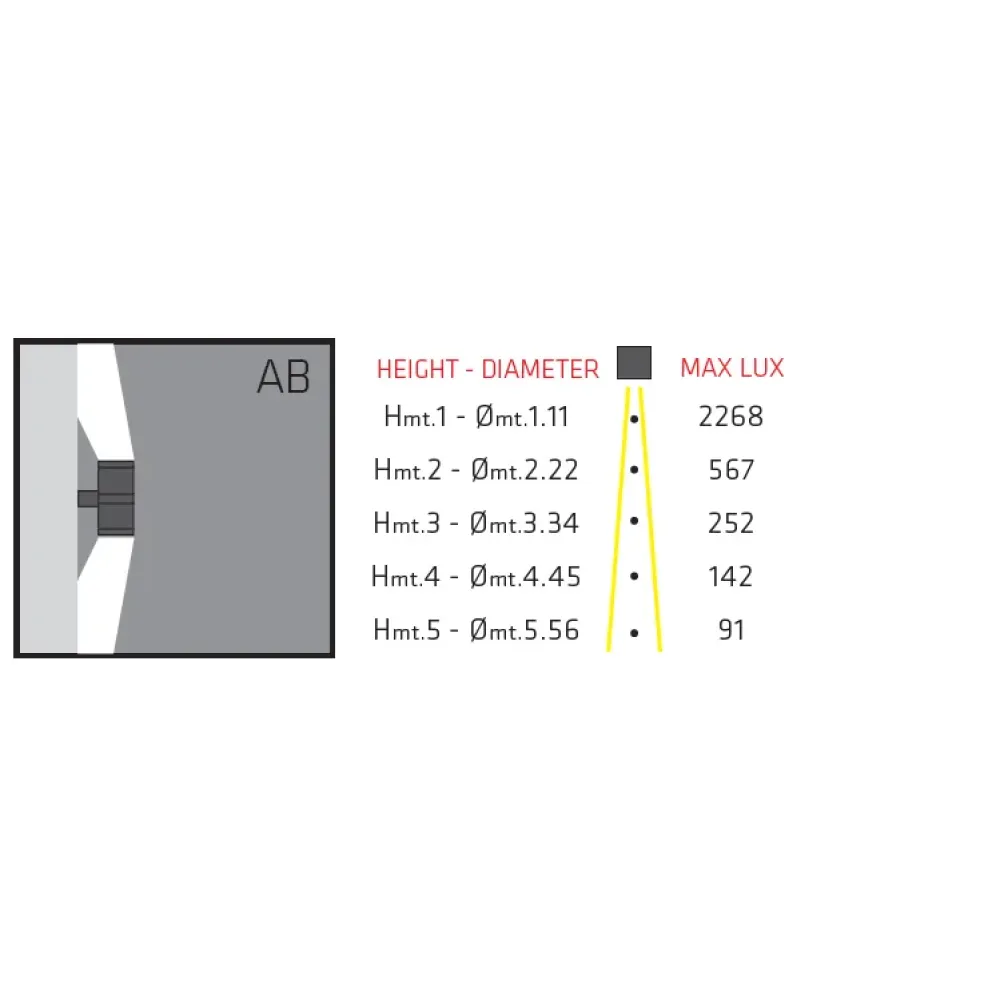

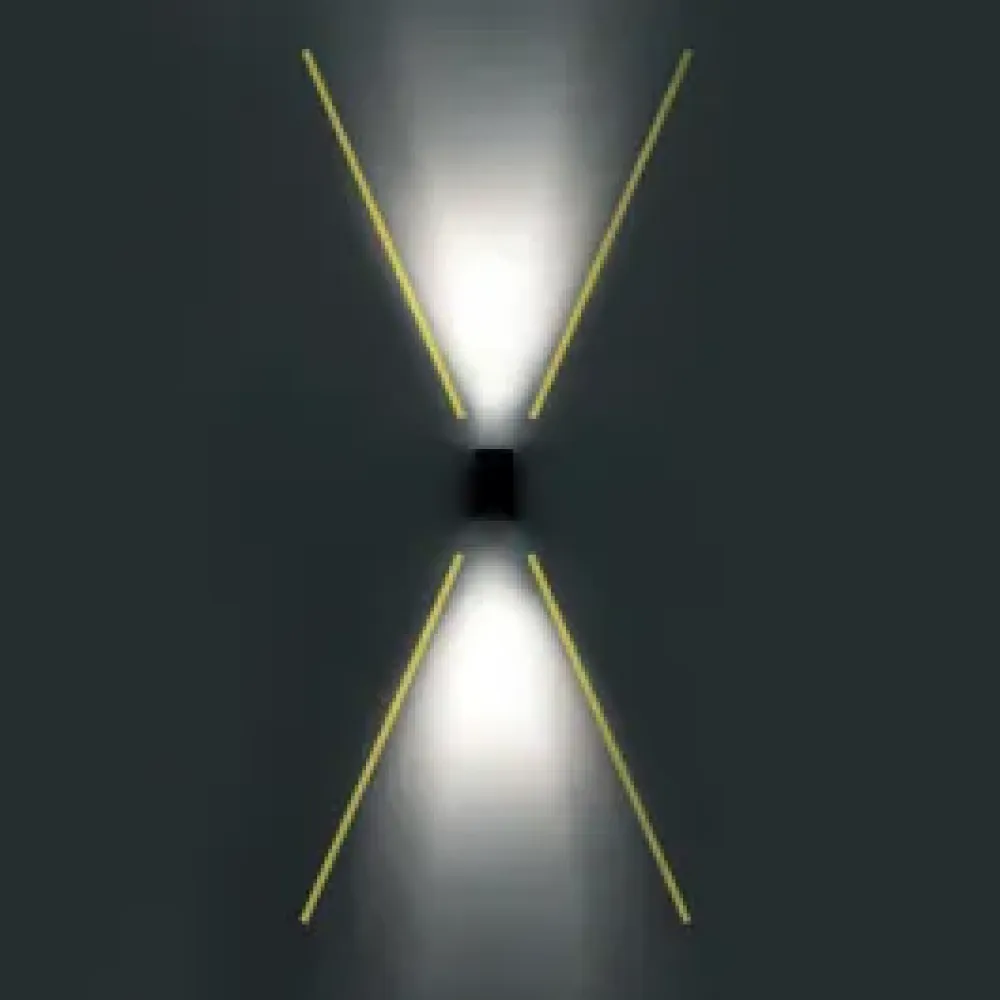

| Beam opening | dual/asymmetric |
