Item ID: 42316.13051

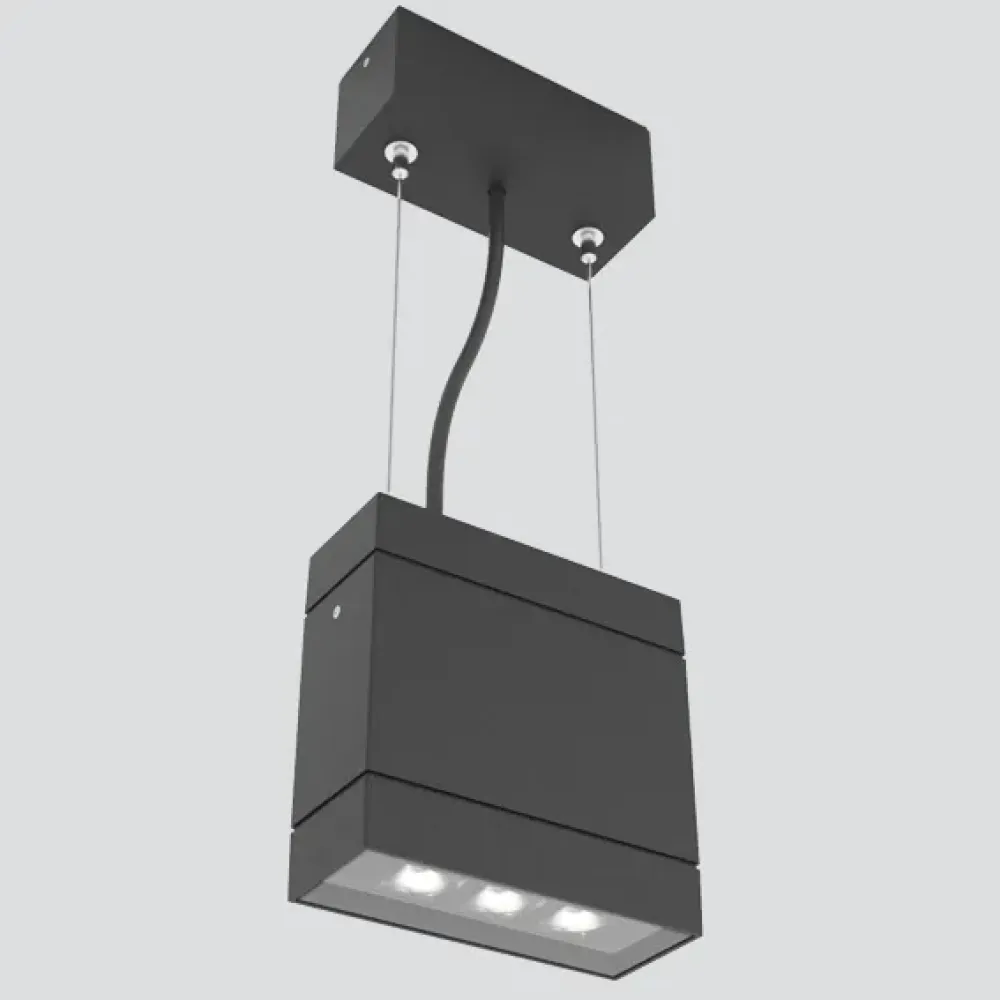

Modo Ceiling 601S1/HP70NB-Ceiling Lamps - Ceiling module with bowden cables
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product
Ceiling lighting fixture with minimal lines and compact dimensions. Modo offers the possibility of combining it in a modular system, which can be combined in both planar directions, to form a different product with infinite capabilities. A system, therefore, more than a single volume, capable of evolving into multiple geometric and optical variants and thus supporting the multiple and diversified needs of the lighting designer.
Product specifications
| Assembly | ceiling installation |
| Source flux | 750 lm |
| Fixture source | 628lm |
| Apparent efficiency | 84.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 2700K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED |
| Absorbed power | 8 W |
| Power module LED | 6 W |
| Protection | IP65/IK07 |
| Body | die-cast aluminium |
| Screen | tempered extra-clear glass 4mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

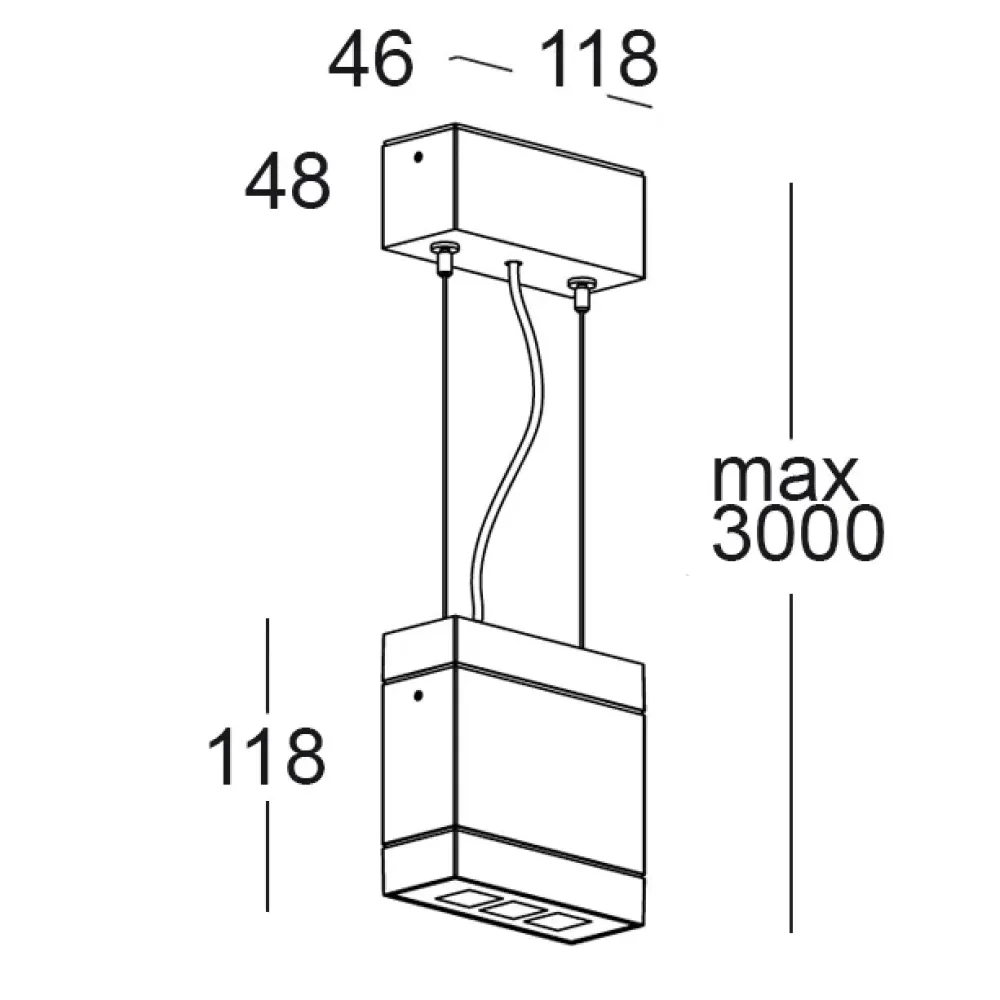

| Size | H 118 x L 118 x W 46 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 700 mA |
| Control | on/off |
| Specific wiring | included |
| Beam opening | single/12° |
