Item ID: 40590.13051
Modo Bollard 601F2/NP70WB-Small Poles - Bollard Horizontal Single Emission H. 1000
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product

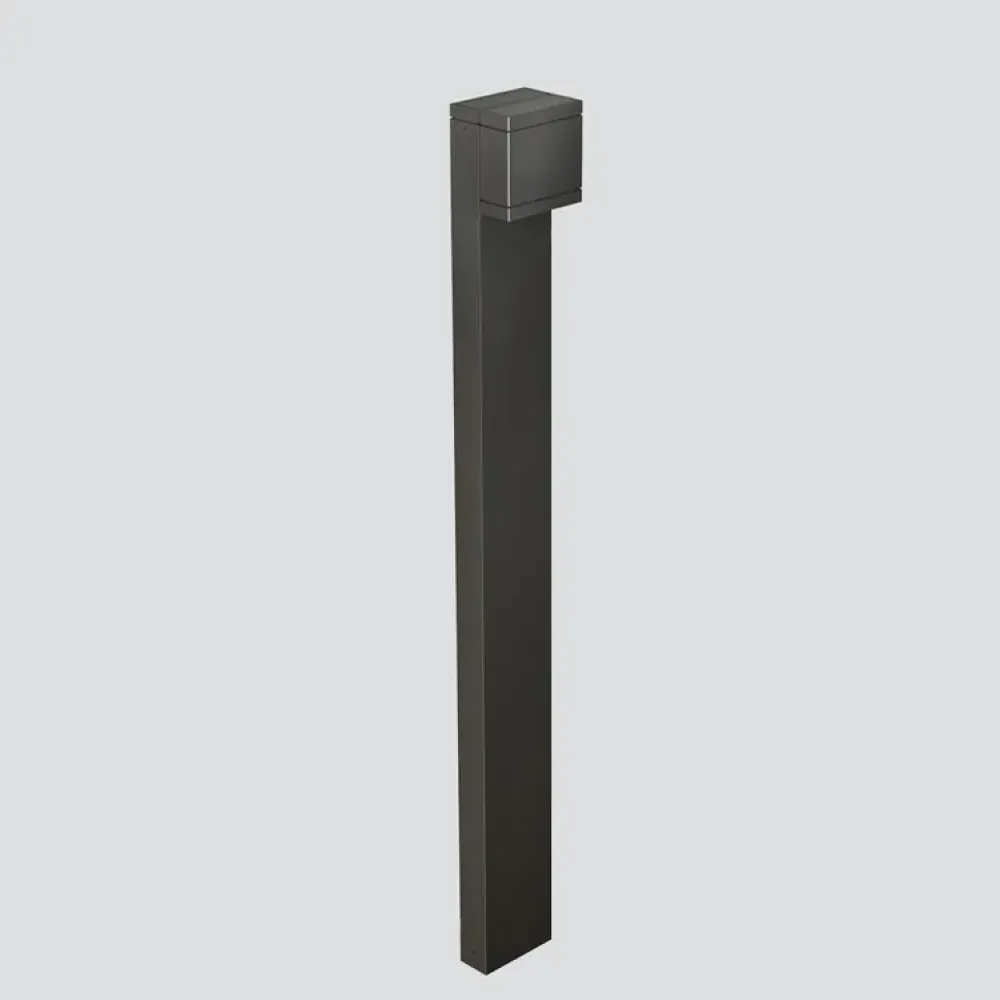

A simple parallelepiped, with a minimal line and compact dimensions for a bollard system oriented according to the light requirements. Luminaire capable of evolving into multiple geometric and optical variants and thus supporting the multiple and diversified needs of the lighting designer.
Product specifications

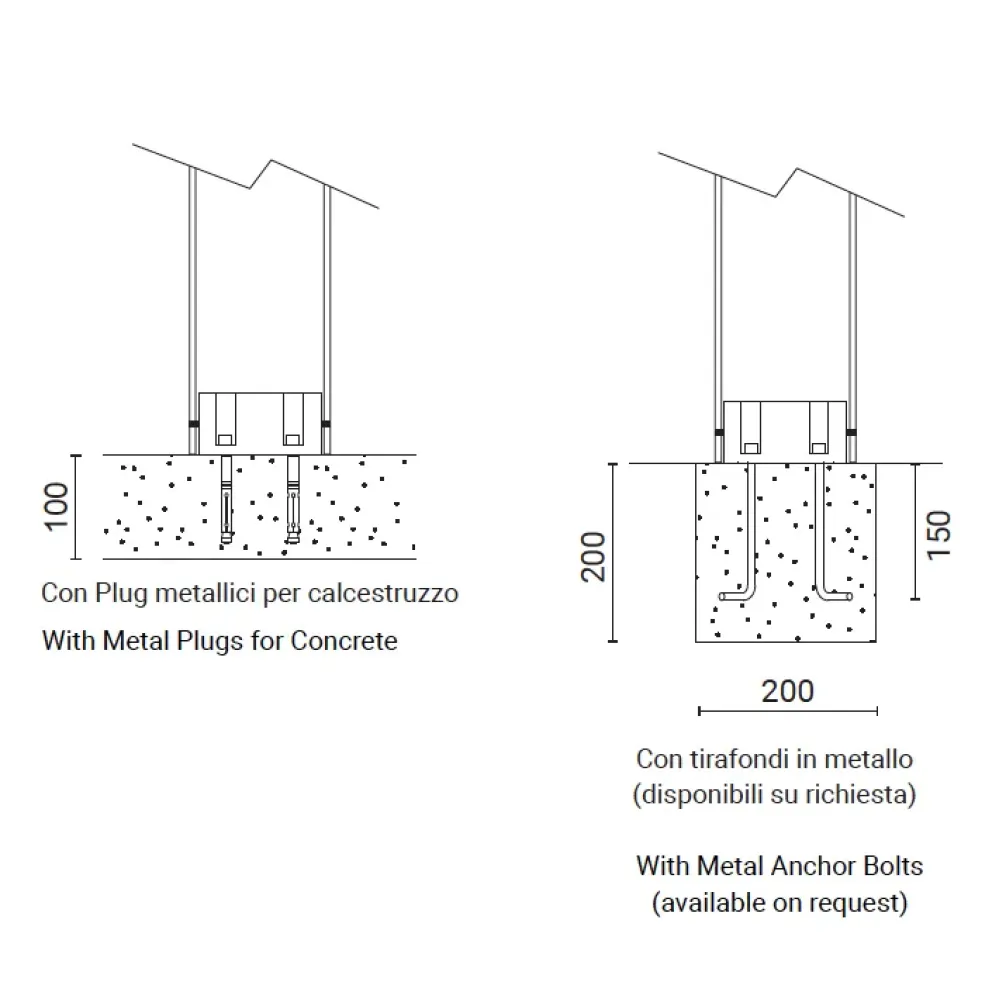

| Assembly | ground installation |
| Source flux | 900 lm |
| Fixture source | 374lm |
| Apparent efficiency | 42.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 4000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED |
| Absorbed power | 8 W |
| Power module LED | 6 W |
| Protection | IP65/IK07 |
| Body | die-cast aluminium |
| Screen | tempered extra-clear glass 4mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

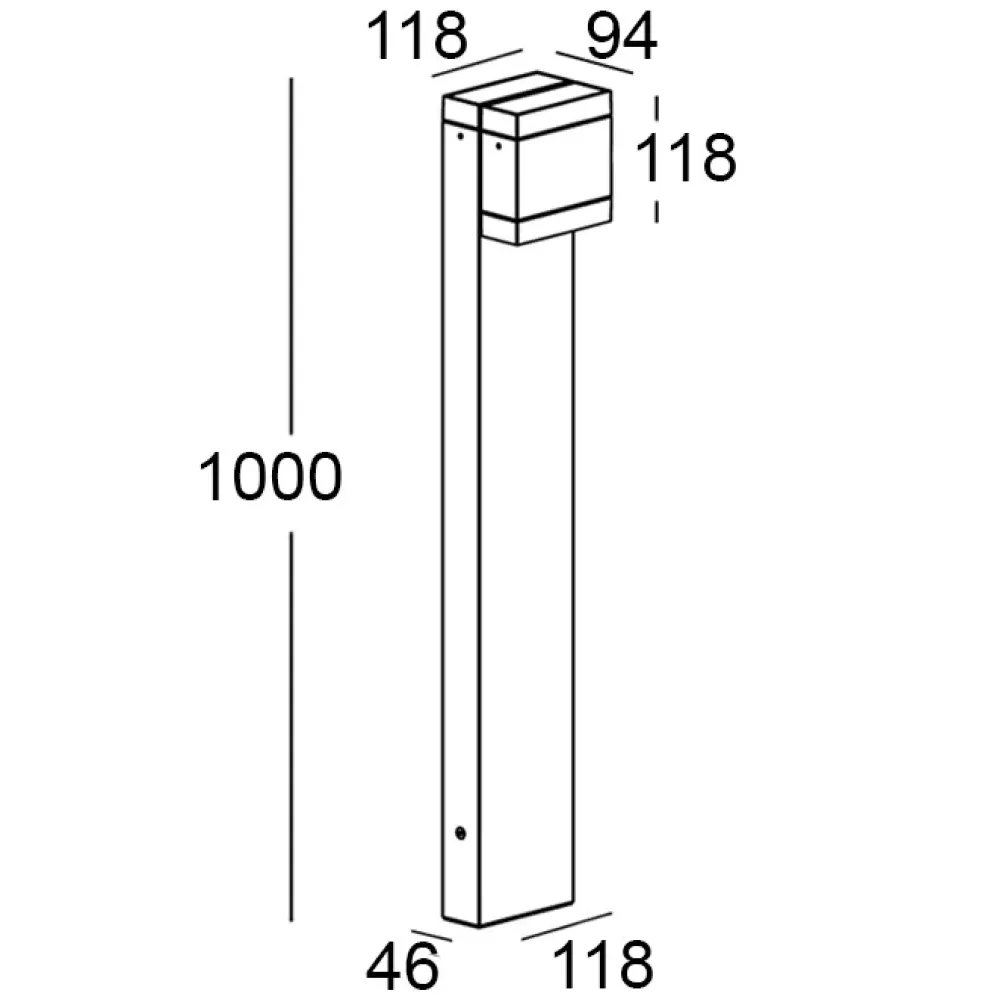

| Size | H 1000 x L 118 x W 94 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 700 mA |
| Control | on/off |
| Specific wiring | included |

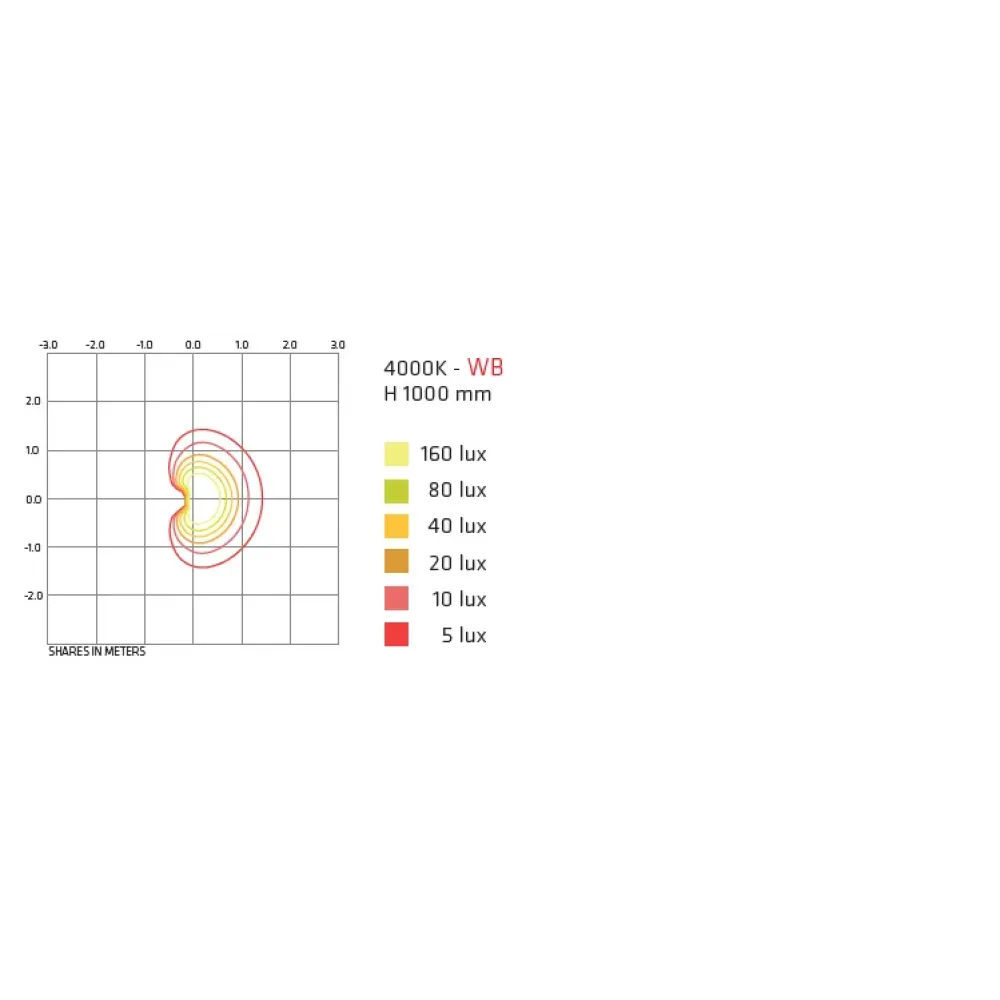

| Beam opening | single/50° |
