Item ID: 13873

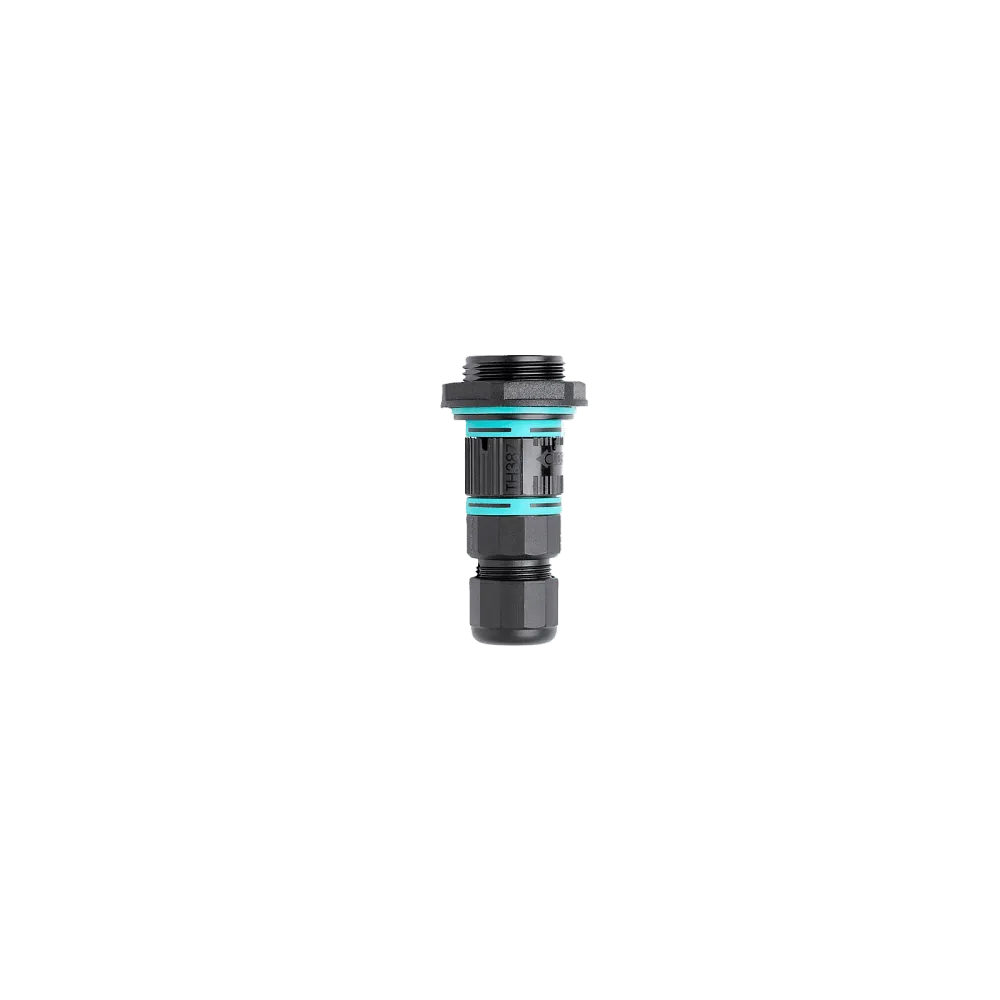

Mini Panel Circular Connector M25, 5p, Plug, Screw, 0.5-1.5mm2, IP66/IP68
About the product
5-Pole M25 Mini Panel Circular Connector TH387 with Screw-Lock from Techno, Italy
Version: Panel-Connector Plug (male), wire protection
Cable Connection: Screw
Locking-System: Screw
Counterpart: THB.387.B5A / THB.387.B5A.L
Also available as a set with matching female connector THB.387.E5A.L.R
Further, not published products and versions from Techno on request.
Technical data
No of Poles: 5
IP Rate: IP66/IP68
Thread: M25
For max. panel thickness: 7 mm
Cross section: 0.5 – 1.5 mm2
Nominal Voltage: 500V AC
Nominal Current: 17.5 A AC/DC
Temperature range: -40°C…+125°C
Manufacturer: Techno
Errors and Technical changes reserved
Product specifications
| Product | Cable connector male |
| Pollution degree | 2 |
| Manufacturer | Techno |
| Certificates | CE |
| IP protection | IP66, IP68 |
| Connection | Screw terminal |
| Wire section | 0.5-1.5 mm² |
| Nominal voltage (V) | 500 V |
| Nominal current | 17.5 A |
| Pole | 5 |
| Temperature range | -40°C to 125°C |
