About the product

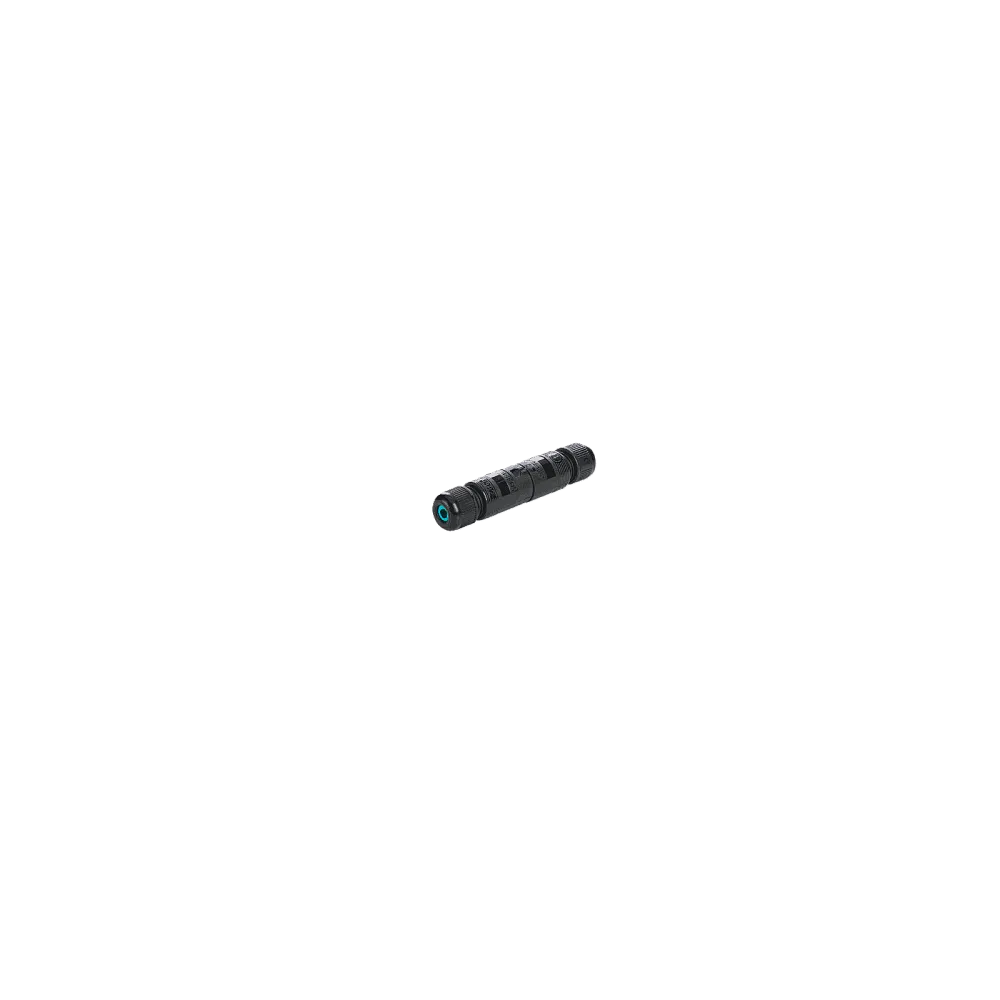

Mini-Circular Connector THB 382 from Techno
Version: Male
Conncetion: Screw
Lock: Push-Pull
Further, not published products and versions from Techno on request.
Technical data
- No of Poles: 3
- IP Rating: IP40
- Cable diameter: Ø 7.0 – 9.5 mm
- Dimensions:
Size of connector: Ø 19.0 x 53.0 mm
connected with counterpart: Ø 19.0 x 93.0 mm - Wire cross section: 0.5 – 1.5 mm2
- Nominal Voltage: 400 V AC
- Nominal Current: 16 A
- Temperature range: -40°C…+125°C
- Manufacturer: Techno
Technical changes reserved
Product specifications
| Product | Cable connector male |
| Manufacturer | Techno |
| Certificates | IEC |
| IP protection | IP40 |
| Connection | Screw terminal |
| Wire section | 0.5-1.5 mm² |
| Cable diameter | 7-9.5 mm |
| Nominal voltage (V) | 400 V |
| Nominal current | 16 A |
| Pole | 3 |
| Temperature range | -40°C to 125°C |
