Item ID: 13879

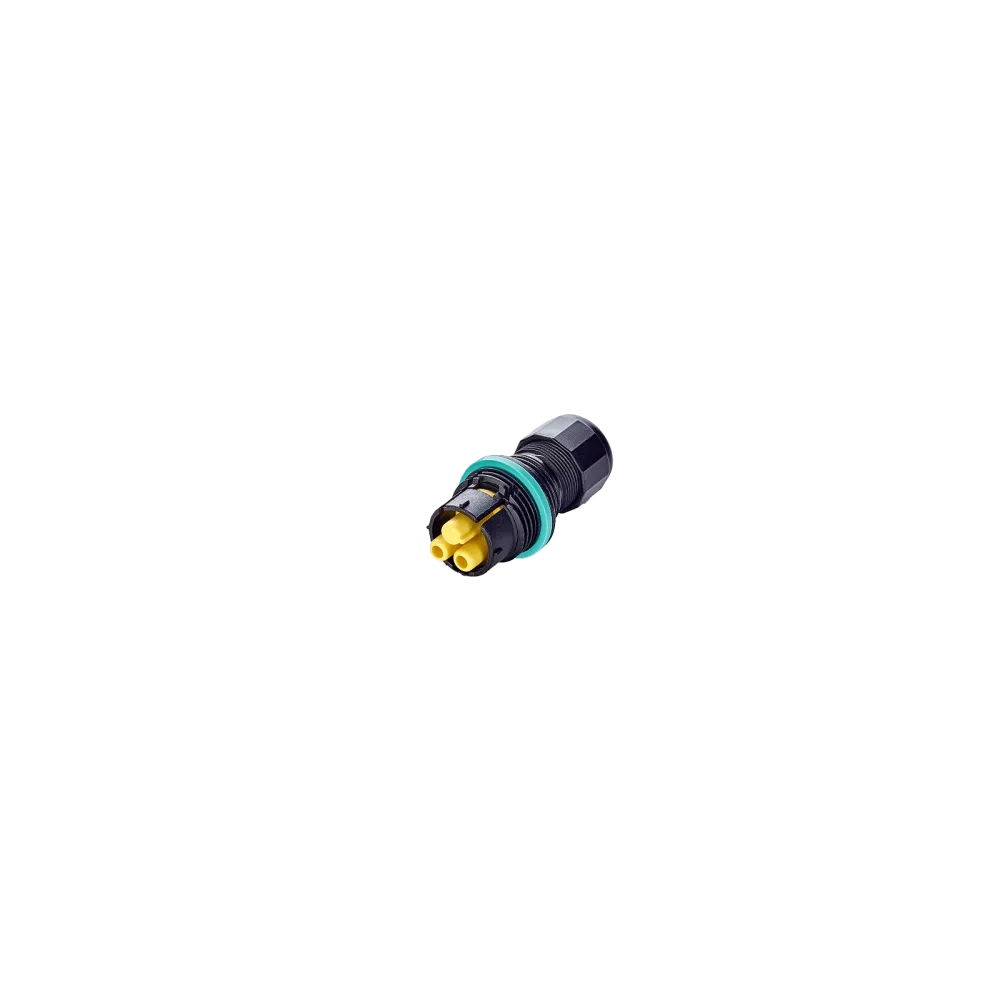

Mini-Circular Connector, 2p, Socket, Screw, 0.5-2.5mm2, D7.0-12.0mm, IP66/IP68
About the product
2-Pole Mini-Circular Connector THB 384 with Screw-Lock from Techno, Italy
Version: Socket (female)
Conncetion: Screw
Lock: Screw-Lock

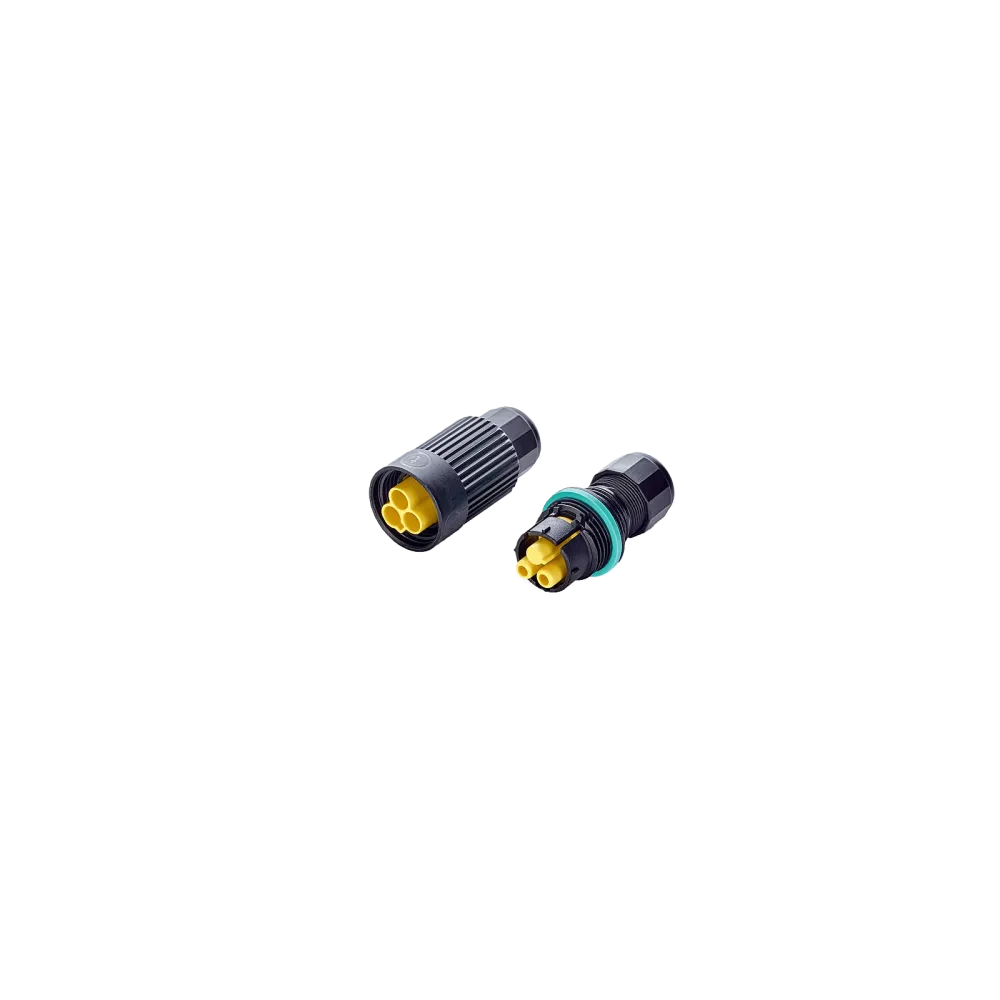

Counterpart: THB.384.P2A
Further, not published products and versions from Techno on request.
Technical data
No of Poles: 2
IP Rating: IP66/IP68
Cable diameter: Ø 7.0 – 12.0 mm
Dimensions:
Size of connector: Ø 26.5 x 55.0 mm

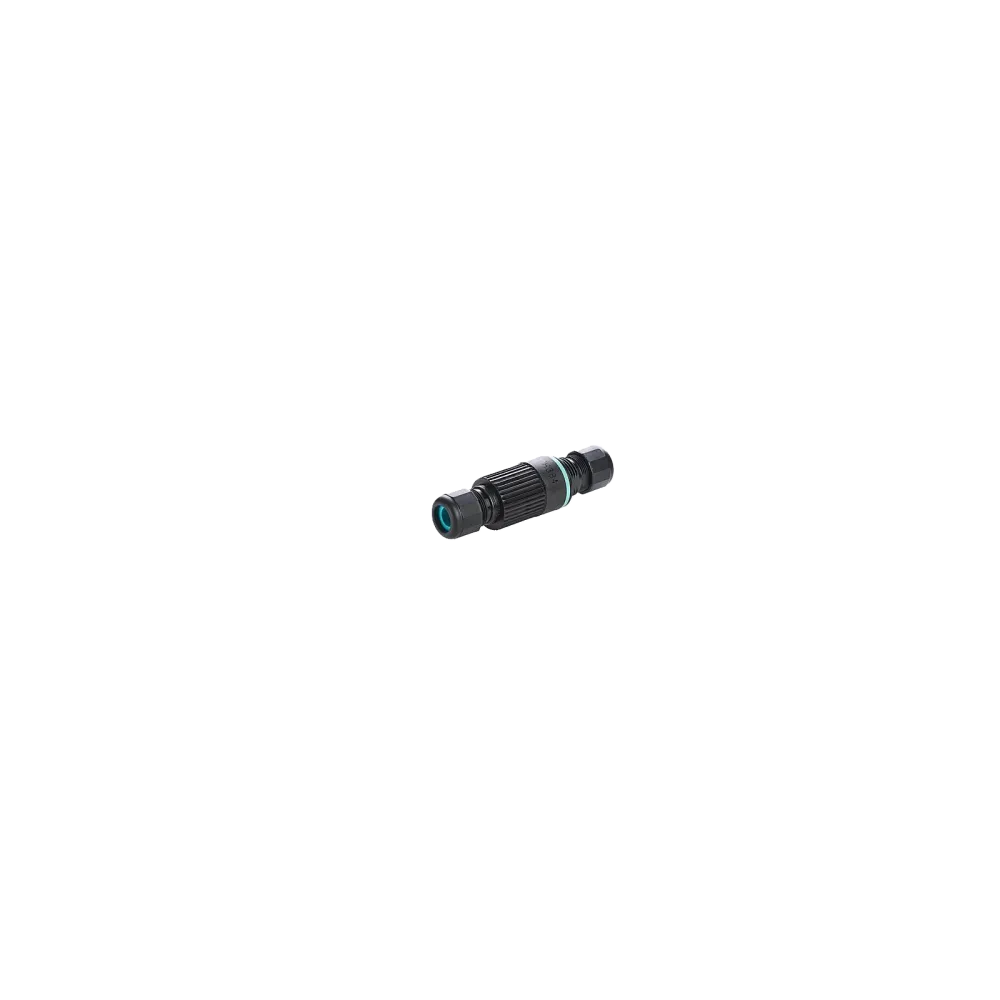

connected with counterpart: Ø 27.0 x 95.0 mm
Wire cross section: 0.5 – 2.5 mm2
Nominal Voltage: 400 V AC
Nominal Current: 16 A
Temperature range: -40°C…+125°C
Manufacturer: Techno
Technical changes reserved
Product specifications
| Product | Cable connector female |
| Manufacturer | Techno |
| Certificates | IEC |
| IP protection | IP66, IP68 |
| Connection | Screw terminal |
| Wire section | 0.5-2.5 mm² |
| Cable diameter | 7-12 mm |
| Nominal voltage (V) | 400 V |
| Nominal current | 16 A |
| Pole | 2 |
| Temperature range | -40°C to 125°C |
