Item ID: 42058.13058
Matrix Mini Recessed 2813R/NPRCNB-Ground Recessed - Recessed with Lens L. 1030 - Remote driver 24Vdc
Color
Grey RAL 9006
About the product

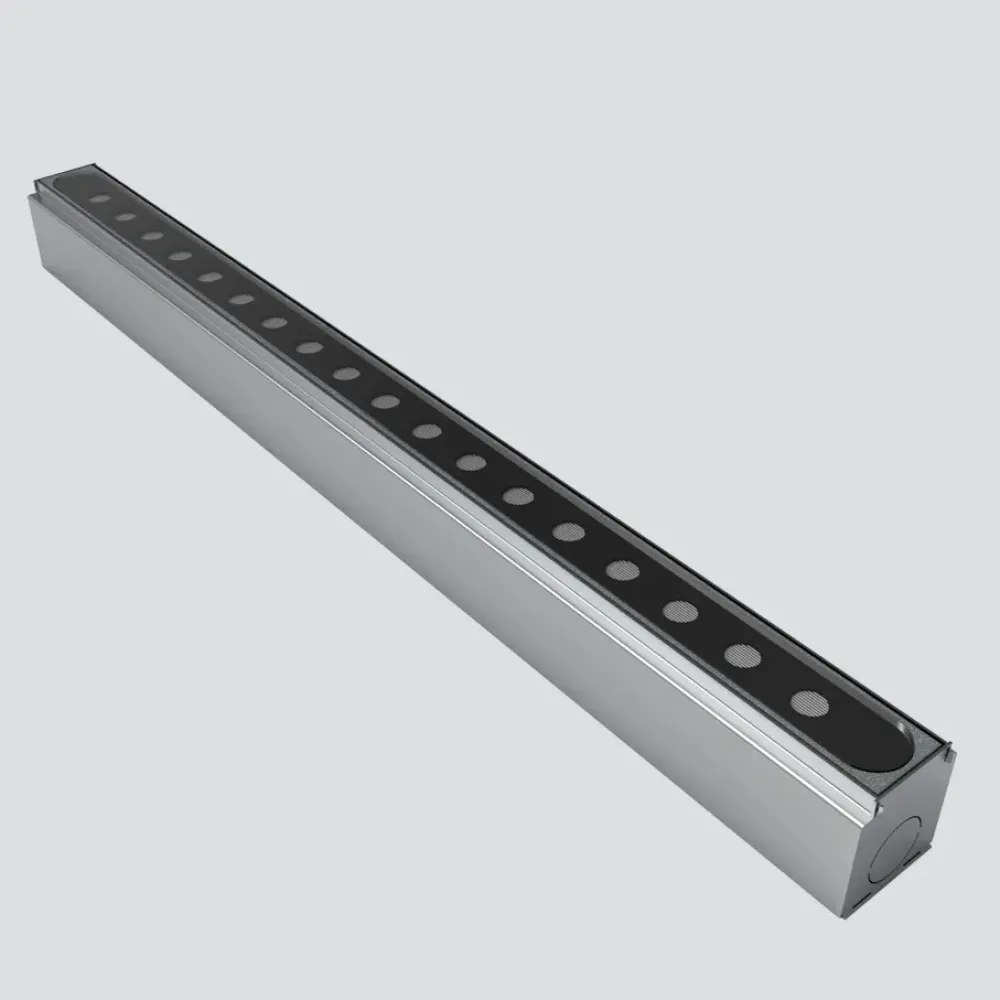

Linear floor-mounted recessed luminaire. Equipped with secondary optics for different types of light distribution, this Matrix version is particularly suited for the oblique illumination of building façades, to highlight their texture or accentuate the architectural details of historical buildings. Dali dimmable on request with extra charge.
Product specifications
| Assembly | inground recessed |
| Source flux | 1940 lm |
| Fixture source | 1678 lm |
| Apparent efficiency | 86.00% |
| Insulation class | class III |
| Operating Ta | 50° |
| CCT LED | 4000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Optical distribution | silk-printed clear glass LTF>90° |
| Source | LED |
| Absorbed power | 16 W |
| Control | remote DALI dimmable |
| Protection | IP67/IK08 |
| Body | die-cast aluminium |
| Box | die-cast aluminium |
| Frame | all glass |
| Screen | tempered extra-clear glass 4mm with silk-screen printing |
| Seals | gasket neutral cross-linking silicone glueglass Tx -50/+250°C UV-resist |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

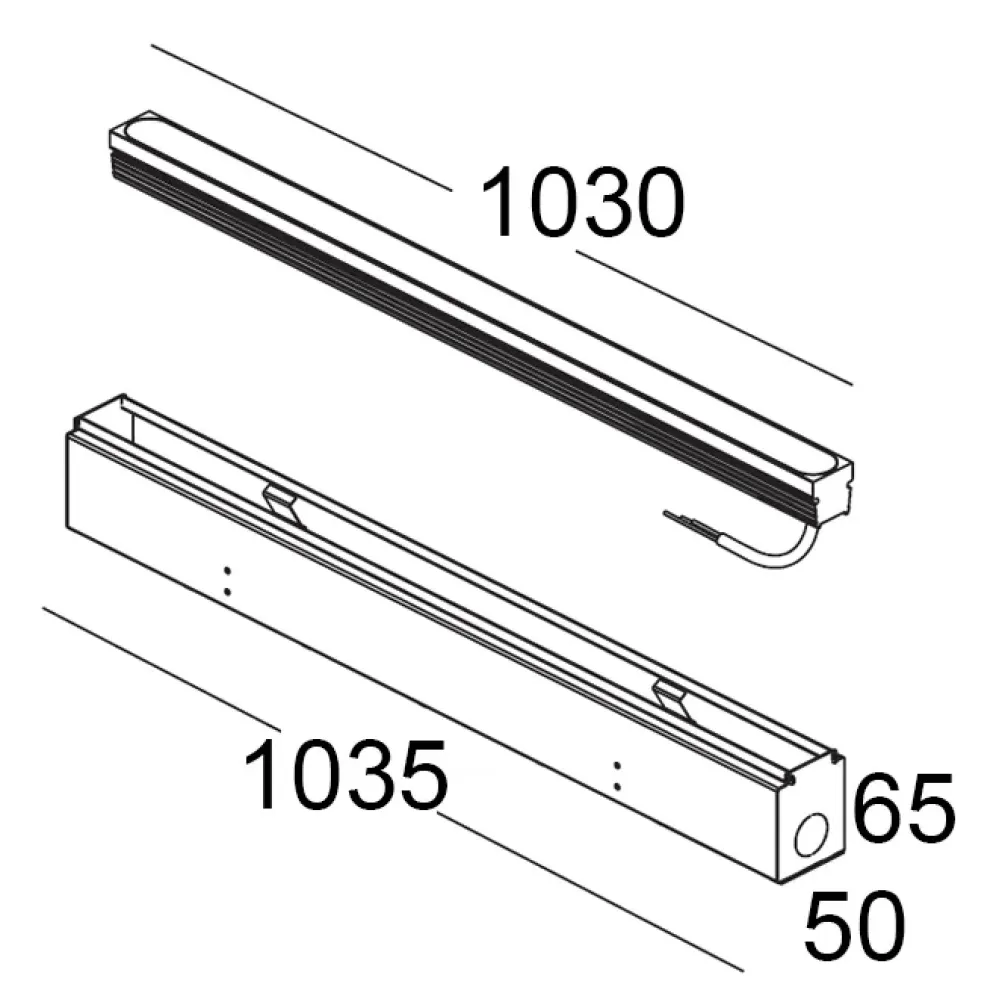

| Size | H 60 x L 1030 x W 50 mm INC.1035 |
| Power supply | 24 VDC |
| Driver | remote driver 24VDC not included |
| Beam opening | spot/20° |
