Item ID: 41858.13051
Matrix Floodlight 2803P/HP50.NB-Floodlights - Wallwasher with Lens L. 1146
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product

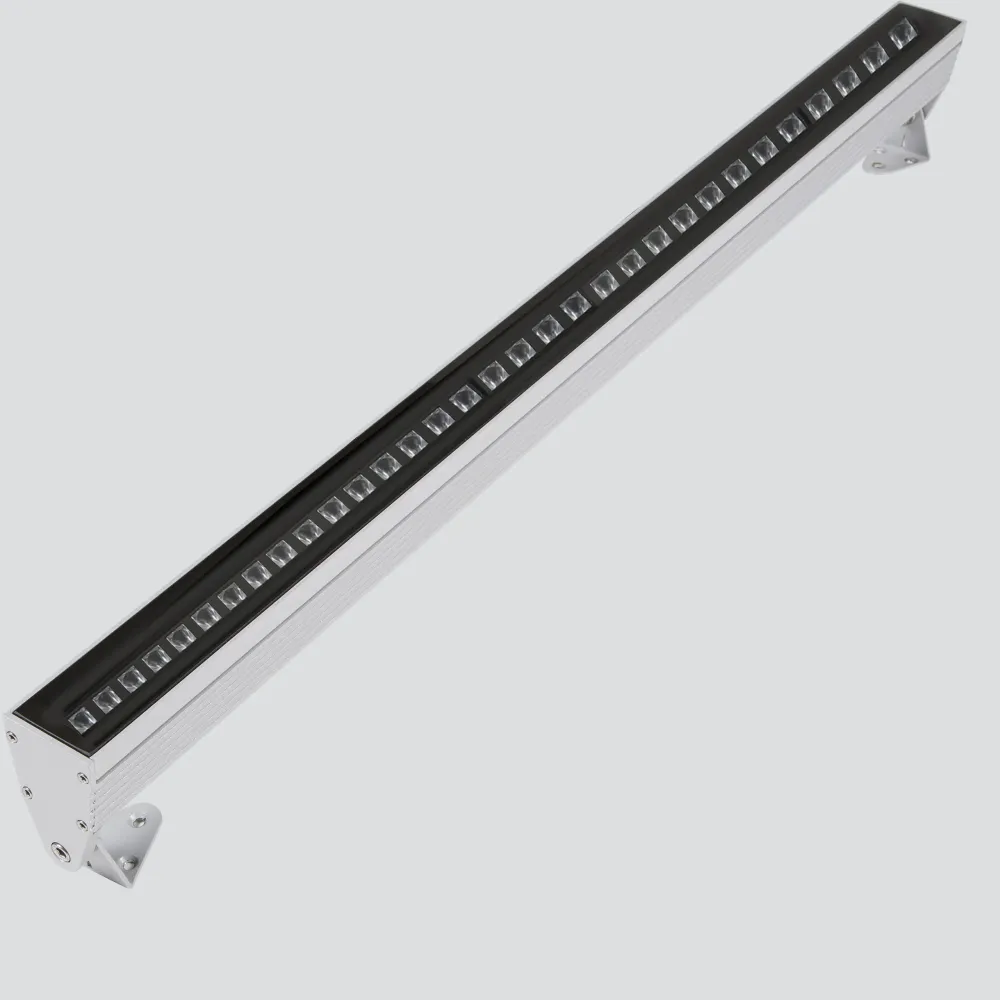

Adjustable linear luminaire, suitable for wall, ceiling or ground installation as a stand-alone floodlight. Equipped with secondary optics for different types of light distribution, this version of the Matrix line is particularly suited for the oblique illumination of building façades, to highlight their texture or accentuate the architectural details of historical buildings. RGBW also available.
Product specifications
| Assembly | wall, ceiling, stand installation |
| Source flux | 5519 lm |
| Fixture source | 4636 lm |
| Apparent efficiency | 84.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 2700K |
| CRI | 80 CRI |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED |
| Absorbed power | 54 W |
| Power module LED | 52 W |
| Protection | IP67/IK07 |
| Body | extruded aluminium |
| Screen | tempered extra-clear glass 5mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

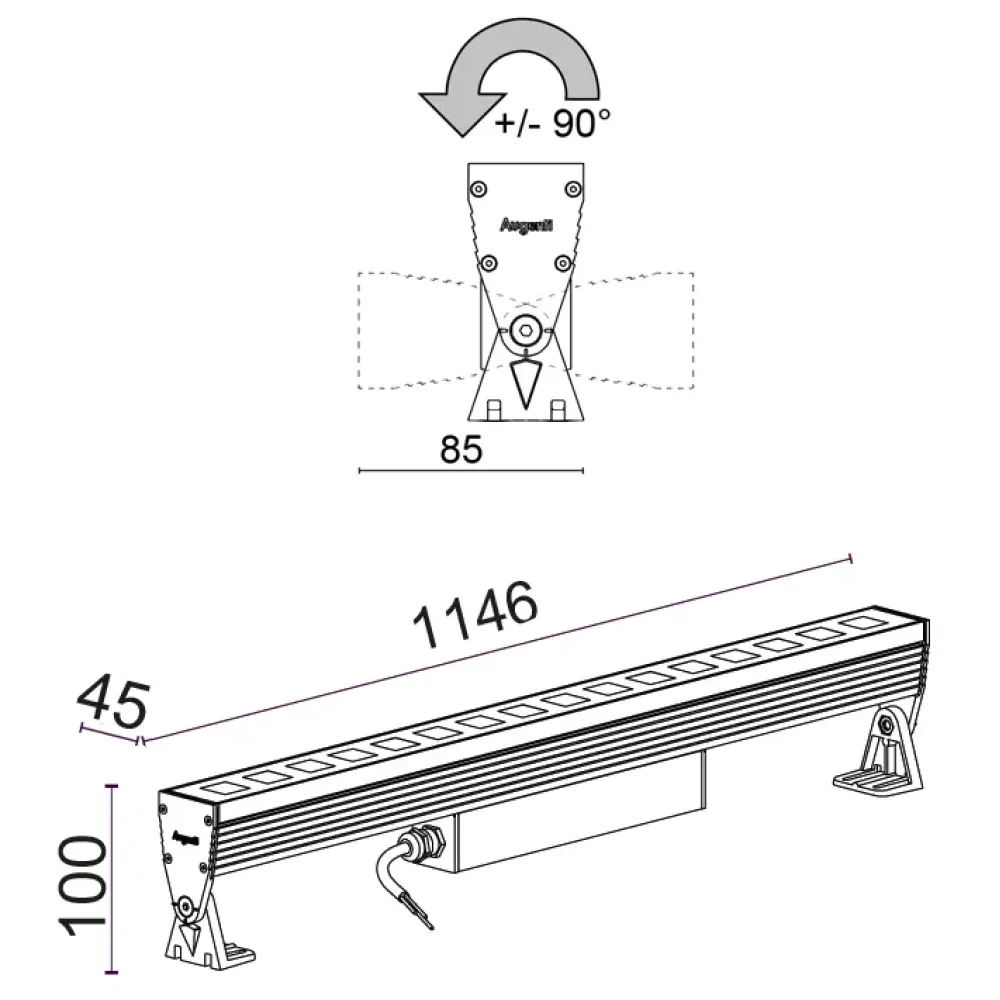

| Size | H 100 x L 1146 x W 45 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 500 mA |
| Control | on/off |
| Specific wiring | included |
| Beam opening | adjustable floodlight spot/12° |
