Item ID: 15018.4955.2290.1053.1054.2291

IN-Lynea 300 230 V 50/60 Hz - insulation class I

Delivery at your place between Jun 10 and Jun 24 2025
Add to cart
Product
IN-Lynea 300
Finish
Black anodized
Power/Control
On/Off
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics
10°
30°
50°
12° x 35°
35° x 12°
Wide wall washer
Narrow wall washer
Wide asymmetrical
80°

About the product

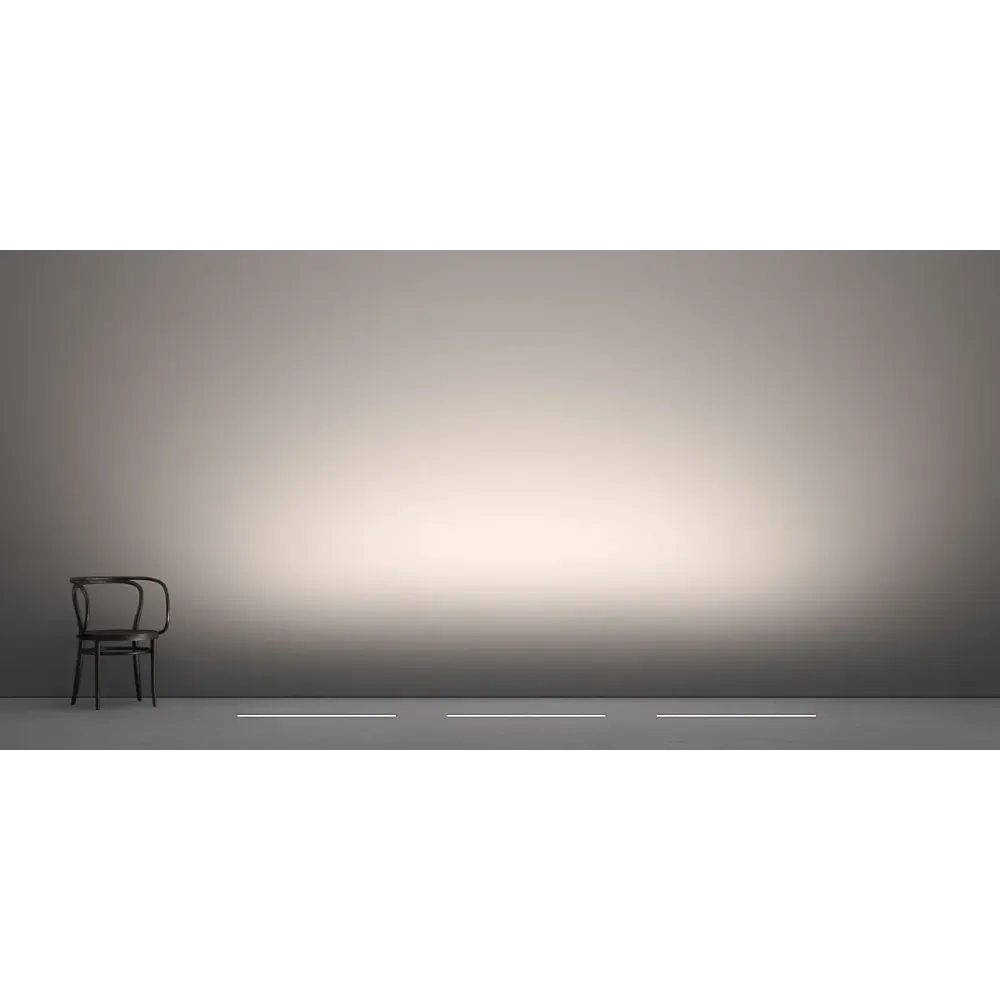

Grazing and wall washing.Specification-grade modular system featuring high power LEDs.Modules lengths of 300, 600, 900 and 1200 mm.Nine high-precision beam angles for striation-free lighting even at very close distance from the wall.Excellent uniformity.Wide choice of outputs, colour temperatures, colour-mixings, optics and control systems to enhance volumes and details.Wide choice of outputs, colour temperatures, colour-mixings.Power supply unit on board.Control through DALI, DMX-RDM or remote gear.

Product specifications

IP rating IP66/67
Management interface on/off
Colour temperature/CCT 2200 K, 3000 K, 4000 K, 5700 K
Beam angle 10°, 30°, 50°, 12°x35°, 35°x12°, wide wall washer, narrow wall washer, wide asymmetrical, 80°
Operating temperature from -30°C to +50°C
Storage temperature -50°C to 80°C
Mounting ground-recessed
Finishing black anodized
Construction extruded aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, nickel-plated brass cable gland
Power supply On-board power supply
Insulation class insulation class I
Voltage 230 V
IK rating 10
Source type High power LED
Source lifespan >60 000 h L70 B10 at 25 °C
Source flux 2000 lm
Light efficiency 155.9 lm/W
Delivered flux 1515 lm
Delivered efficiency 95.8 lm/W
Input power 17 W
Net weight 1.8 kg
