Item ID: 41065.13051

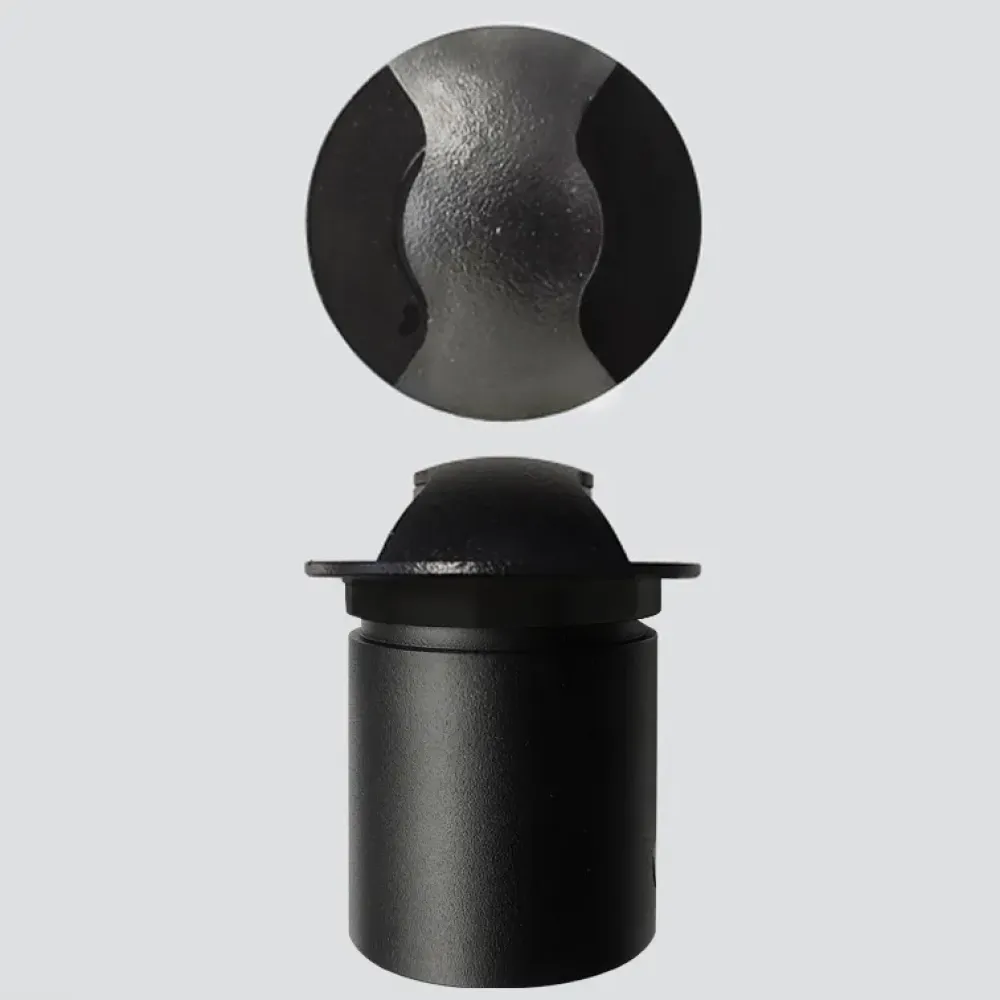

Cut 70 Wall Recessed 4070R/WRRC2L-Wall Recessed - Recessed 2 windows Ø70 - Remote driver 24Vdc
About the product
Cut is the new line of steplight with grazing light born to create suggestive light and shadow effects, available in diameters of 45 mm and 70 mm. Design to give life to residential and public walk ways, also available with dedicated wall and ceiling version , making itself almost invisible but keeping light and atmosphere created the main characters of the scene. With one, two or four slots , Cut becomes a perfect fixture for soft or strong effects, for single or series installations. IP67 degree protection combined with AcquaStop system for anti-condensation protection make Cut a reliable and safe product, to inspire light emotions.
Product specifications
| Assembly | inground or wall recessed |
| Source | LED |
| Source flux | 690 lm |
| Fixture source | 77 lm |
| Apparent efficiency | 11.00% |
| Insulation class | class III |
| Operating Ta | -20°C to +50°C |
| CCT LED | 3000K |
| CRI | 80 CRI |
| MacAdam step | 3 |
| Optical distribution | PMMA lens |
| Absorbed power | 6 W |
| Control | on/off |
| Protection | IP67/IK08 |
| Body | anticorodal aluminum 6000 series, high corrosion resistance |
| Box | polypropylene (PP) 30% fiber UV-stabilized GWT750 |
| Screen | transparent polycarbonate |
| Seals | Closed-cell EPDM rubber |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

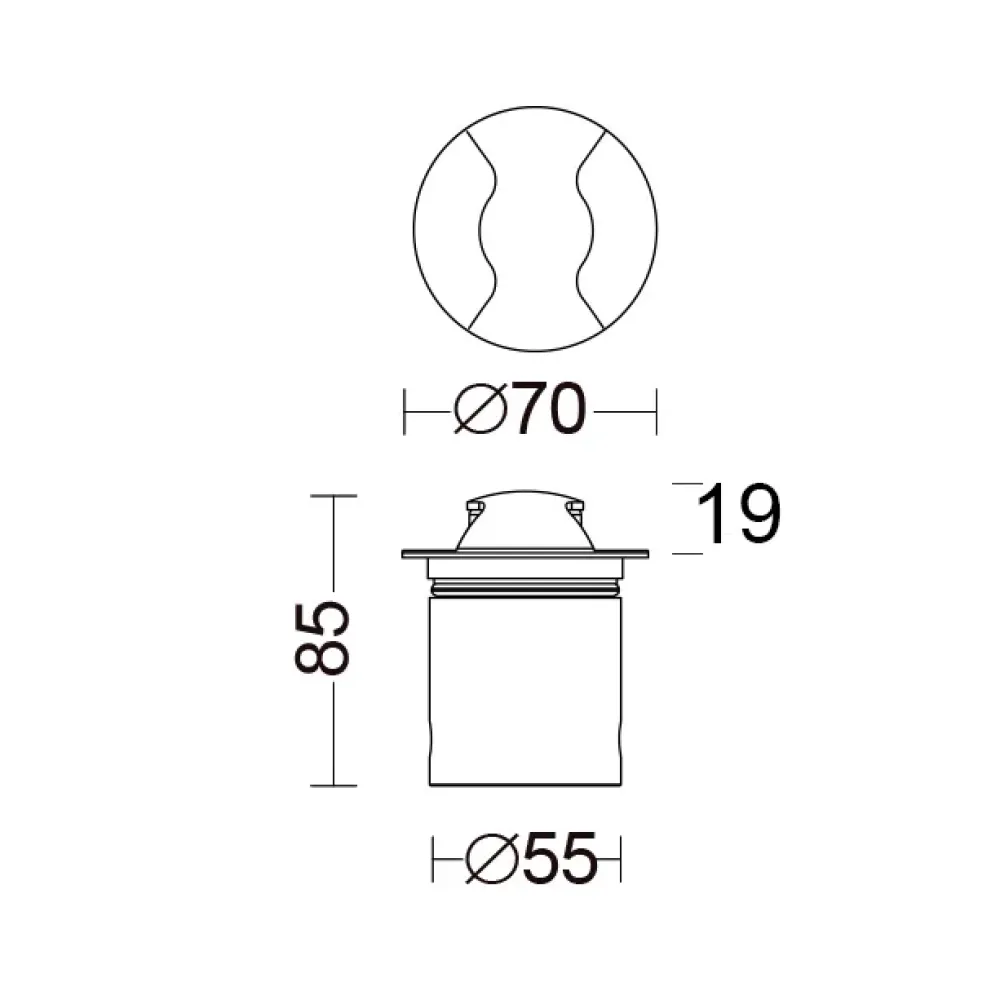

| Size | H 85 x Ø 70 mm |
| Power supply | 24 VDC |
| Driver | remote driver not included |
| Driver current | 24 mA |
| Beam opening | diffused 2 windows |
