About the product

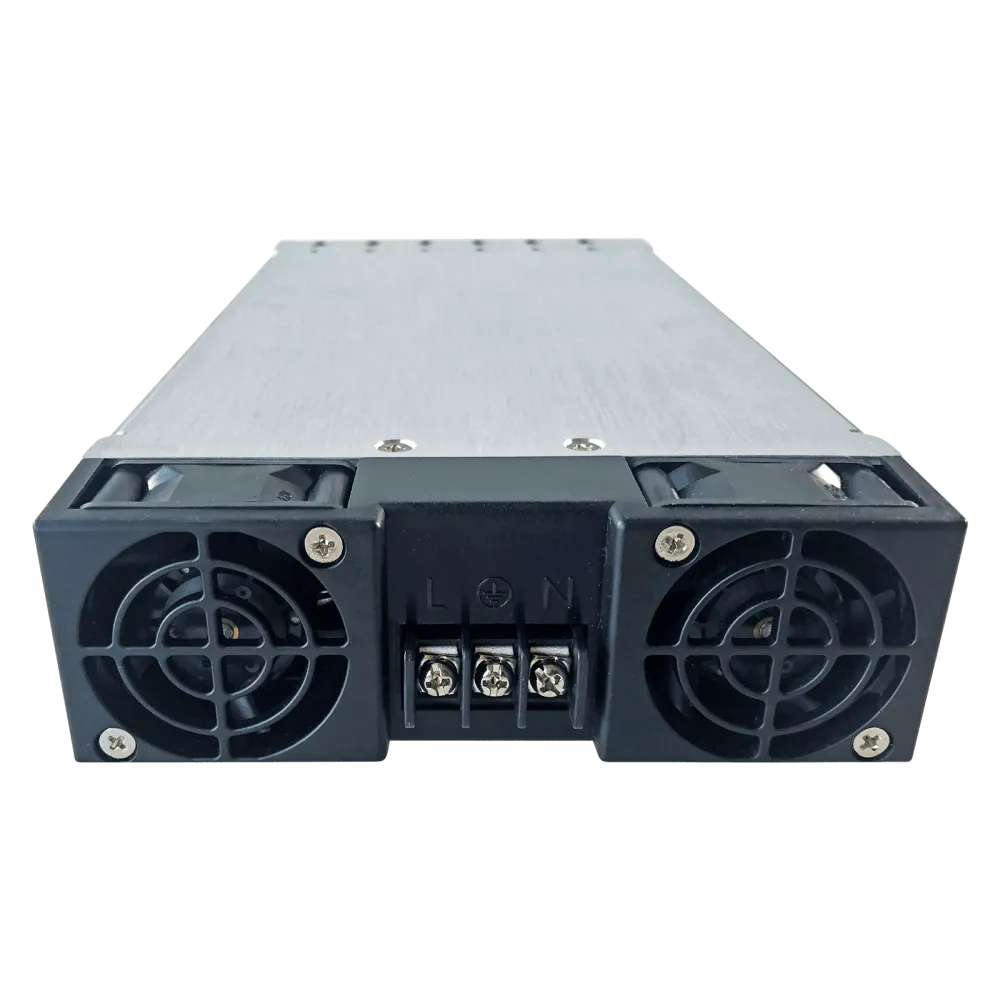

CX18S from Excelsys is a new, intelligent, modular power supply series with ITE/AV approval for up to 1800 watts output power.
CoolX1800 can be equipped with six CoolMods and offers up to 12 isolated DC outputs ranging from 1 to 58 V. The outputs can be connected in parallel for higher currents and in series for higher voltages (up to 232 VDC). Configuration can be done at the factory or by the user. Version with ITE/AV approval.
Highlights
- 93% efficiency
- No fans, no noise, no vibrations
- 12V / 24W auxiliary output
- Certified up to 5000 metres
- MTBF > 400,000 hours
DC Module
Single Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA | 5 | 2.5 – 6.0 | 30 | 150 |
| CMB | 12 | 6.0 – 15.0 | 23.3 | 280 |
| CMC | 24 | 15.0 – 28.0 | 12.5 | 300 |
| CMD | 48 | 28.0 – 58.0 | 6.25 | 300 |
High Power Module (occupy 3 slots)
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CME | 24 | 22.8 – 25.2 | 37.5 | 900 |
| CMF | 48 | 45.6 – 50.4 | 18.75 | 900 |
Dual Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMG V1 | 24 | 3.0 – 30.0 | 4.0 | 120 |
| V2 | 24 | 3.0 – 30.0 | 4.0 | 120 |
| CMH V1 | 5 | 3.0 – 6.0 | 10.0 | 60 |
| V2 | 24 | 3.0 – 30.0 | 4.0 | 120 |
Wide Trim Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA-W01 | 5 | 1.0 – 6.0 | 30 | 150 |
| CMB-W01 | 12 | 1.0 – 15.0 | 23.3 | 280 |
| CMC-W01 | 24 | 1.0 – 28.0 | 12.5 | 300 |
| CMD-W01 | 48 | 3.0 – 58.0 | 6.25 | 300 |
High Voltage Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMK | 200 | 175 – 205 | 1.0 | 200 |
Product specifications
| Product | Power chassis |
| Power | 1800 W |
| Control | Analog, PMbus |
| Length | 267 mm |
| Width | 127 mm |
| Height | 41 mm |
| Application | ITE/AV |
| Product series | CoolX |
| Manufacturer | Excelsys |
