About the product

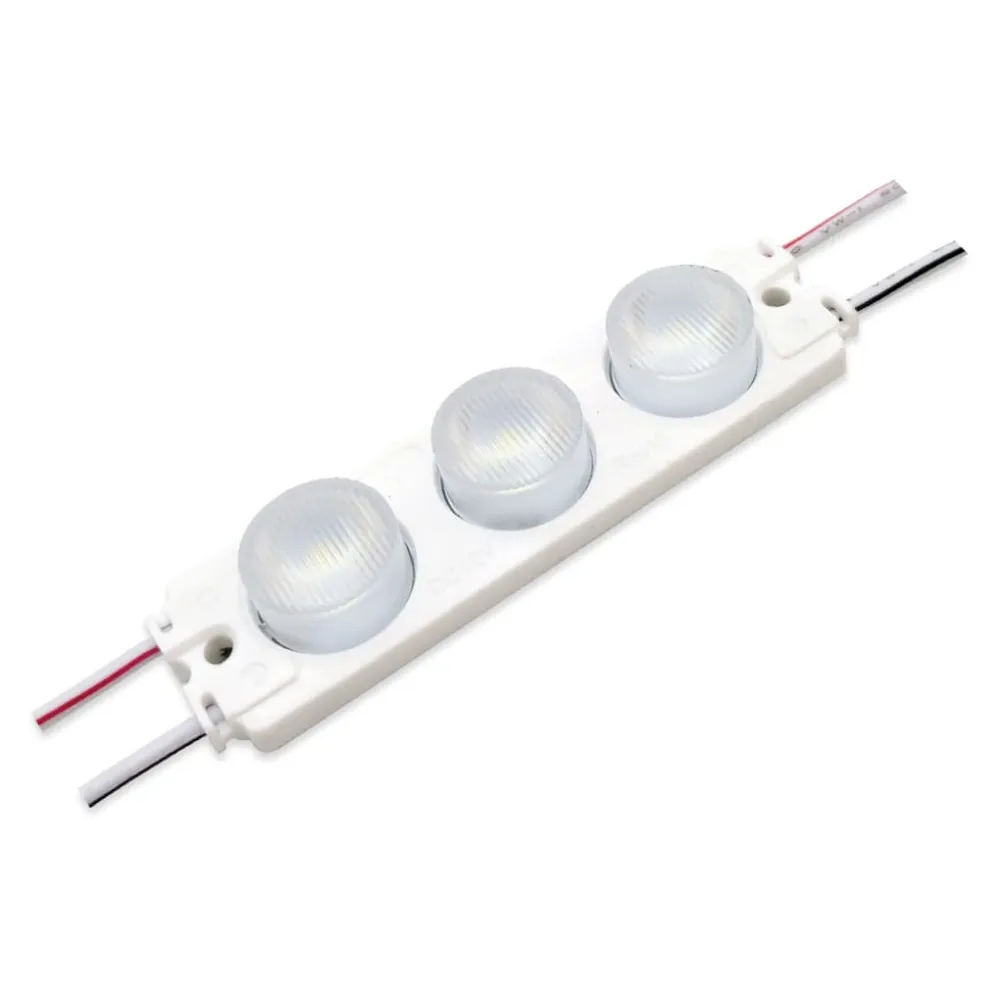

- Side-entry modules with 3535 LED for illuminating light boxes in illuminated advertising / signage.
- Suitable for double-sided light boxes with a depth of 8-30cm
- Available as 3, 5 and 6 modules
- High colour consistency, colour rendering and luminous efficacy
- Radiation pattern: 15°x45
- Seamless connection, different dimensions of the light box can be used (15/10 modules)
- Long service life
- IP60 RATING
- 5-year warranty
Technical data
- Operating voltage: 12V
- Power: 2.5W
- Luminous flux: 225lm
- Colour temperature: 6500K
- Colour rendering: Ra>80
- Radiation characteristic: 10×65°.
- Dimension: 74x20x9.8mm
- Number of LEDs per module: 3
- Number of modules in a chain: 15
- Max. Number of modules on a chain: 15
Product specifications
| Application | Single color |
| Operating mode | 12 V DC |
| Width | 20 mm |
| Colour temperature (K) | 6500 K |
| Colour rendering Ra | 80 |
| Height | 9.8 mm |
| IP protection | IP66 |
| Length | 74 mm |
| Shape | IP Module |
