About the product

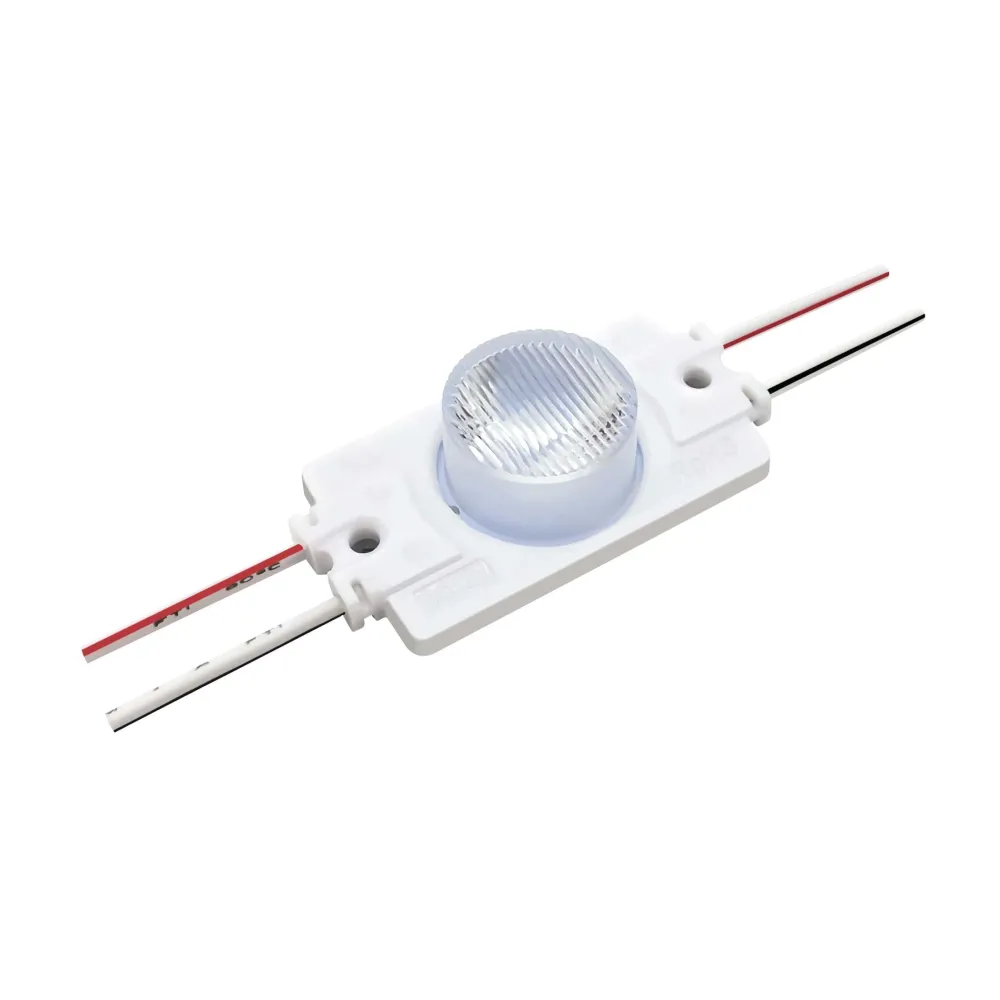

- Side-entry modules with 3030 LED for illuminating light boxes in illuminated advertising / signage.
- Suitable for single-sided light boxes with a depth of 8-20cm or double-sided boxes with a depth of 15-30cm
- Available as 1 and 3 modules
- High colour consistency, colour rendering and luminous efficacy
- Radiation pattern: 10°x65°
- LED module with plastic housing (IP66 protection)
- Flexible chain, can be divided after each module (20 modules on one chain)
- 3M adhesive tape on the back
- Can also be fixed with screws
- Long service life
- 5-year warranty
Technical data
- Operating voltage: 12V
- Power: 1.32W
- Luminous flux: 125lm
- Colour temperature: 4000K
- Colour rendering: Ra>80
- Radiation characteristic: 10×65°.
- Dimension: 43x23x11.6mm
- Number of LEDs per module: 1
- Number of modules in a chain: 20
- Max. Number of modules on a chain: 20
Product specifications
| Application | Single color |
| Operating mode | 12 V DC |
| Width | 23 mm |
| Colour temperature (K) | 4000 K |
| Colour rendering Ra | 80 |
| Height | 11.6 mm |
| IP protection | IP66 |
| Length | 43 mm |
| Shape | IP Module |
