Barrier post with locking system "QUIVO"

QUIVO – the bollard with an ingenious locking system

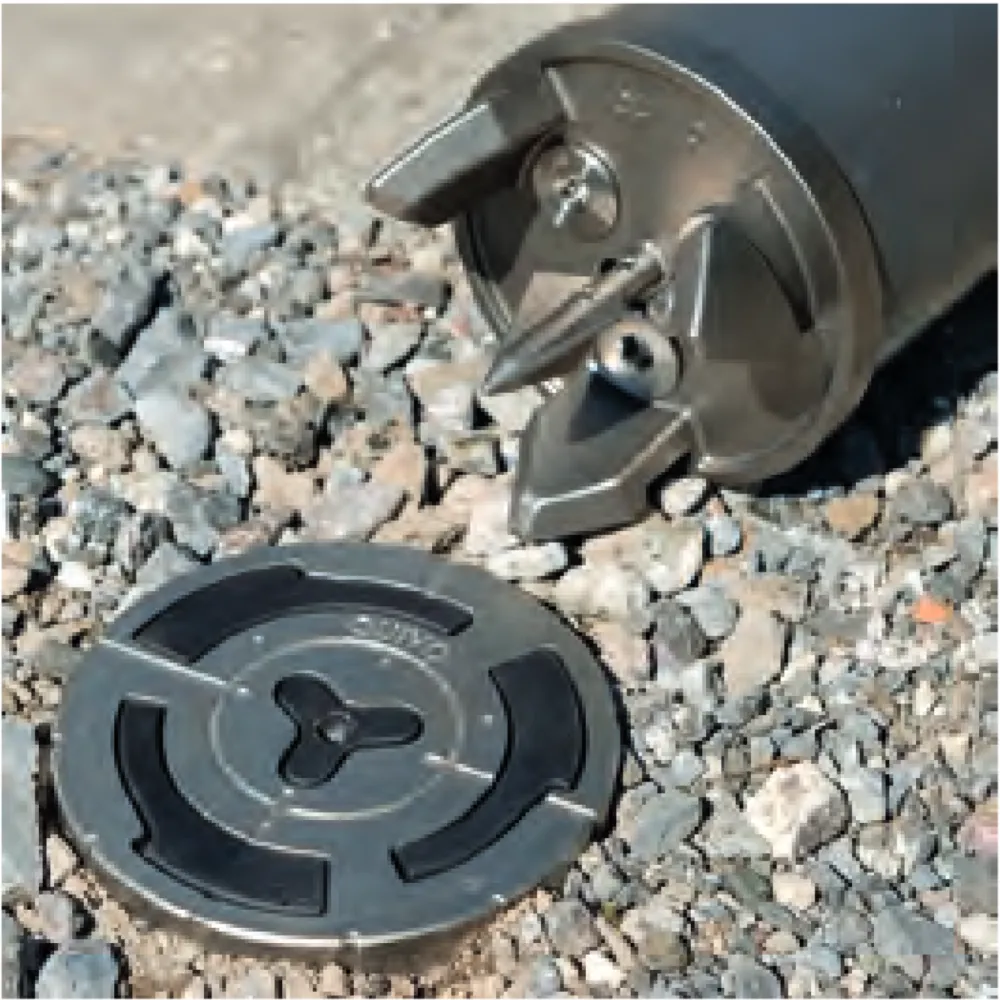

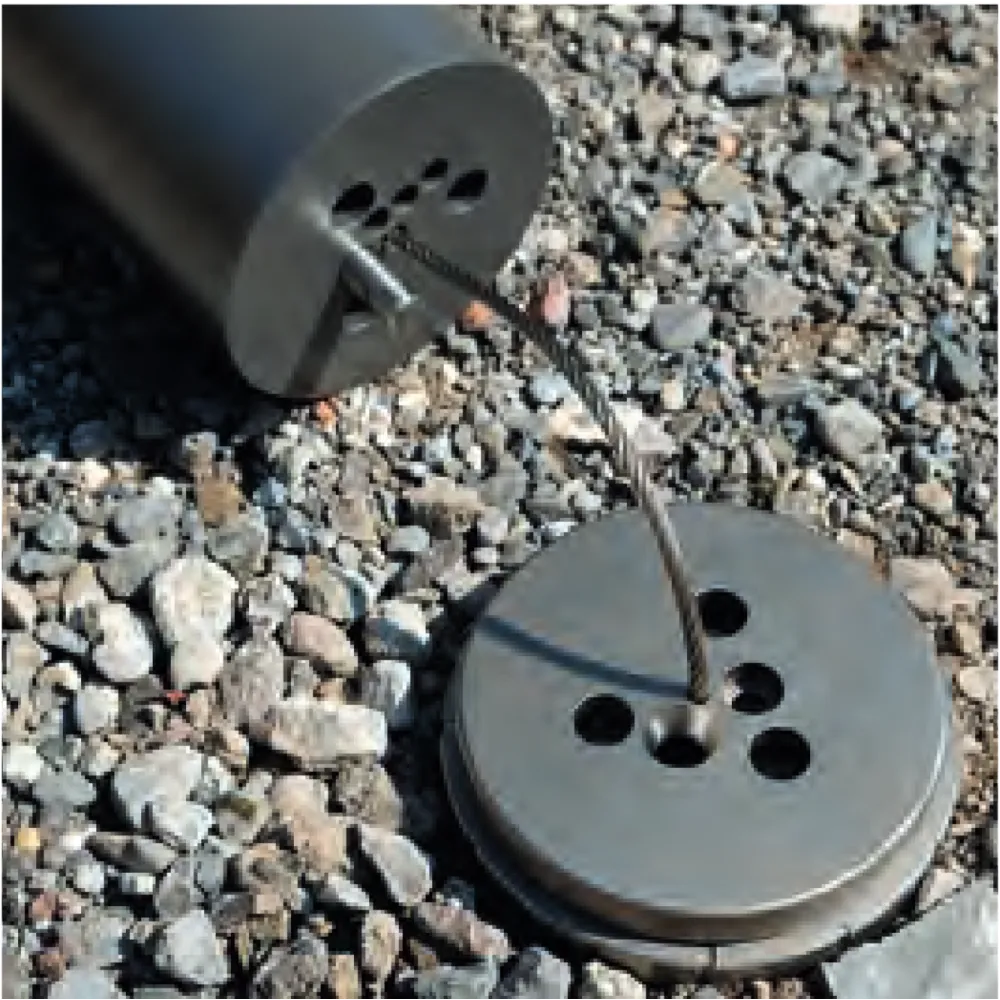

Witn an integrated breakaway point. With a simple twist, QUIVO bollards are secured into the ground socket. When removed, the socket can be closed flush with the ground to prevent tripping hazards. Another advantage: the intelligent breakaway point. It prevents damage to the post and ground in case of collision. The post tilts but is held by a retention cable. The three screws of the breakaway point are easy and inexpensive to replace. QUIVO can be mounted with ground sockets or base plates.

Various locking systems (KABA, KESO, etc.), bollard heads, and strong reflective bands for better visibility are available as options with prices available upon request.

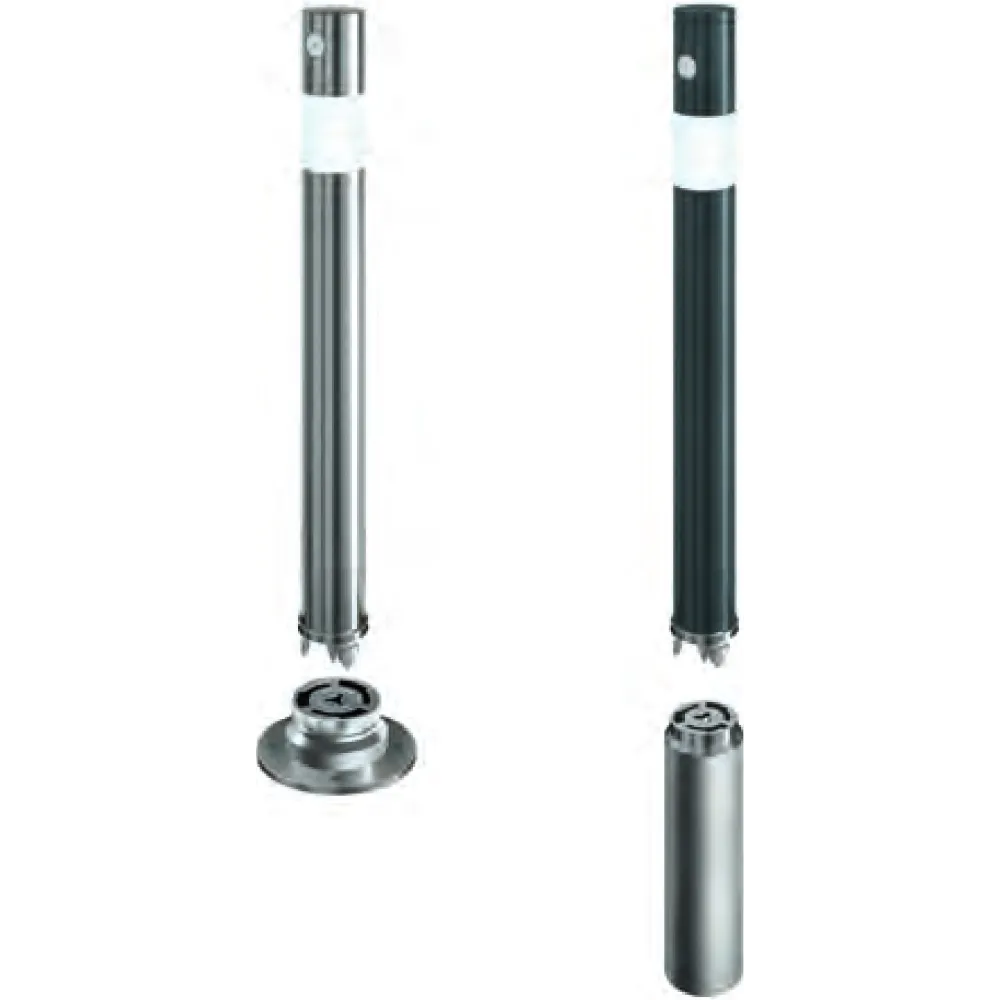

Left image: QUIVO VISTA with base plate.

Right image: QUIVO AREA I with ground socket for concreting.

Models:

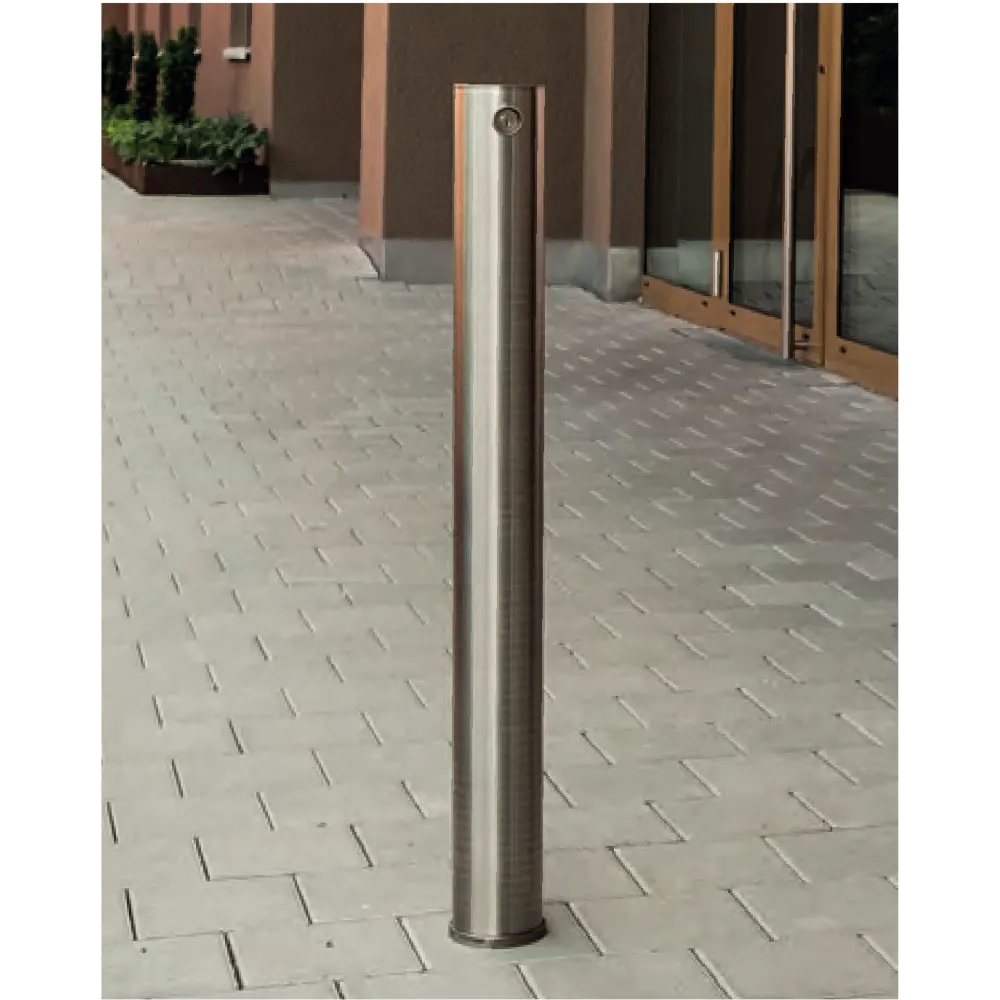

VISTA    D = 104 mm, H = 1000 mm, brushed stainless steel - prices on request

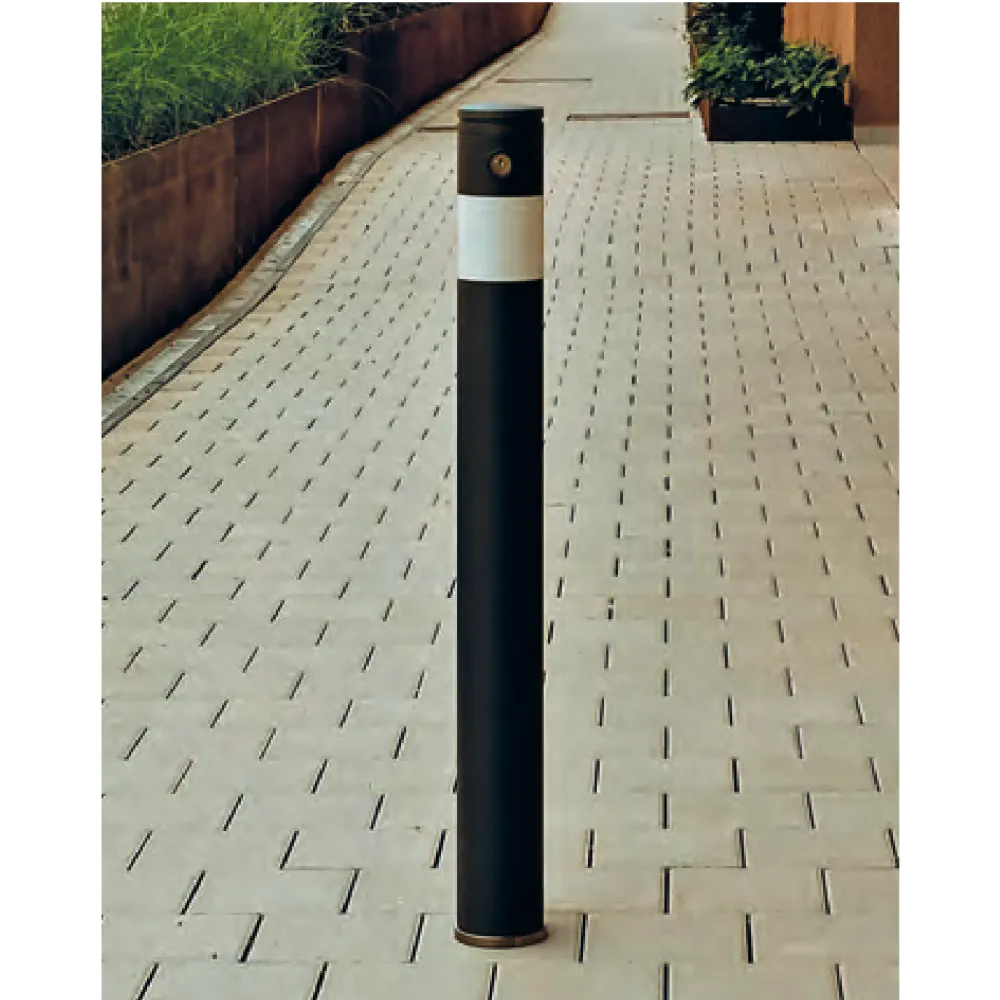

AREA I  D = 104 mm, H = 1000 mm, powder-coated anthracite (DB703) - prices on request

Options:

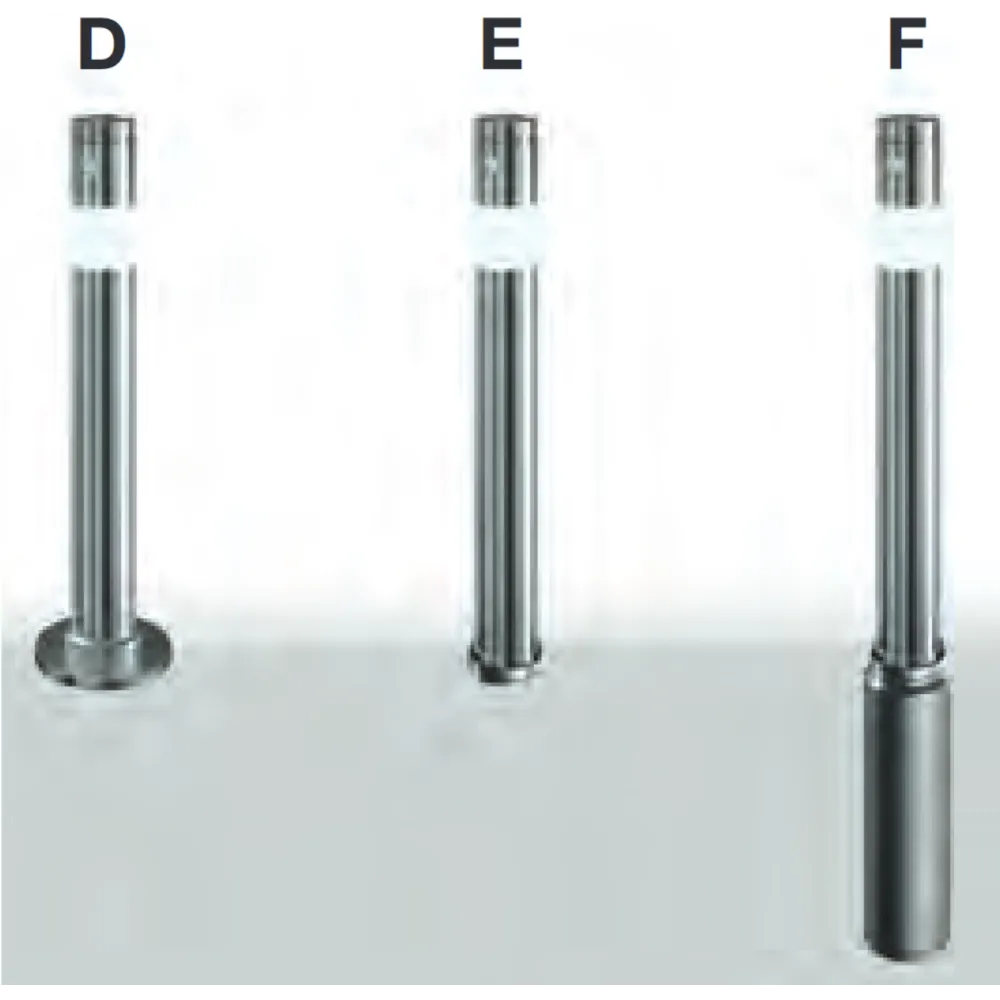

• Base plate with sleeve (60 mm) type D
• Ground socket for shallow depth (60 mm) type E

• Ground socket for concreting (400 mm) type F

• Ground socket with self-closing lid (158 mm)

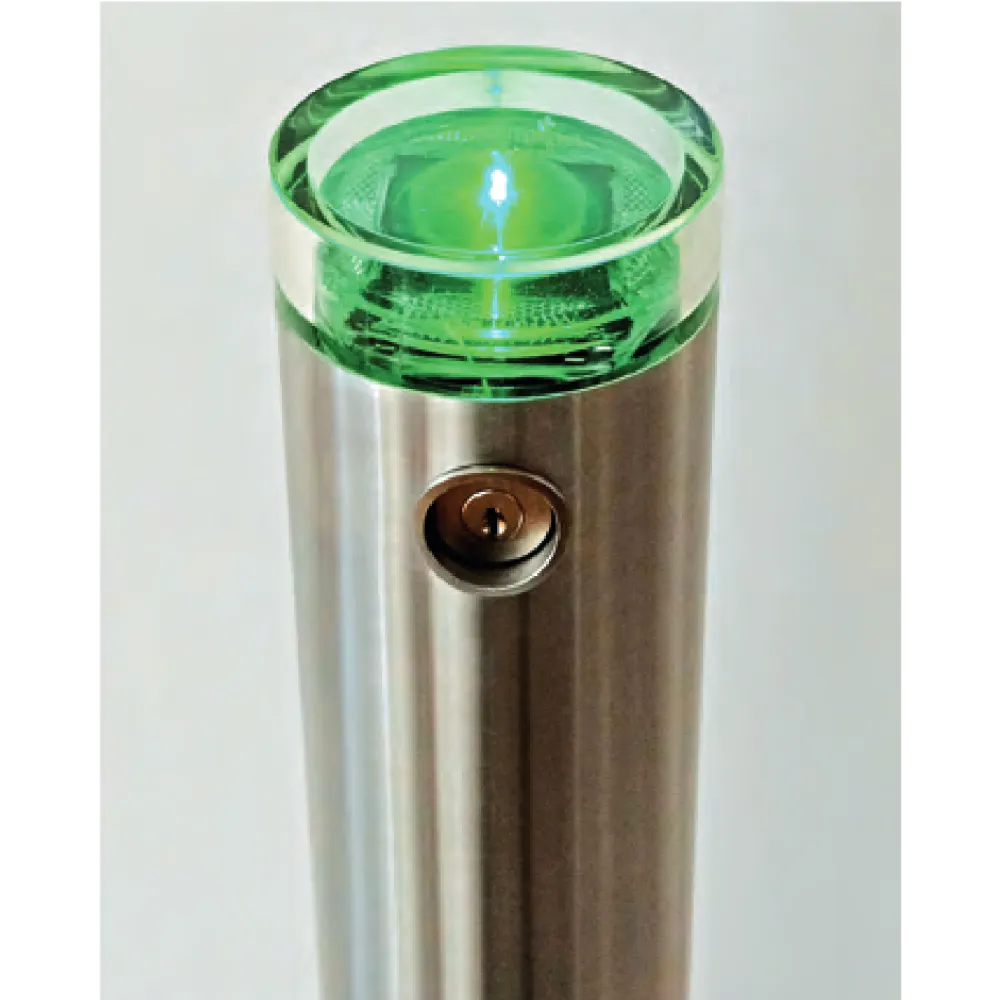

• LED head FLASH (white, red, green)

• Locking system (e.g., KABA/KESO)

• Reflective band, 100 mm (white, red)

• Breakaway point repair kit
