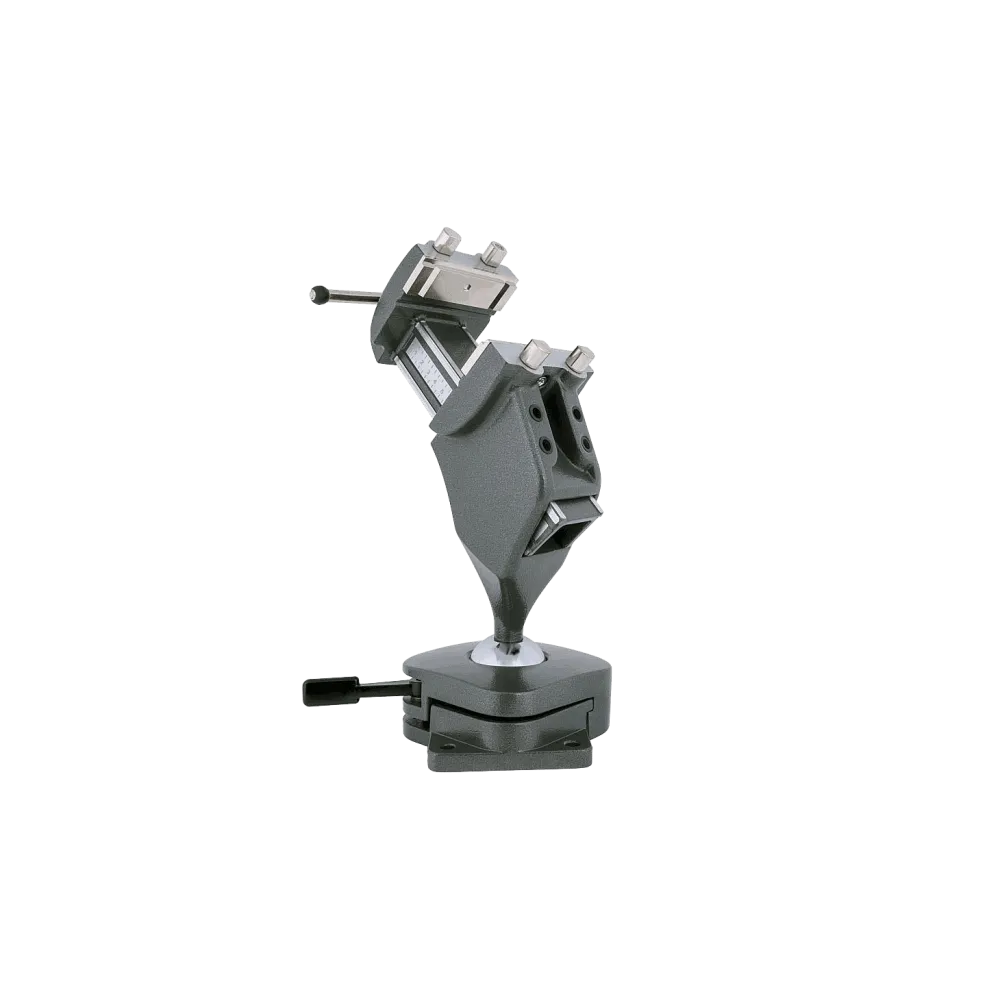

About the product
A slight lever pressure is sufficient to align the clamped workpiece steplessly into any reasonable working position. The individual adjustment of the working height provides an ergonomic posture for working while standing (e.g. drilling, sawing, grinding, milling, cutting, etc.).
The interchangeable jaws of the ball joint vices are 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise. Protective jaws for clamping sensitive workpieces to avoid scratches we offer in felt, leather, cork and rubber coating. Vise jaws with prisms made of aluminum are suitable for clamping pipes, all vise jaws are available in jaw widths from 50 – 150 mm.
The vice fastening for clamping is suitable for workbenches with a maximum table thickness of up to 80 mm. The screw-on vice fastening can be connected to workbenches, tables and base plates via the four 9 mm through holes. The high-performance magnets offer individual fastening that can also be changed quickly.
Technical data
- Precision ball joint rotatable 360°
steplessly lockable quick release
Quality product 100% Made in Germany - for screwing onto the workbench (space dimensions: 152x151mm)
- 100 mm steel jaws (replaceable)
- clamping width 100 mm
clamping depth 50 mm
clamping pressure 12,000 N - inclination angle +/-45°
- incl. steel jaws 9-900-0773-1 (pair)
dowel pins 9-900-S1000 (VE4)
further accessories: protective jaws search field input 9-900 - cast aluminum, powder-coated, dark gray metallic
- Dimensions approx. 290 x 160 x 190 mm
- weight 4720 g
Product specifications
| Manufacturer | BERNSTEIN |
| ESD safe | No |
