Absolut Line

Light and shade, contrast, customisation

Product advantages
Modular and customizable light column
Lighting height from 4.60 m
Choice of lighting module: Ambiance or Directional
Square or road type optics on Ambiance lighting
Deco structure module with customizable laser cutting
Programmable RGBW LED backlight (red, green, blue, white)
Electrical charging available on column foot module
2 Smart modules of your choice: Video camera, Sound system, Wi-Fi, Signage
Zhaga connector optional at the column head
Smart Lum energy savings
Delivery of complete assembly
Thermo-lacquered powder paint finish
Choice of RAL colors or structured paint

Height
from 4.60 m to 5.80 m

Width
214 mm

RANGE
Modular and customizable lighting column in 4 parts.
Possible configurations: see table

AVAILABLE OPTICS:
Square type lighting (SYM 5-2)
Road type lighting (ASYM 3-3)
Barrier option

STRUCTURAL MODULE
Module with customizable laser cutting.
Linear meter pattern on ABEL study.

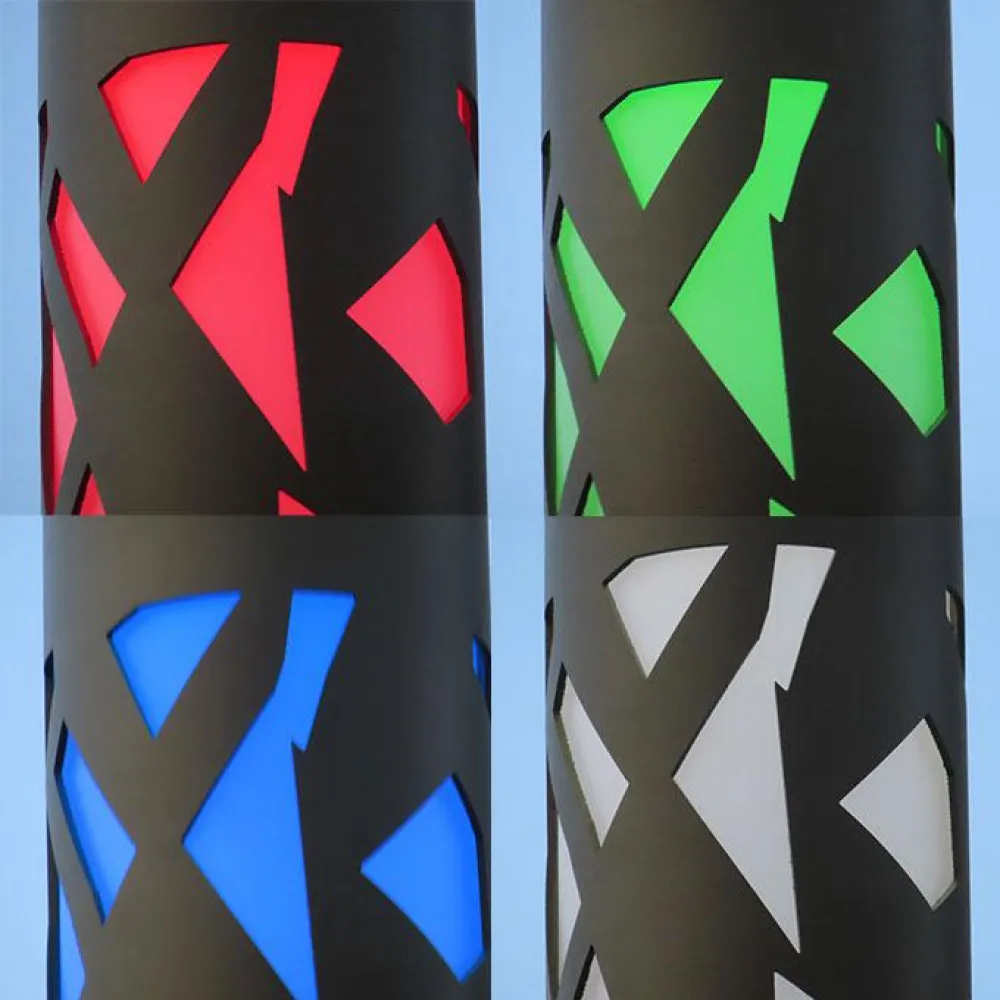

Programmable RGBW (red, green, blue, white) LED backlight. Power consumption 21W.
PMMA inner tube.
Standard 48-second scrolling sequence (10 s. per color, 2 s. between).

MATERIALS - SURFACE TREATMENT
Column base and structure module in aluminum.
IK10 impact PMMA diffuser.
Polyester powder paint baked in the oven at 220°C.
Choice of RAL colors or structured paint.
Specific paint treatment coast/shoreline on study

INSTALLATION / MAINTENANCE
Delivery of complete assembly.
Access to the equipment through 2 doors 500 mm high.
Replaceable power supply.
Optional, surge protection device (SPD) mounted in a box at the foot of the mast.

OVERVOLTAGE RESISTANCE
Protection against lightning between neutral phase and earth (L-N-G) 10kV-5kA to be provided at the foot of the mast.

SMART MODULE
Security, Sound and Communication, Connectivity and Signage functions via Smart module of your choice to be installed at the top of the column.
Two smart modules maximum.
