About the product

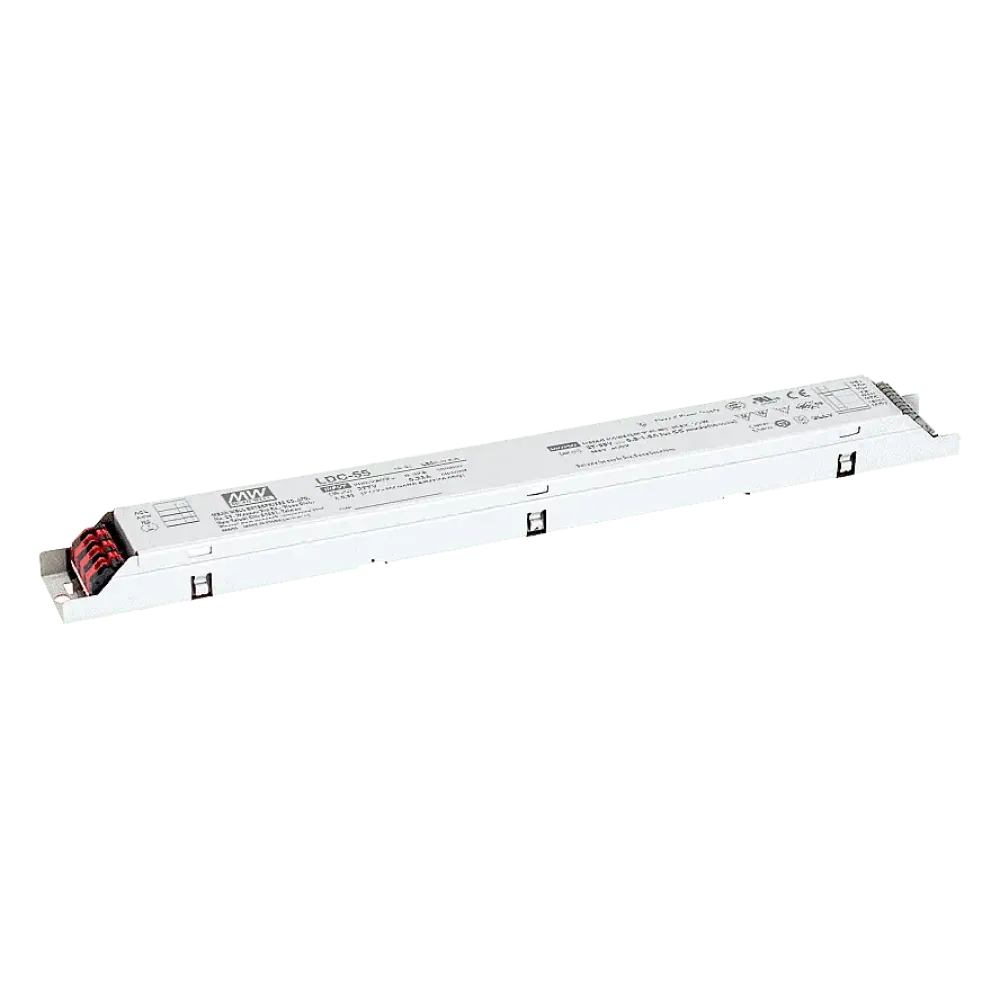

The LED driver LDC-55 with constant power output is designed for the operation of LED lighting applications with 500mA to 1600mA in the voltage range from 27 to 56Vdc. Thanks to the constant power topology, the full 55W are available in the current range from 980mA to 1600mA.
Resistance values for current setting
| Electricity | Resistance value | Article |
| 500mA | Open | |
| 700mA | 150kOhm | MBB02070C1503FCT00 |
| 800mA | 91kOhm | MBB02070C9102FCT00 |
| 900mA | 68kOhm | MBA02040C6802FCT00 |
| 1050mA (ex works) | 47kOhm | MBA02040C4702FCT00 |
| 1200mA | 33kOhm | MBA02040C3302FCT00 |
| 1300mA | 27kOhm | MBA02040C2702FCT00 |
| 1450mA | 24kOhm | MBA02040C2402FCT00 |
| 1600mA | 18kOhm | MBA02040C1802FCT00 |
Technical data
- Output current 500 to 1600mA. Adjustable with fixed resistor (see accessories)
- Voltage range 27 to 56Vdc
- Full power from 980mA to 1600mA
- SELV and isolated
- Dimensions 320 x 30 x 21mm (L x W x H)
Product specifications
| Height | 21 mm |
| Additional functions | Constant power |
| Current setting | Resistance |
| Connection | Spring clamp |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Length | 320 mm |
| Power | 55 W |
| Width | 30 mm |
| Manufacturer | MEAN WELL |
| Channels | 1 |
| Application | Single color |
| Control | not dimmable |
