Color
Steel

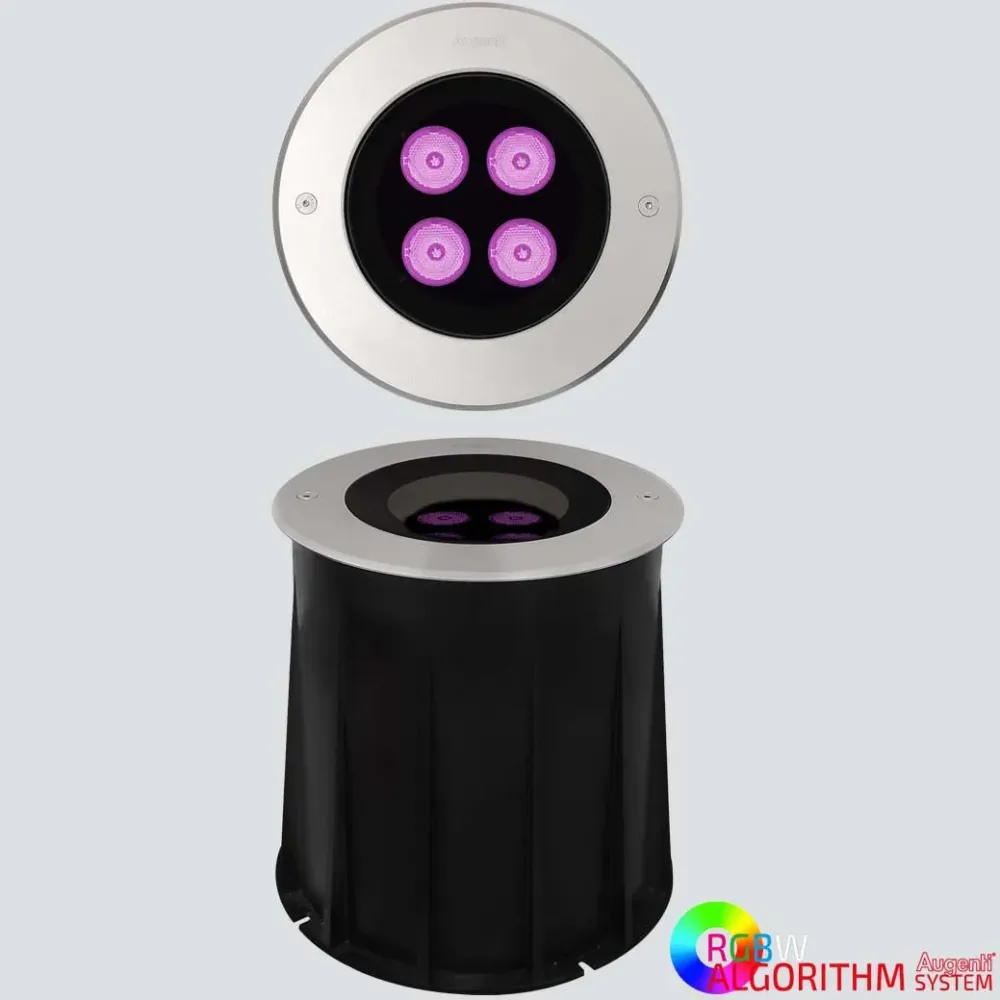

About the product
The RGBW system has been completely revised, significantly increasing its efficiency and lumen output of colors. A new DMX control system based on a microchip algorithm has been inserted inside the lamp, capable of obtaining a constant and full power wattage for each single color or in the combination of the two color channels.
Product specifications
| Assembly | inground recessed |
| Absorbed power | 12 W |
| Source | LED RGBW |
| Source flux | 1650 lm |
| Fixture source | 1420 lm |
| Apparent efficiency | 86.00% |
| Insulation class | class III |
| Overvoltage protection | 2-4kV |
| Operating Ta | -20°C to +50°C |
| Energy class | Class A |
| CCT LED | RGBW (W=6500K) |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Power module LED | 12 W |
| Specific wiring | included |
| Protection | IP67/IK10 |
| Body | lighting body: die-cast aluminum, electronics housing: polyamide |
| Box | polypropylene (PP) 30% fiber UV-stabilized GWT750 |
| Frame | stainless steel AISI316L |
| Screen | transparent extra-clear glass 15mm |
| Seals | expanded silicone/moulded silicone |
| Screws | stainless steel with anti-corrosion |

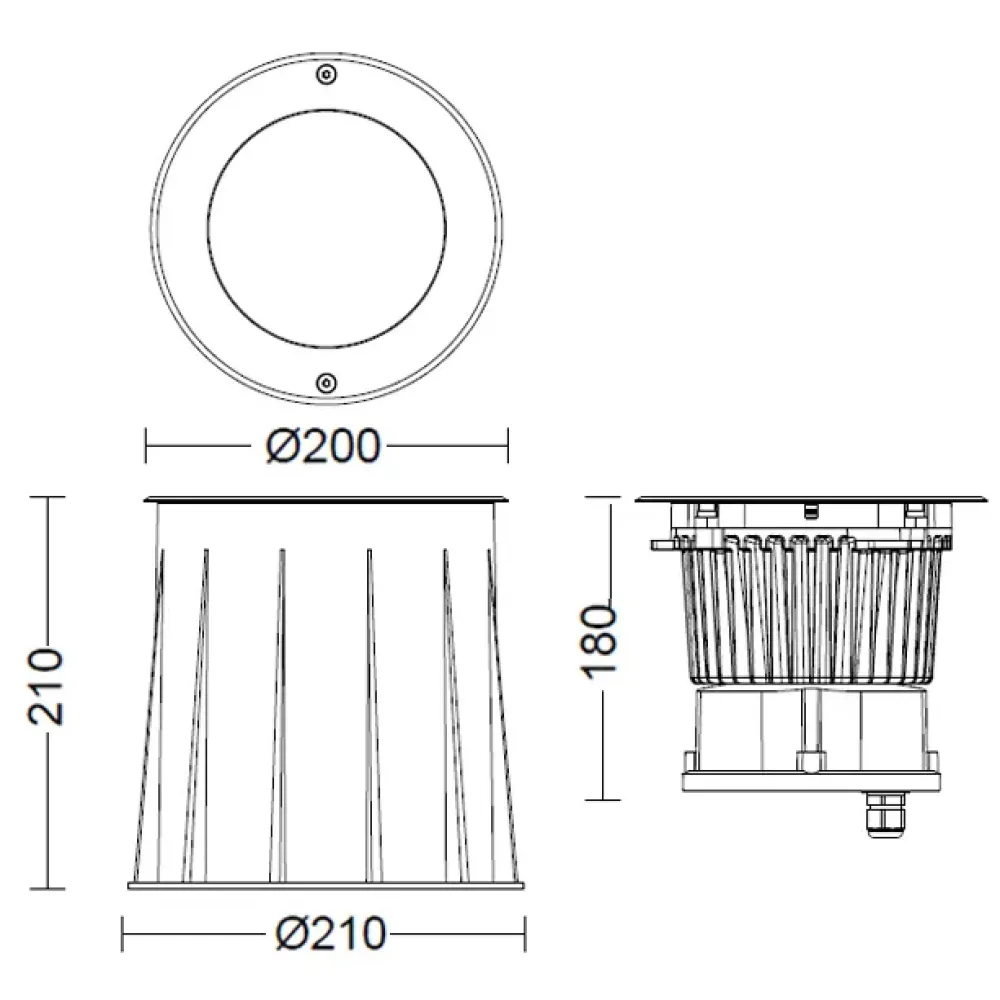

| Size | H 210 x L 210 x Ø 200 mm |
| Power supply | 24 VDC |
| Driver | remote driver 24VDC not included |
| Driver current | N/A |
| Control | dimmable |
| Beam opening | spot/15° |
Data sheets
