About the product

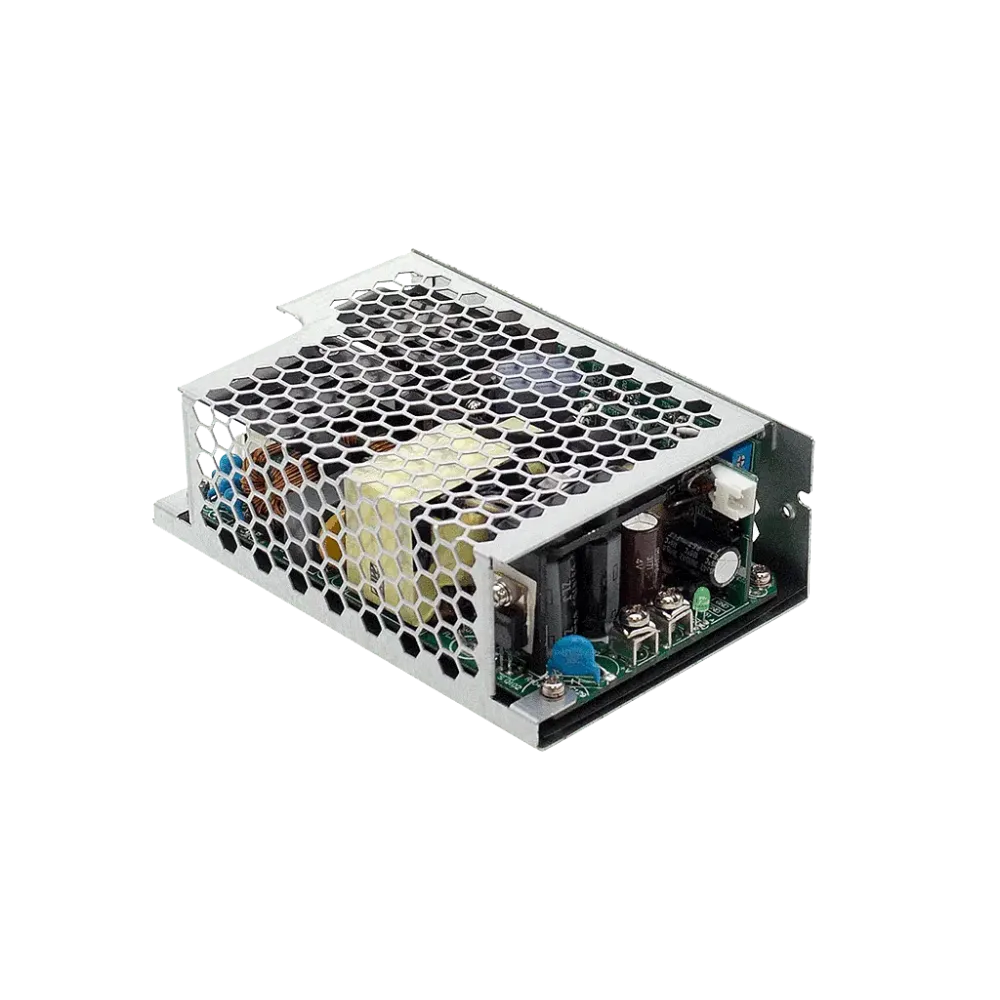

RPS-300-15-C is a power supply unit for medical applications in a housing
Technical data
- Input voltage 90 to 264Vac
- 300W power with 20.5CFM forced ventilation
- 200W with convection
- No load power consumption <0.5W
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Short-circuit, overload, overvoltage and overtemperature protection
- Dimensions 130 x 86.6 x 43mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 14.3 V |
| Maximum VDC setting range | 15.8 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Height | 43 mm |
| Status signals | DC OK signal |
| Application | Household, Medical |
| Protection class | Class I |
| Width | 86 mm |
| Length | 130 mm |
| Input voltage range (VAC) | 80-264 V |
| Output voltage (VDC) | 15 V |
| Power | 300 W |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output |
