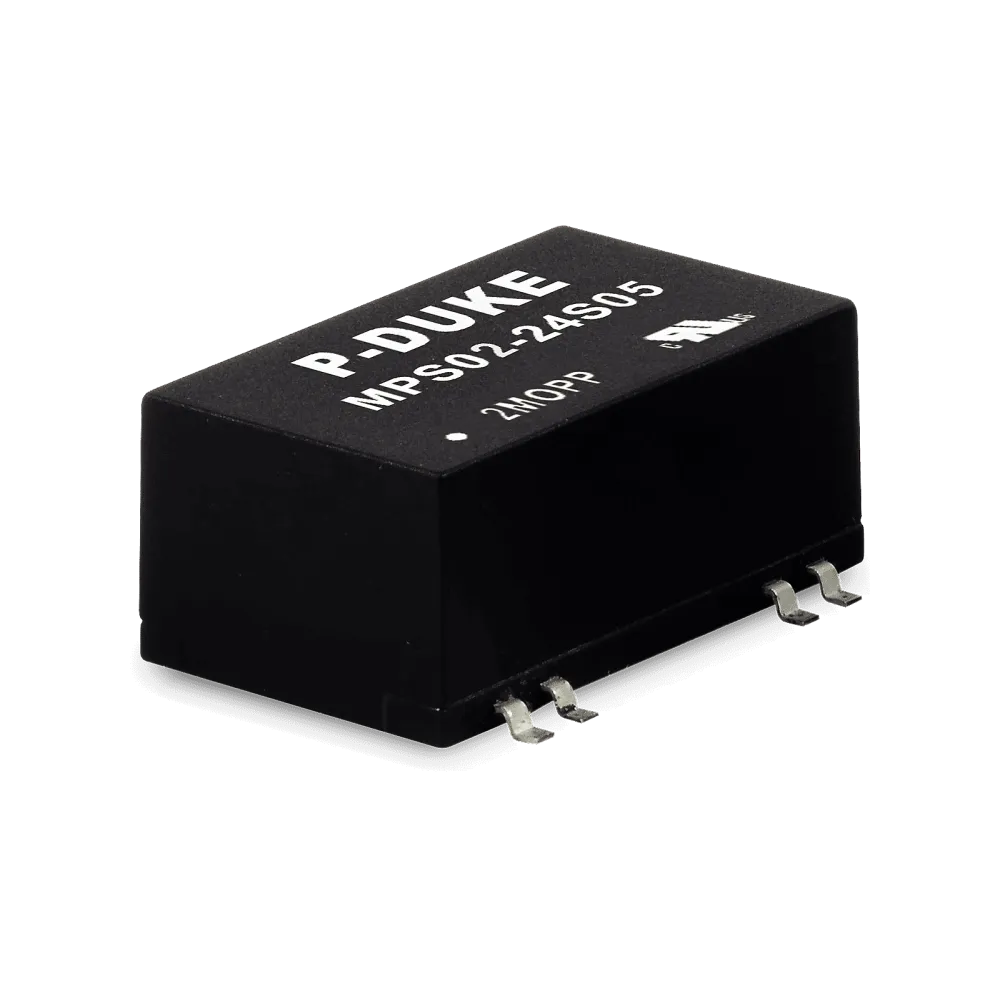

2W medical DC/DC-Converter, Input 18…36V, Output +3.3V / +0.6A
Technical data
- Medical approval according to IEC60601-1
- 2Watt output power
- 2:1 Input voltage range: 4.5.12, 9.18, 18.36, 36.75Vdc
- 2x MOPP, 8mm air gap & creepage distance
- 5000Vac Isolation Voltage
- Operating altitude: 5000müM
- Warranty: 5 years
- Manufacturer: P-Duke
Product specifications
| Output voltage (VDC) | 3.3 V |
| Application | ITE/AV, Medical |
| Height | 10.5 mm |
| Width | 18.1 mm |
| Length | 24.3 mm |
| Package / case | SMD16 |
| Additional functions | Remote ON/OFF |
| Regulation | Regulated |
| I/O isolation | 5000 V AC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 18-36 V |
| Nominal input voltage (VDC) | 24 V |
| Output current | 600 mA |
| Power | 2 W |
| Manufacturer | P-Duke |
