About the product

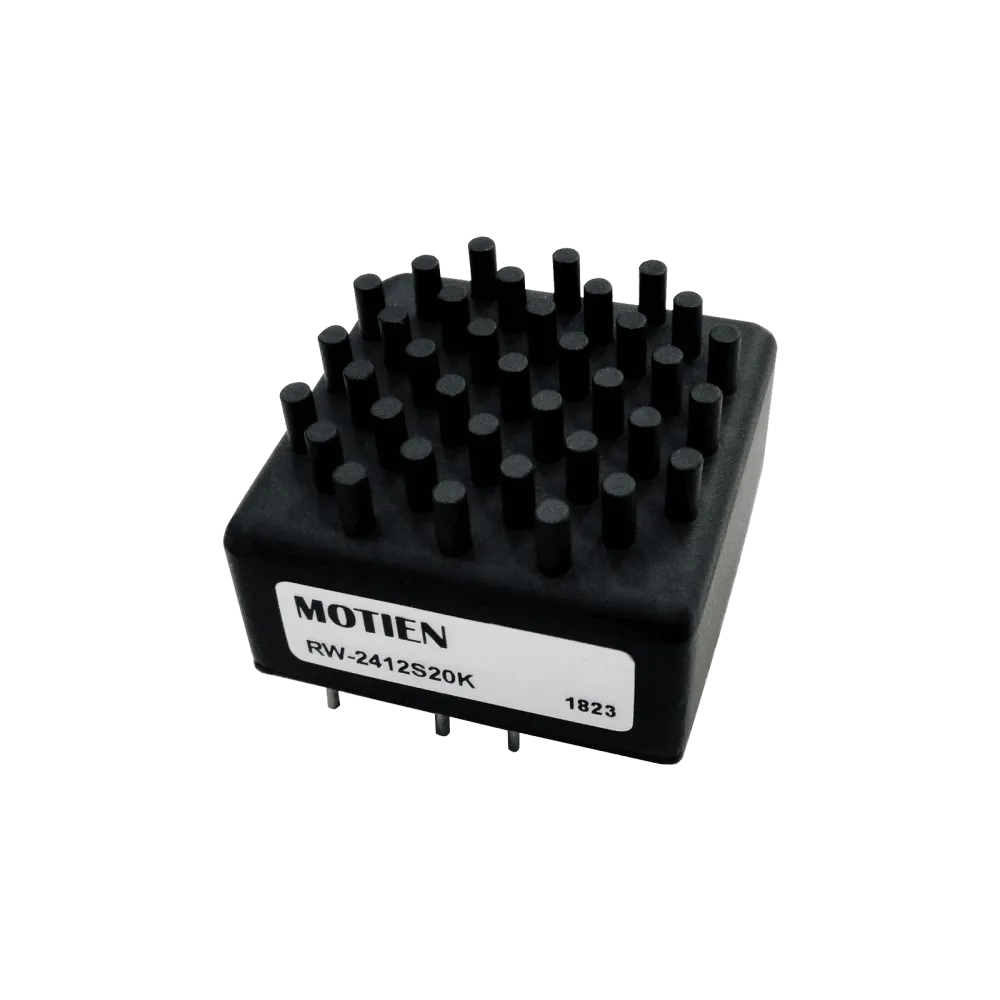

20W DC/DC-Converter, Input 42…176V, Output +/-5V / +/-2A
Technical data
- Wide 2:1 Input Range
- 1500.3000Vdc Isolation
- Fully regulated Output
- No minimum Load required
- Continuous short circuit protection
- Efficiency up to 80%
- Low Ripple and Noise
- -40°.+90°C Operating Temperature Range
- 3 Years Warranty
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 5 V |
| Manufacturer | Motien |
| Application | ITE/AV, Railway |
| Height | 16.4 mm |
| Width | 27.6 mm |
| Length | 27.6 mm |
| Package / case | 1.09 x 1.09 Inch |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Regulation | Regulated |
| I/O isolation | 3000 V DC |
| Input voltage ratio | N/A |
| Input voltage range (VDC) | 42-176 V |
| Nominal input voltage (VDC) | 48-110 V |
| Output current | 2000 mA |
| Power | 20 W |
| Manufacturer warranty | 3 years |
