About the product

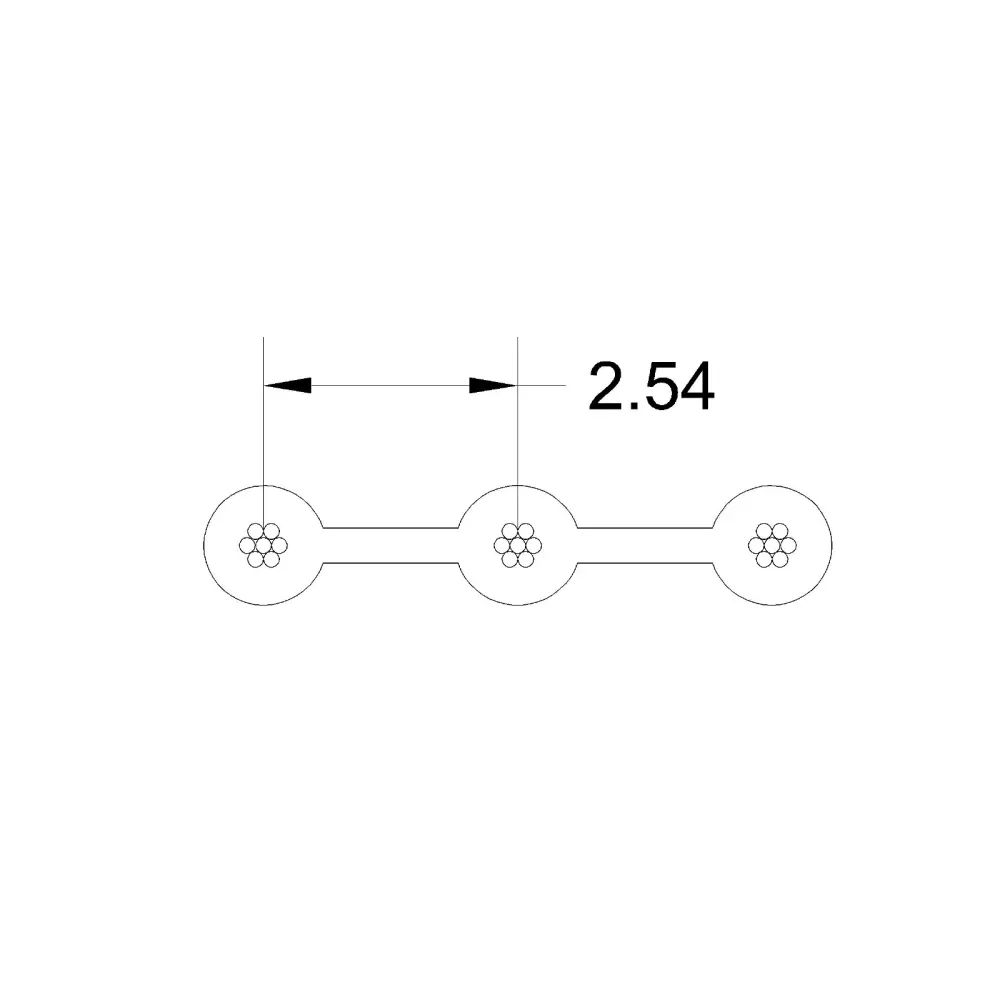

Flat cable 11-pin, 2.54 mm pitch, length: 120 mm from Don Connex
. Other, non-published products and versions from Don Connex on request.
Technical data
- Insulation material: Polyvinyl Chloride (PVC)
- Color: red
- Conductor Material: #26 AWG Overcoated Stranded Tinned Copper, #26 AWG Stranded Tinned Copper
- Rated voltage: 300 V
- Impedance: 120Ω (unbalanced)
- Capacitance: 11.2pF/ft.
- Inductance:.14 uH/ft.
- Propagation delay: 1.35 ns/ft.
- Insulation resistance: 1GΩ /M min.
- Temperature range: -20˚C.. +105˚C
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 250 V |
| Contact grid | 2.54 mm |
| Manufacturer | Don Connex |
