Item ID: 53502
Set: H-cable distributor TH624, 4-gang, 4P, screw connection, D7.0-12, IP68
About the product

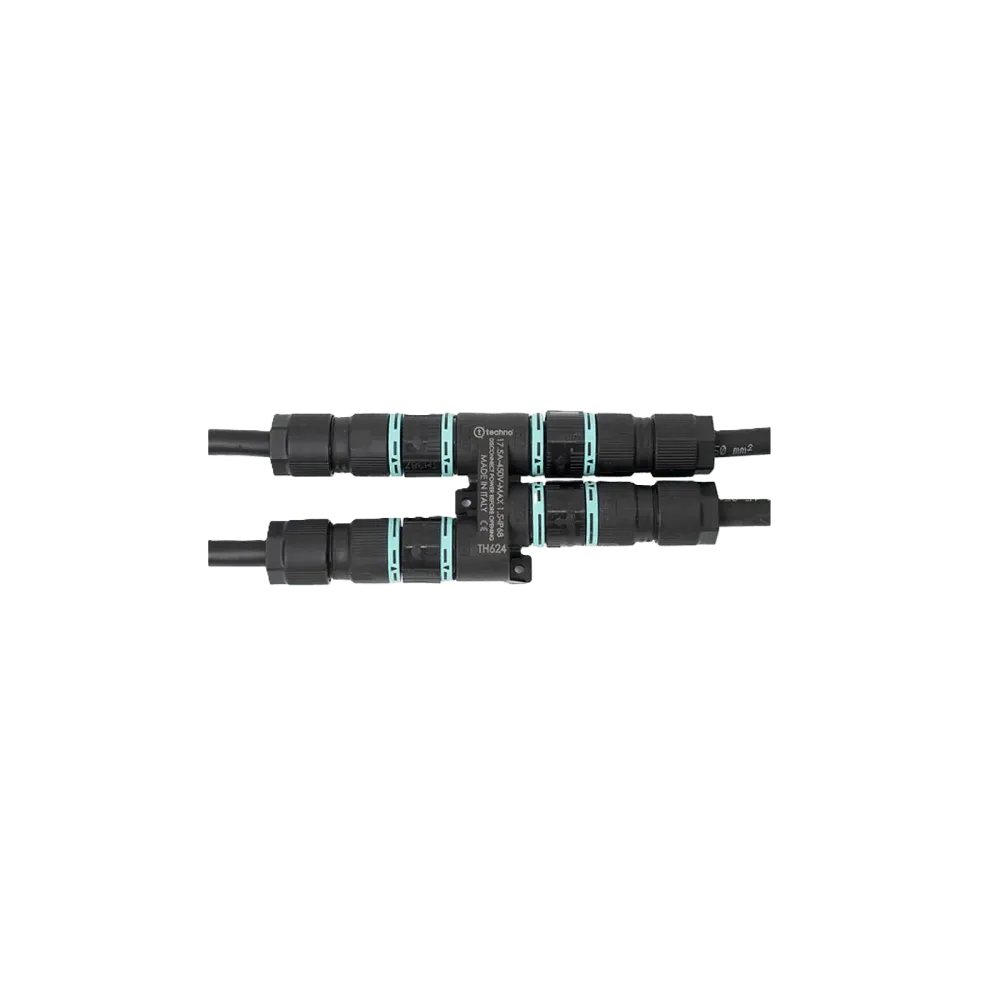

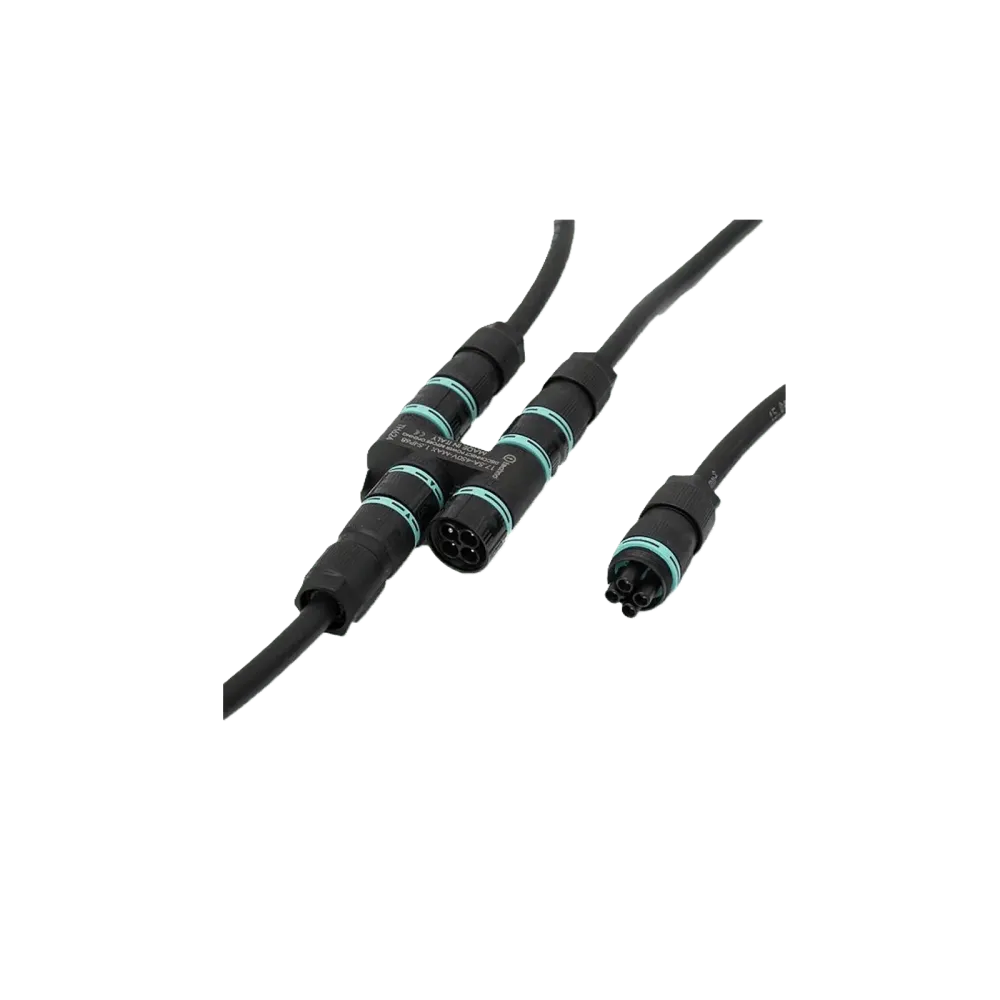

4-way cable distributor set TH624 from Techno, Italy
. Set, consisting of*:
1x H power distributor (THH.624.A4A)
. 3x plug (THB.387.B4A)
. 1x socket (THB.387.A4A)
Locking: Screw
*All components also available individually.
Other Techno products and designs on request.
Technical data
Number of outlets: 4 (1+3)
External dimensions: 65.0 x 61.0 x 25.0 mm (H-distributor only)
Nominal voltage: 500V AC
Nominal current: 17.5A
Connection cross-section: 0.5 - 1.5 mm2
Cable diameter: 7.0 -12.0 mm
Temperature range: -40°..+125°C
IP protection: IP68
Housing material: PA66 GF UL94 V0 / PA66 UL94 V2 (cable gland)
O-rings: TPE
Material properties: Halogen-free, silicone-free
Subject to errors and technical changes
Product specifications
| Manufacturer | Techno |
| Nominal current | 17.5 A |
| Nominal voltage (V) | 500 V |
| Certificates | CE |
| Number of poles | 4 |
| Cable diameter | 7-12 mm |
| IP protection | IP68 |
