Item ID: 53495

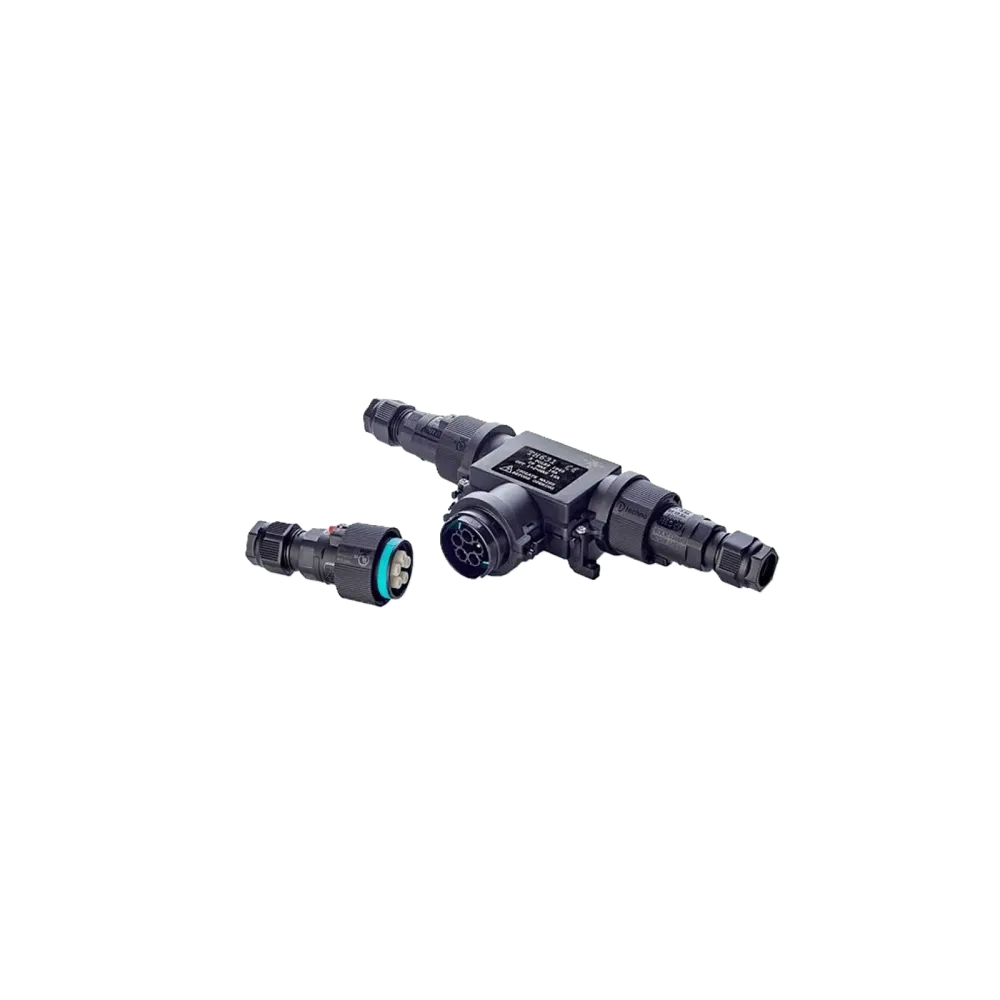

Techno T-distributor plug & socket THR631, 5P, screw connection, D6-13.5 IP65
About the product
5-pin T-distributor THR631 from Techno, Italy
. 3-way cable connector with 5-pin plug & socket.
- 3-way T-distributor with 5-pin plug connector
- For cable diameter: Ø 6.0 - 13.5 mm
- External dimensions: 235.0 x 159.0 x 43.0 mm
- Protection classes: IP65
Other Techno products and designs on request.
Technical data
Number of outputs: 3
External dimensions:235.0 x 159.0 x 43.0 mm
Nominal voltage: 400V AV
Nominal current: 17.5A
Cable cross-section: 0.5 - 1.5mm2
For cable diameter: Ø 6.0 - 13.5 mm
Temperature range: -40..+125°C
Housing material: PA66 UL94 V2, PA66 GF UL94 V0 (plug connector), PA66 UL94 V2 (cable gland)
O-rings: Silicone, TPE
Material properties: Halogen-free
Subject to errors and technical changes
Product specifications
| Manufacturer | Techno |
| Nominal current | 17.5 A |
| Certificates | IEC |
| Nominal voltage (V) | 400 V |
| IP protection | IP65 |
| Connection cross-section (mm²) | 0.5 - 1.5 mm² |
| Number of poles | 5 |
| Cable diameter | 6-13.5 mm |
