About the product

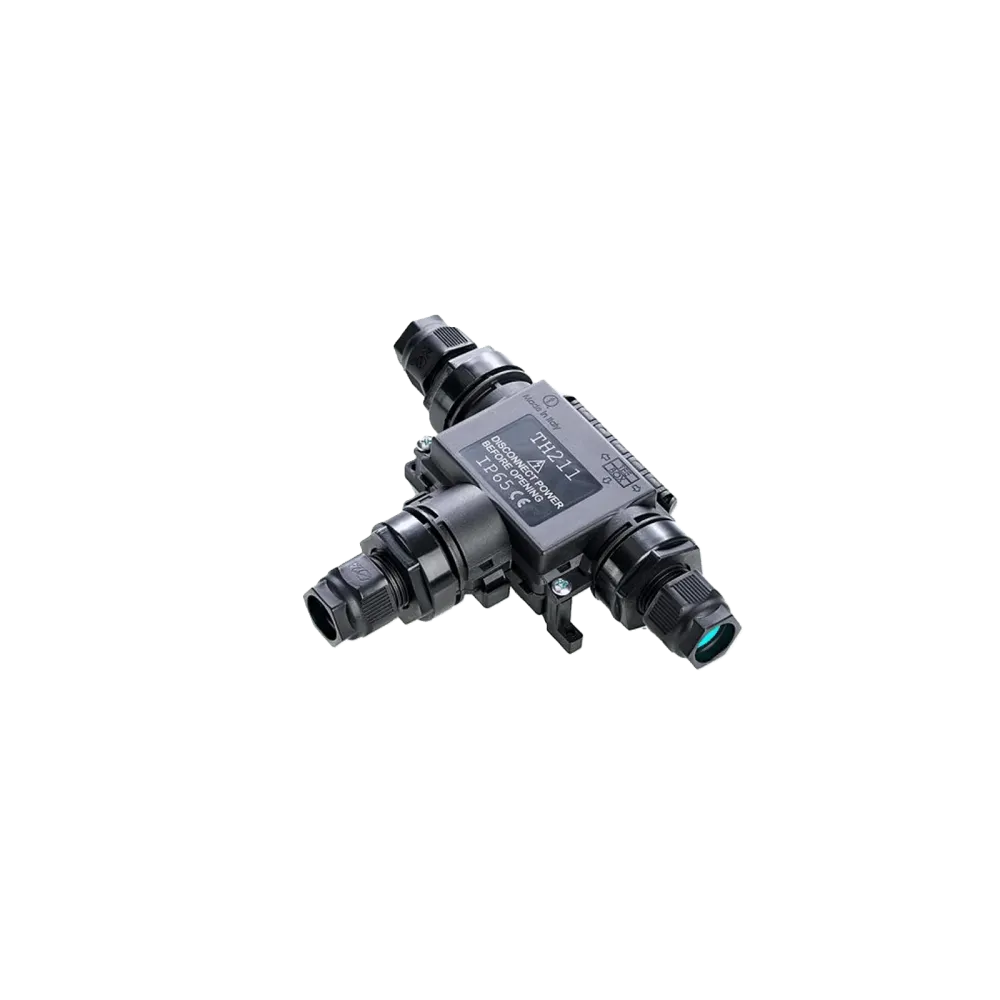

TH211 cable socket from Techno, Italy
. 3-gang cable junction box with cable connector from Techno.
- 3-way T-distributor with 3-pole cable connector
- For cable diameter: Ø 7.0 - 13.5 mm
- External dimensions: 137.0 x 118.0 x 36.0 mm
- Internal dimensions: 58.0 x 45.0 x 27.0 mm
- Protection classes: IP65
Other Techno products and designs on request.
Technical data
Number of outputs: 3
External dimensions: 137.0 x 118.0 x 36.0 mm
Internal dimensions: 58.0 x 45.0 x 27.0 mm
Temperature range: T 85°C
Housing material: PA66 UL94 V2
O-rings: TPE
Material properties: Halogen-free, silicone-free
Subject to errors and technical changes
Product specifications
| Manufacturer | Techno |
| Nominal voltage (V) | 450 V |
| Certificates | IEC |
| Nominal current | 24 A |
| IP protection | IP65 |
| Number of poles | 3 |
| Connection cross-section (mm²) | 0.5 - 4.0 mm² |
| Cable diameter | 7-13.5 mm |
Data sheets
