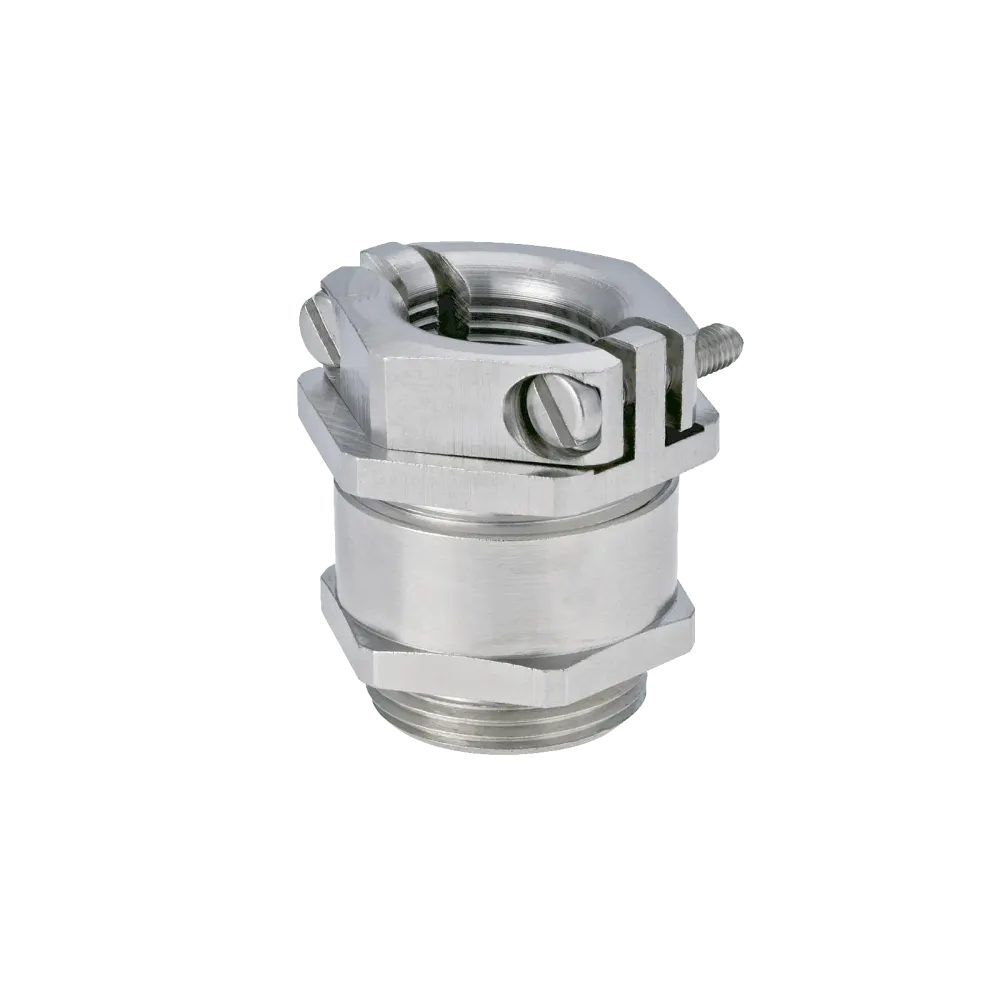

DIN 46320 Z (metric)

DIN 46320 Z (metric) Nickel-plated brass

These cable glands are designed to meet very specific norms and standards. They therefore differ in design and function from the premium cable glands in the HSK series. DIN cable glands offer special clamping ranges and have a particularly low overall height.

. // DIN 46320: Fittings made of plastic and brass
. // Z (DIN 46320): Fittings with extra high strain relief
. // SE (DIN 46320): Cable glands with EMC connection
. // ZSE (DIN 46320): Cable glands with extra high strain relief and EMC connection

. HUMMEL offers different clamping ranges, thread types and various sealing materials for different temperature ranges. Other, unpublished versions are available on request.

Technical data

• Version: with cut-out sealing ring
• Material: Nickel-plated brass
• Molded seal: NBR
• Protection class: IP 54, IP 65 with additional flat seal on the connection thread
• Temperature range: -20°C..+80°C
• Variant: Metric
• External thread (male): M12 x 1.5 / M16+ x 1.5 / M20 x 1.5 / M25 x 1.5 / M32 x 1.5 / M40 x 1.5 / M50 x 1.5 / M63 x 1.5
• Product group: Standard

. Subject to errors and technical changes
