About the product

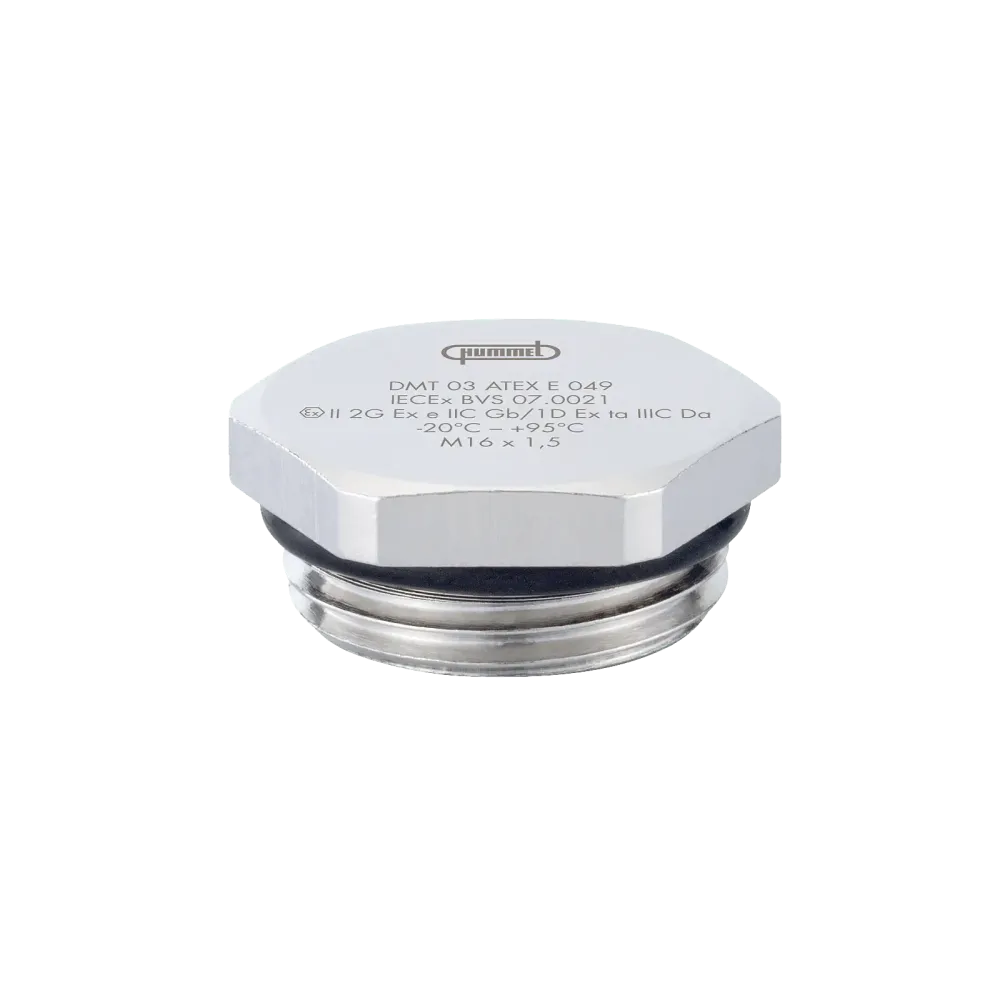

Lock V-Ms-Ex with O-ring (metric) Nickel-plated brassThe fasteners are available in different materials, sizes and with different thread types.
Ex accessories
. Cable glands for explosion-protected areas also require accessories for explosion-protected areas. HUMMEL has developed a wide range of accessories precisely for this segment. These accessories meet all the requirements for hazardous areas and have the necessary certifications and approvals.
. // Accessories made of plastic, brass and stainless steel
. // Closures with Ex approvals
. // Reducers in many different sizes
. Other, non-published HUMMEL designs and products on request...
Ex accessories
. Cable glands for explosion-protected areas also require accessories for explosion-protected areas. HUMMEL has developed a wide range of accessories precisely for this segment. These accessories meet all the requirements for hazardous areas and have the necessary certifications and approvals.
. // Accessories made of plastic, brass and stainless steel
. // Closures with Ex approvals
. // Reducers in many different sizes
. Other, non-published HUMMEL designs and products on request...
Technical data
- Material: Nickel-plated brass
- O-ring material: NBR
- Protection class: IP68 - 10bar/30min, IP 69 K
- Ex protection class: II 1D Ex ta IIIC Da, II 2G Ex e IIC Gb
- Temperature range: -20°C..+95°C
Subject to errors and technical changes
Product specifications
| Manufacturer | Hummel |
| Series | Accessories V-MS-Ex |
