About the product

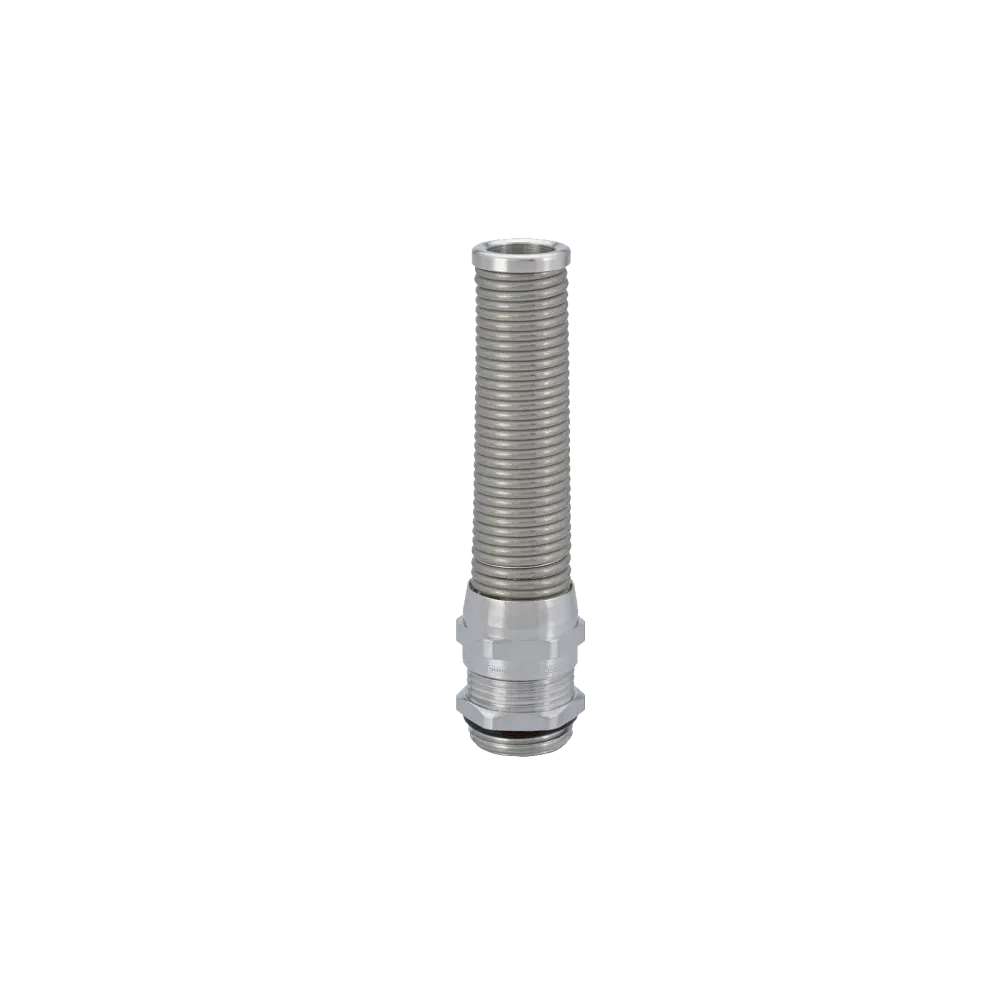

HSK-M-Flex (metric/long) nickel-plated brass
Cable glands from the HSK-M premium series are available in brass and stainless steel. They are designed for industrial use and are characterized by a high degree of tightness, impact resistance and strain relief for the cables. Brass cable glands from the HSK series are also available in a lead-free version. The metric versions in sizes M12-M63 are available. Other lead-free versions are available on request.
. // Protection class IP 66, IP 68 up to 10 bar and IP 69K
. // RoHS and REACH/SVHC compliant
. // Free from conflict materials
. // Halogen and phosphorus-free
. // Fire protection class V0 according to UL94
. // Anti-twist protection for cables in the terminal insert
. Other, unpublished versions on request.
Technical data
- Material: Nickel-plated brass
- Anti-kink spring: INOX 1.4310
- Clamping insert: Polyamide V0 according to UL94
- Molded seal: NBR
- O-ring material: NBR
- Protection class: IP68 - 10bar/30min, IP 69 K
- NEMA Type Rating: 4 / 4X / 6 / UL 50E
- Temperature range: -40°C..+100°C
- Variant: metric/long
- External thread: M12 x 1.5 / M16 x 1.5 / M20 x 1.5 / M25 x 1.5
// andere Dichtungsmaterialien zB. Silikon auf Anfrage
Subject to errors and technical changes
Product specifications
| Manufacturer | Hummel |
| Thread length | Short, Long |
| Series | HSK-M-Flex (metric/long) |
