HSK-M-PVDF-EMV (metric)

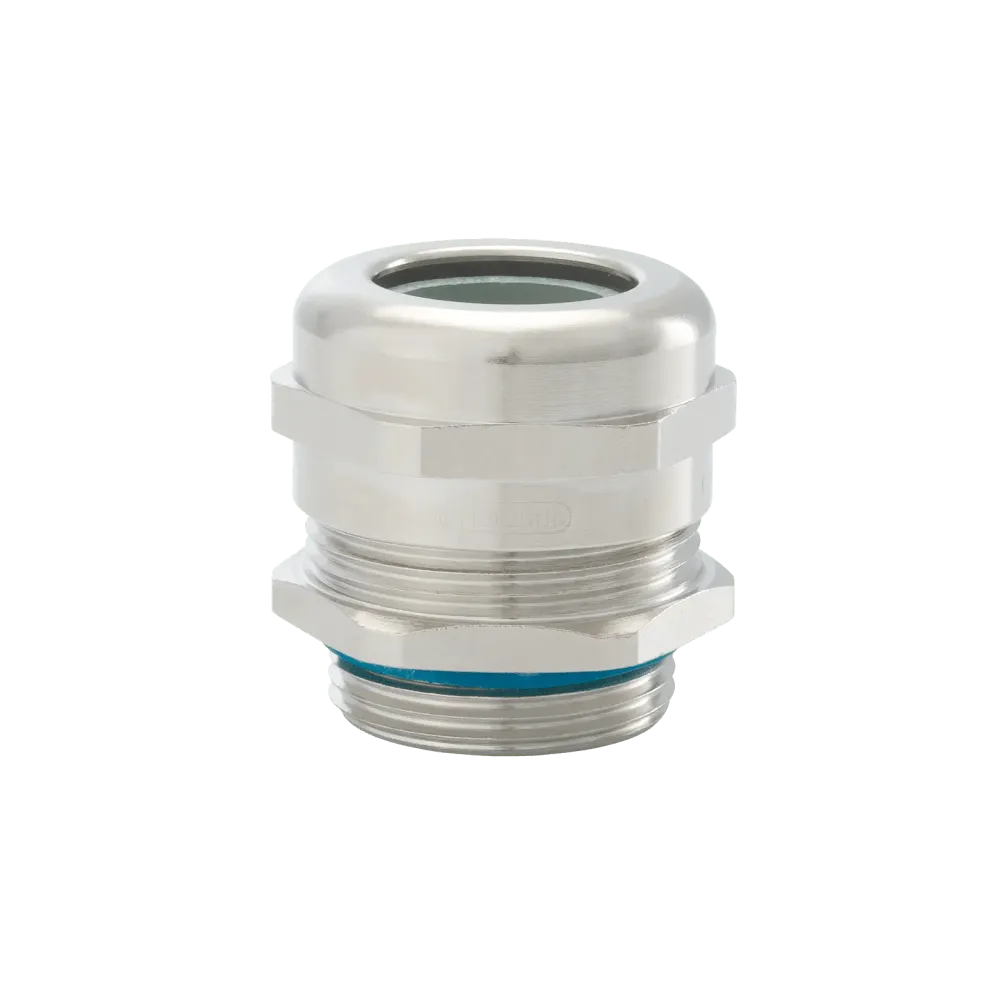

HSK-M-PVDF-EMV (metric) nickel-plated brass
EMC-compliant cable gland from HUMMEL for various cable diameters

. Protecting power units and electronic components from electromagnetic interference is becoming increasingly important. Cable management and connection solutions are particularly important in this respect. Only a secure and permanent 360o shield connection guarantees lasting protection of technical systems.

. // HSK-M-EMV: the standard version with very good shielding attenuation
. // HSK-M-EMV-D: quick and easy installation with maximum EMC protection
. // PVDF versions for applications in the particularly high temperature range
. // Flex versions with integrated kink protection
. // Cable glands with additional strain relief (HSK-M-EMV-MZ)
. // Stainless steel versions with excellent shielding attenuation

. HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets
. for international markets and numerous industries. Other, unpublished versions are available on request.

Technical data

• Material: Nickel-plated brass
• Clamping insert: PVDF
• Molded seal: FKM
• O-ring material: FKM
• Protection class: IP68 - 10bar/30min, IP 69 K
• NEMA Type Rating: 4 / 4X / 6 / UL 50E
• Temperature range: -35°C..+150°C
• Variant: metric/long
• External thread: M12 x 1.5 / M16 x 1.5 / M20 x 1.5 / M25 x 1.5

// andere Dichtungsmaterialien zB. Silikon auf Anfrage

Subject to errors and technical changes
