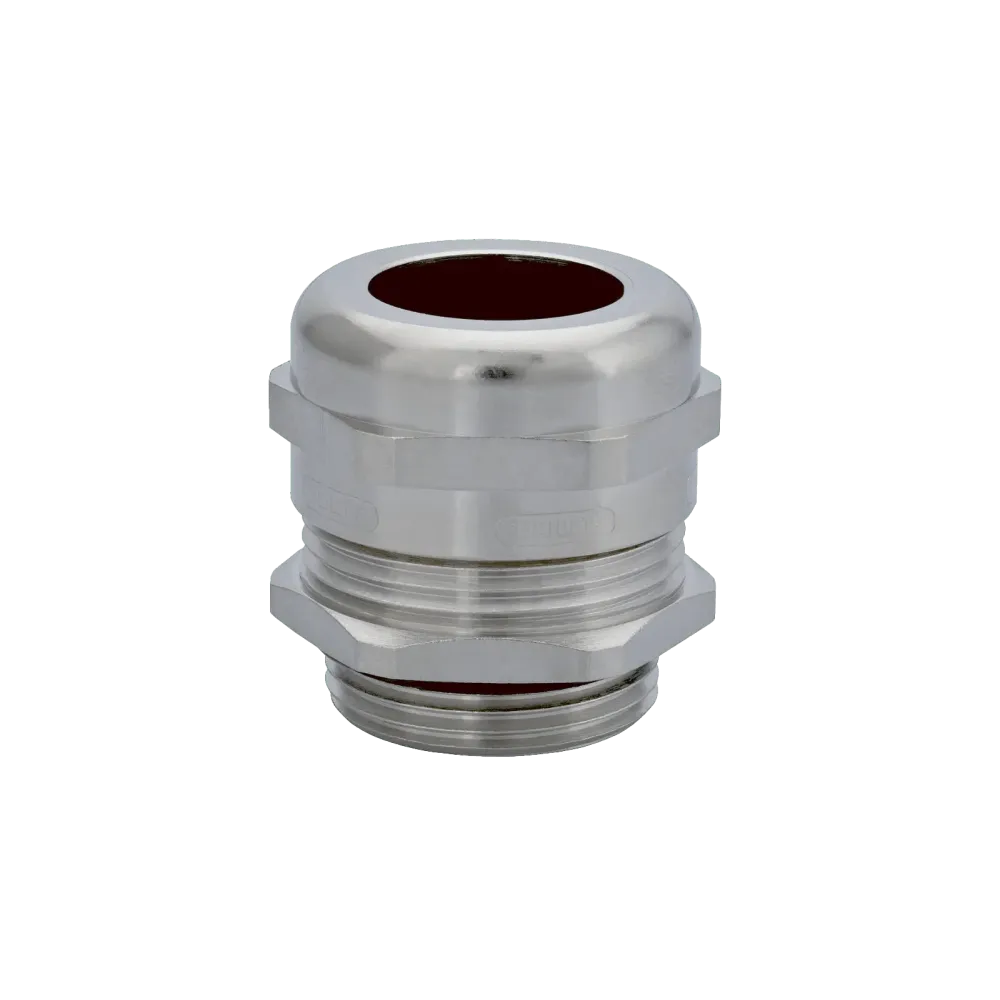

HSK-M-EMV (metric/long)

HSK-M-EMV (metric/long)
. EMC cable gland from HUMMEL for various cable diametersProtecting power units and electronic components from electromagnetic influences is becoming increasingly important. Cable management and connection solutions are particularly important in this respect. Only a secure and permanent 360o shield connection guarantees lasting protection for technical systems.

. // HSK-M-EMV: the standard version with very good shielding attenuation
. // HSK-M-EMV-D: quick and easy installation with maximum EMC protection
. // PVDF versions for applications in the particularly high temperature range
. // Flex versions with integrated kink protection
. // Cable glands with additional strain relief (HSK-M-EMV-MZ)
. // Stainless steel versions with excellent shielding attenuation

. HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets
. for international markets and numerous industries.Further, unpublished versions on request...

Technical data

• Material: Nickel-plated brass
• Clamping insert: Polyamide V0 according to UL94
• Molded seal: NBR
• O-ring material: NBR
• Protection class: IP68 - 10bar/30min, IP 69 K
• Type rating according to: 4, 4X, 6, UL 50E
• Temperature range: -40°C..+100°C
• Variant: Metric
• Thread: M12 x 1.5 / M16 x 1.5 / M20 x 1.5 / M25 x 1.5 / M32 x 1.5 / M40 x 1.5 / M50 x 1.5 / M63 x 1.5
• Tightening torque: 5 Nm
• Product group: EMC

// andere Dichtungsmaterialien z.B. Silikon auf Anfrage

Subject to errors and technical changes
