About the product

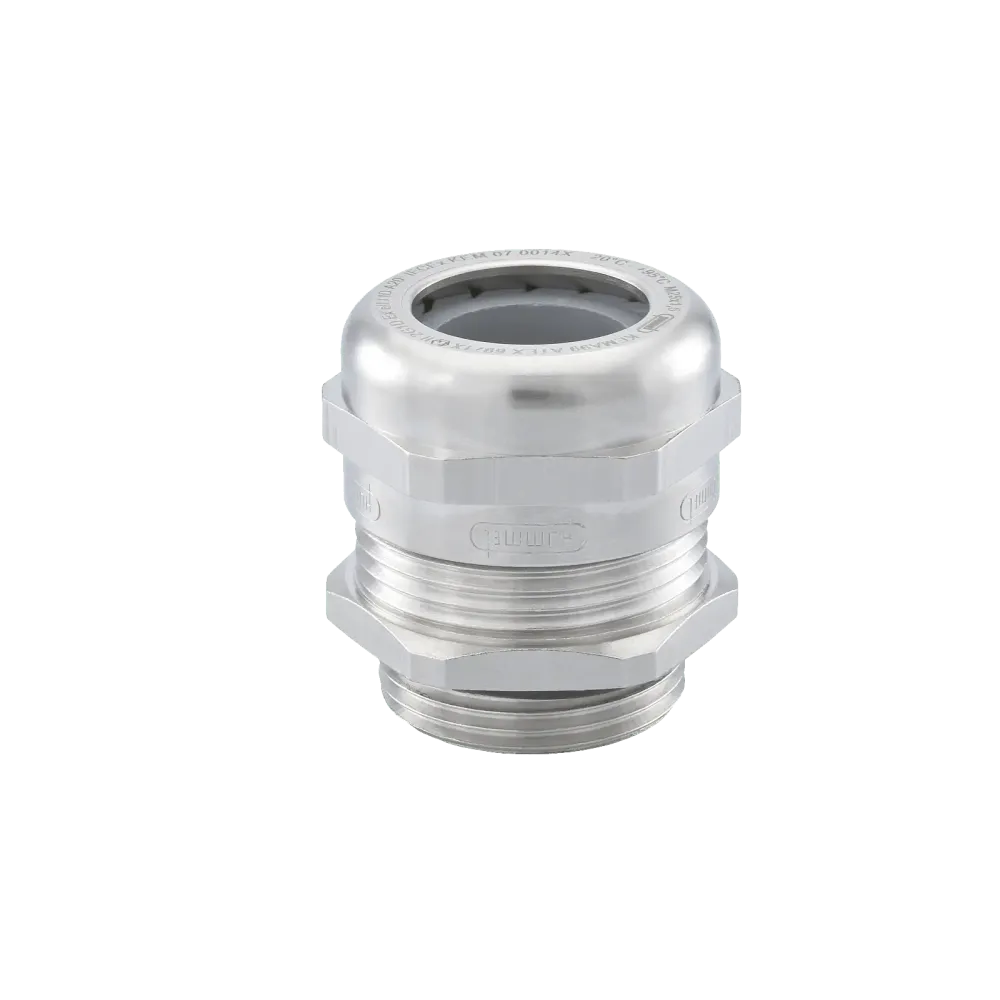

HSK-M-EMV-Ex (metric) nickel-plated brass
. EMC cable gland from HUMMEL for various cable diametersReliable EMC protection plus Ex approval: this is what the EMC-Ex e cable glands provide. Here too, HUMMEL offers a range of variants for special challenges. These include cable glands for high-temperature applications, cable glands that are particularly easy to install and stainless steel versions.
. // HSK-M-EMV-Ex: Cable glands with very good shielding attenuation
. // HSK-M-EMV-D-Ex: quick and easy installation, combined with maximum EMC protection
. // HSK-M-EMV-PVDF-Ex: High-temperature cable gland with EMC connection and explosion protection
. // HSK-INOX-EMV-Ex: stainless steel cable glands
. // HSK-MZ-EMV-Ex: cable gland with high strain relief, EMC and explosion protection
. HUMMEL has many years of experience in handling components for explosion-protected areas. This is the reason for a sophisticated range of Ex products in different materials and variants. Further, unpublished versions on request...
. EMC cable gland from HUMMEL for various cable diametersReliable EMC protection plus Ex approval: this is what the EMC-Ex e cable glands provide. Here too, HUMMEL offers a range of variants for special challenges. These include cable glands for high-temperature applications, cable glands that are particularly easy to install and stainless steel versions.
. // HSK-M-EMV-Ex: Cable glands with very good shielding attenuation
. // HSK-M-EMV-D-Ex: quick and easy installation, combined with maximum EMC protection
. // HSK-M-EMV-PVDF-Ex: High-temperature cable gland with EMC connection and explosion protection
. // HSK-INOX-EMV-Ex: stainless steel cable glands
. // HSK-MZ-EMV-Ex: cable gland with high strain relief, EMC and explosion protection
. HUMMEL has many years of experience in handling components for explosion-protected areas. This is the reason for a sophisticated range of Ex products in different materials and variants. Further, unpublished versions on request...
Technical data
- Material: Nickel-plated brass
- Clamping insert: Polyamide V0 according to UL94
- Molded seal: NBR
- O-ring material: NBR
- Protection class: IP 68 - 10 bar / IP 69 K
- Ex protection class: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
- NEMA Type Rating: 4 / 4X / 6
- Temperature range: -60°C..+95°C / -20°C..+95°C
// langes Anschlussgewinde auf Anfrage
Subject to errors and technical changes
Product specifications
| Series | HSK-M-EMV-Ex (metric) |
| Manufacturer | Hummel |
| IP protection | IP68 - IP69K |
