HSK-INOX M16 x 1.5 (metric)

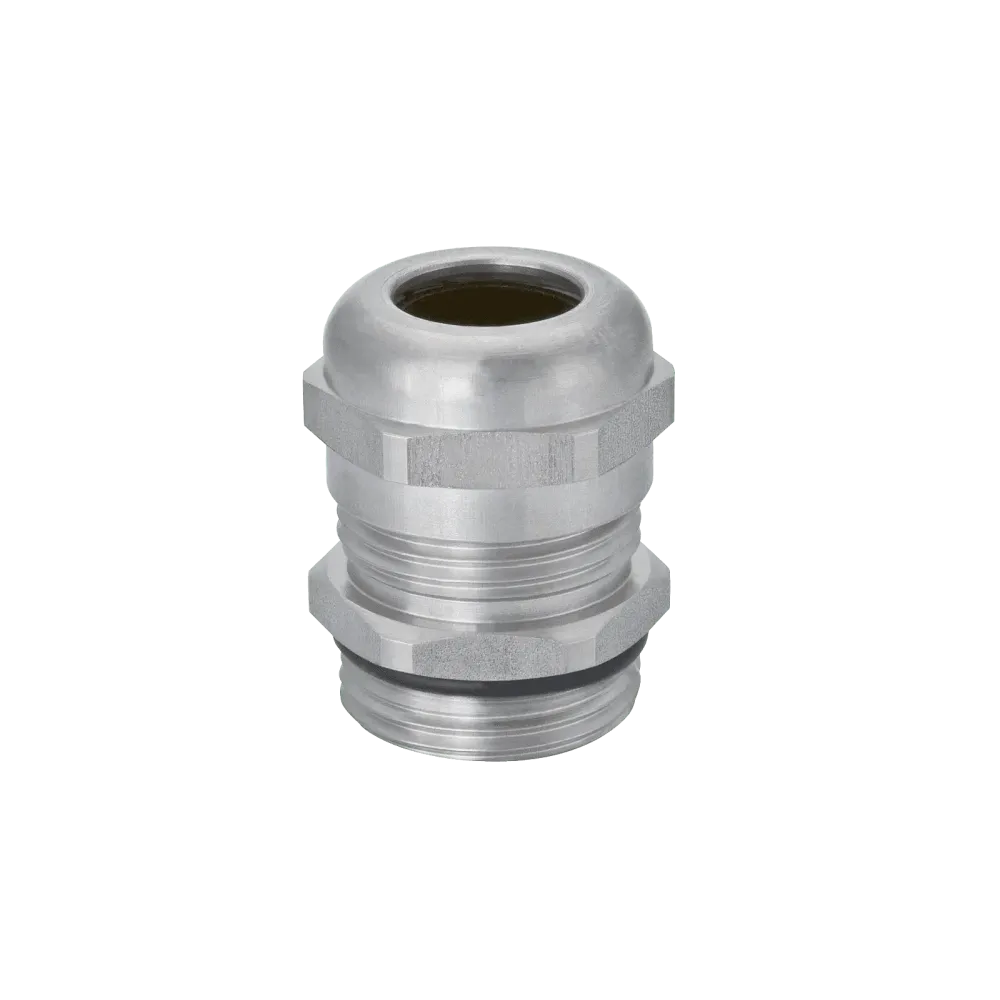

Cable gland HSK-INOX M16 x 1.5 INOX 1.4404 / INOX 1.4305
Metal cable gland from HUMMEL for various cable diameters

Reliable, robust solutions for industry
Cable glands from the HSK-M premium series are available in brass and stainless steel. They are designed for industrial use and are characterized by a high degree of tightness, impact resistance and strain relief for the cables. Brass cable glands from the HSK series are also available in a lead-free version. The metric versions in sizes M12-M63 are available. Other lead-free versions are available on request.

// Protection class IP 66, IP 68 up to 10 bar and IP 69K
// RoHS and REACH/SVHC compliant
// Free from conflict materials
// Halogen and phosphorus-free
// Fire protection class V0 according to UL94
// Anti-twist protection for cables in the terminal insert

. HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets and for numerous industries.
. markets and for numerous industries. Other, non-published HUMMEL products and designs on request.

Technical data

• Material: INOX 1.4404 / INOX 1.4305
• Clamping insert: Polyamide V0 according to UL94
• Molded seal: NBR
• O-ring material: NBR
• Protection class: IP 68 - 10 bar / IP 69 K
• NEMA Type Rating: 4 / 4X / 6
• Temperature range: -40°C to +100°C
• Variant: Metric
• Male thread (AG): M16 x 1.5
• Cable diameter: 3-7 mm / 5-10 mm

Subject to errors and technical changes
