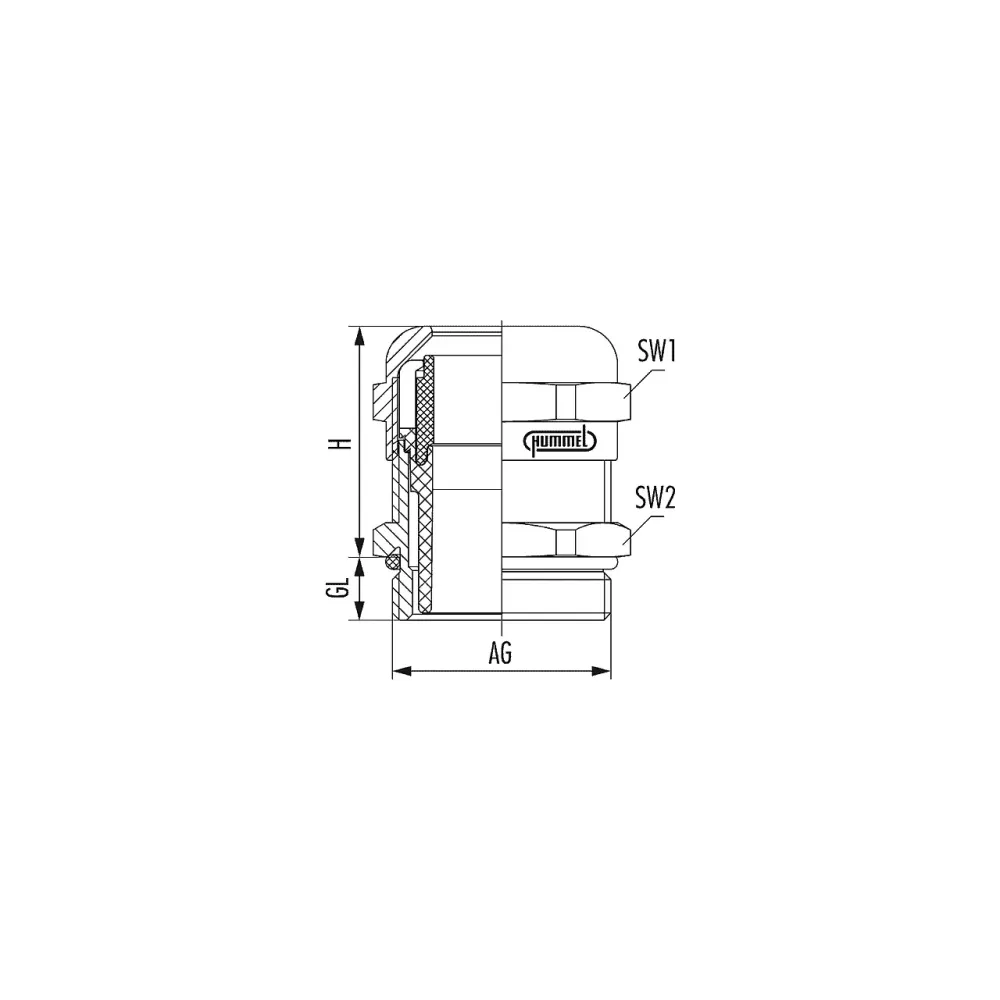

Cable gland HSK-M-Ex M16 x 1.5 (metric-long) nickel-plated brassEx cable gland from HUMMEL for various cable diametersSafe explosion protection
Not all explosion protection is the same. There are different scenarios and application sources that require different explosion protection. Ex cable glands from HUMMEL offer protection in very different environments.Ex e Increased safety:
. The cable gland prevents the occurrence of sparks and electric arcs inside or on external parts of electrical equipment that do not occur during normal operation.Ex d Flameproof enclosure:
. Parts that can ignite an explosive atmosphere are firmly enclosed in an enclosure. The enclosure withstands the pressure of an explosion and prevents transmission to the outside.Ex ta protection against dust:
. The cable gland protects the enclosure against the ingress of dust in accordance with EN IEC 60529HUMMEL has many years of experience in handling components for explosion-protected areas. This is the reason for a sophisticated range of Ex products in different materials and variants. Further, unpublished versions on request...
Not all explosion protection is the same. There are different scenarios and application sources that require different explosion protection. Ex cable glands from HUMMEL offer protection in very different environments.Ex e Increased safety:
. The cable gland prevents the occurrence of sparks and electric arcs inside or on external parts of electrical equipment that do not occur during normal operation.Ex d Flameproof enclosure:
. Parts that can ignite an explosive atmosphere are firmly enclosed in an enclosure. The enclosure withstands the pressure of an explosion and prevents transmission to the outside.Ex ta protection against dust:
. The cable gland protects the enclosure against the ingress of dust in accordance with EN IEC 60529HUMMEL has many years of experience in handling components for explosion-protected areas. This is the reason for a sophisticated range of Ex products in different materials and variants. Further, unpublished versions on request...
Technical data
- Material: Nickel-plated brass
- Clamping insert: Polyamide V0 according to UL94
- Molded seal: NBR
- O-ring material: NBR
- Protection class: IP 68 - 10 bar / IP 69 K
- Ex protection class: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
- NEMA Type Rating: 4 / 4X / 6
- Temperature range: -20°C to +95°C / -60°C to +95°C
Subject to errors and technical changes
Product specifications
| Series | HSK-M-Ex (metric-long) |
| Manufacturer | Hummel |
