About the product

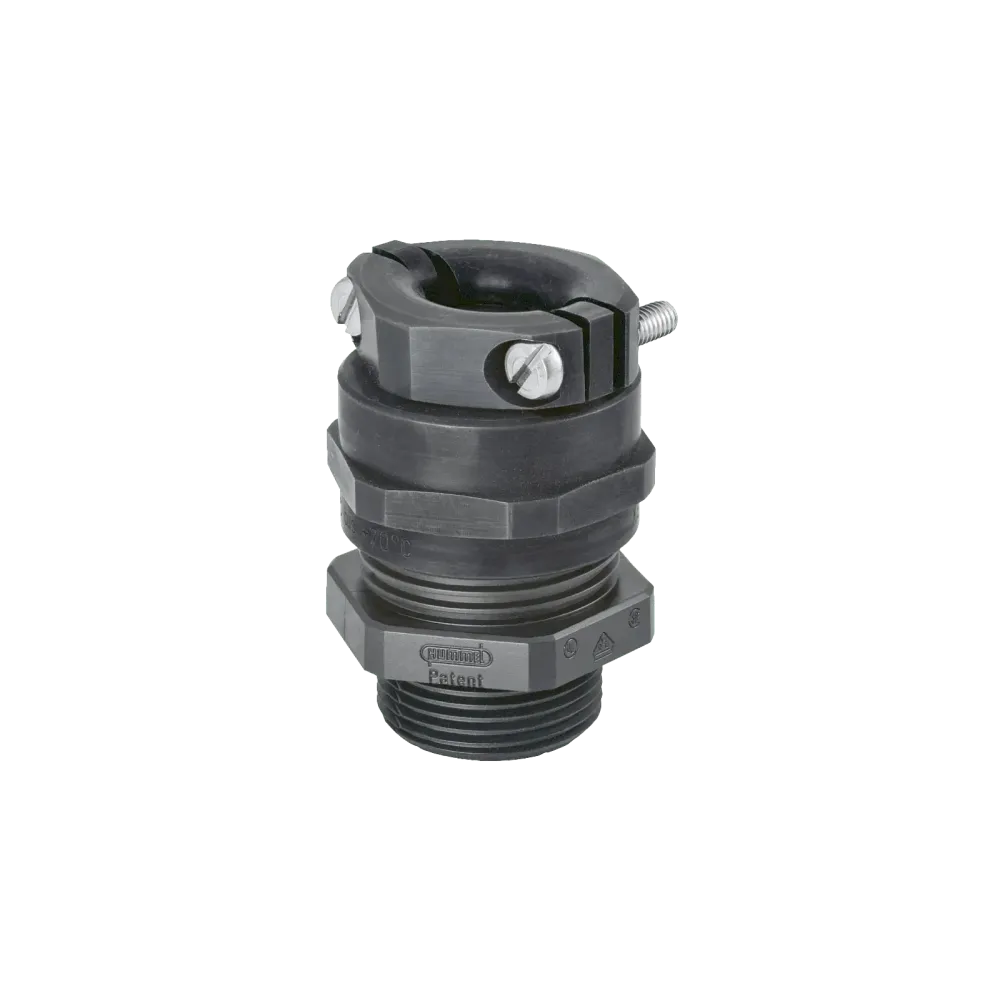

HSK-K-MZ-Ex (metric) M16 x 1.5 - M63 x 1.5 Polyamide
. Plastic cable gland from HUMMEL for hazardous areas with various threads and cable diameters.Ex cable glands made of plasticThe cable gland made of specially formulated, glass fiber-reinforced polyamide is designed for use on electrical equipment with Ex e and Ex t types of protection. It has been developed in accordance with the DIN EN IEC 60079-7 and 60079-31 series of standards and complies with the current ATEX and IECEx approvals.
. // halogen-free
. // Protection class IP 68 up to 10 bar
. // Vibration protection of the union nut
. // Abrasion-resistant labeling
. // can be used in zones 1-2 and zones 20-22HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets and numerous industries. Other, non-published HUMMEL designs and products on request...
. Plastic cable gland from HUMMEL for hazardous areas with various threads and cable diameters.Ex cable glands made of plasticThe cable gland made of specially formulated, glass fiber-reinforced polyamide is designed for use on electrical equipment with Ex e and Ex t types of protection. It has been developed in accordance with the DIN EN IEC 60079-7 and 60079-31 series of standards and complies with the current ATEX and IECEx approvals.
. // halogen-free
. // Protection class IP 68 up to 10 bar
. // Vibration protection of the union nut
. // Abrasion-resistant labeling
. // can be used in zones 1-2 and zones 20-22HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets and numerous industries. Other, non-published HUMMEL designs and products on request...
Technical data
- Material: Polyamide
- Molded seal: NBR
- O-ring material: NBR
- Protection class: IP 68 - 10bar / IP 69 K
- Ex protection class: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
- Temperature range: -40°C..+70°C
- Color: black
- RAL: 9005
Errors and technical changes reserved.
Product specifications
| Series | HSK-K-MZ-Ex (metric, PG) |
| Manufacturer | Hummel |
| Colour | Black |
