About the product

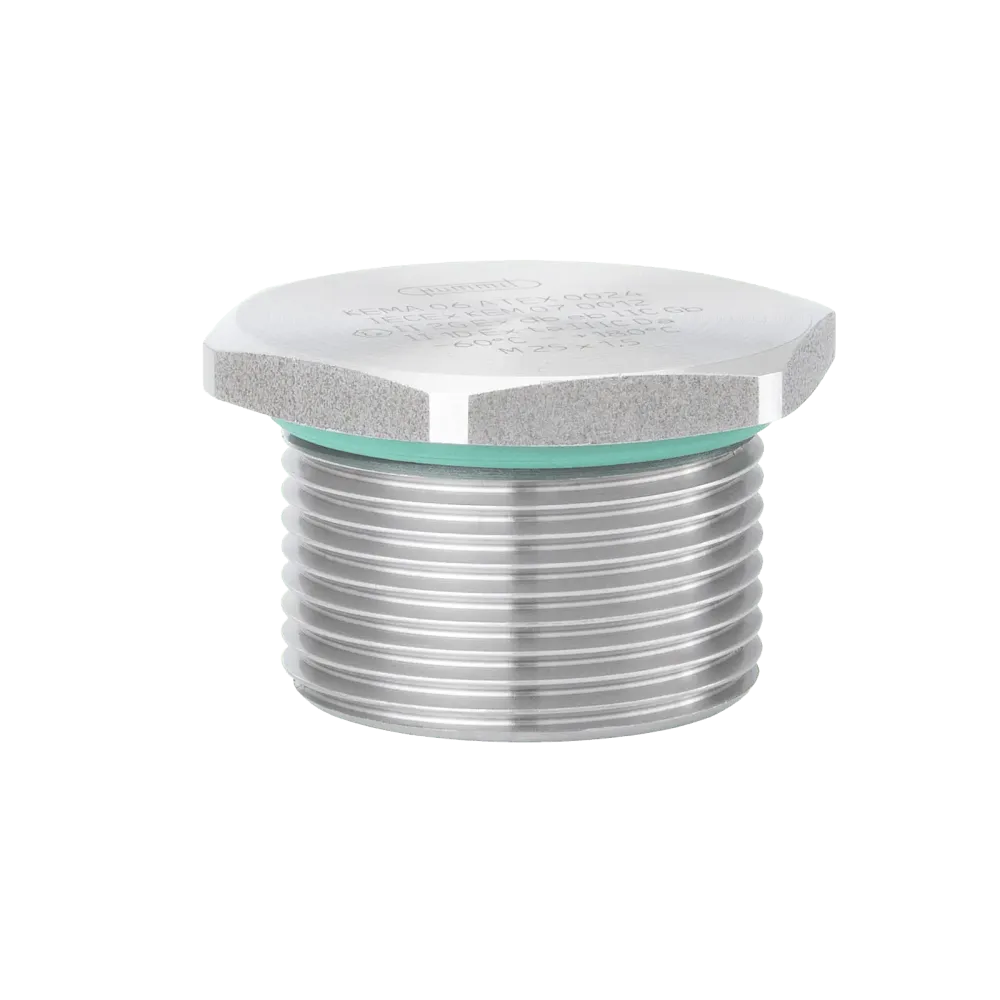

V-INOX-FKM-Ex d (metric) INOX 1.4404
. The closures are available in different materials, sizes and with different thread types.
Ex accessories
. Cable glands for explosion-protected areas also require accessories for explosion-protected areas. HUMMEL has developed a wide range of accessories precisely for this segment. These accessories meet all the requirements for hazardous areas and have the necessary certifications and approvals.
. // Accessories made of plastic, brass and stainless steel
. // Closures with Ex approvals
. // Reducers in many different sizes
. Other, non-published HUMMEL designs and products on request.
Technical data
- Material: INOX 1.4404
- O-ring material: FKM
- Protection class: IP68 - 10bar/30min, IP 69 K
- Ex protection class: II 1D Ex ta IIIC Da, II 2G Ex db eb IIC Gb
- Temperature range: -20°C..+180°C
Subject to errors and technical changes
Product specifications
| Series | V-INOX-FKM-Ex d |
| Manufacturer | Hummel |
