About the product

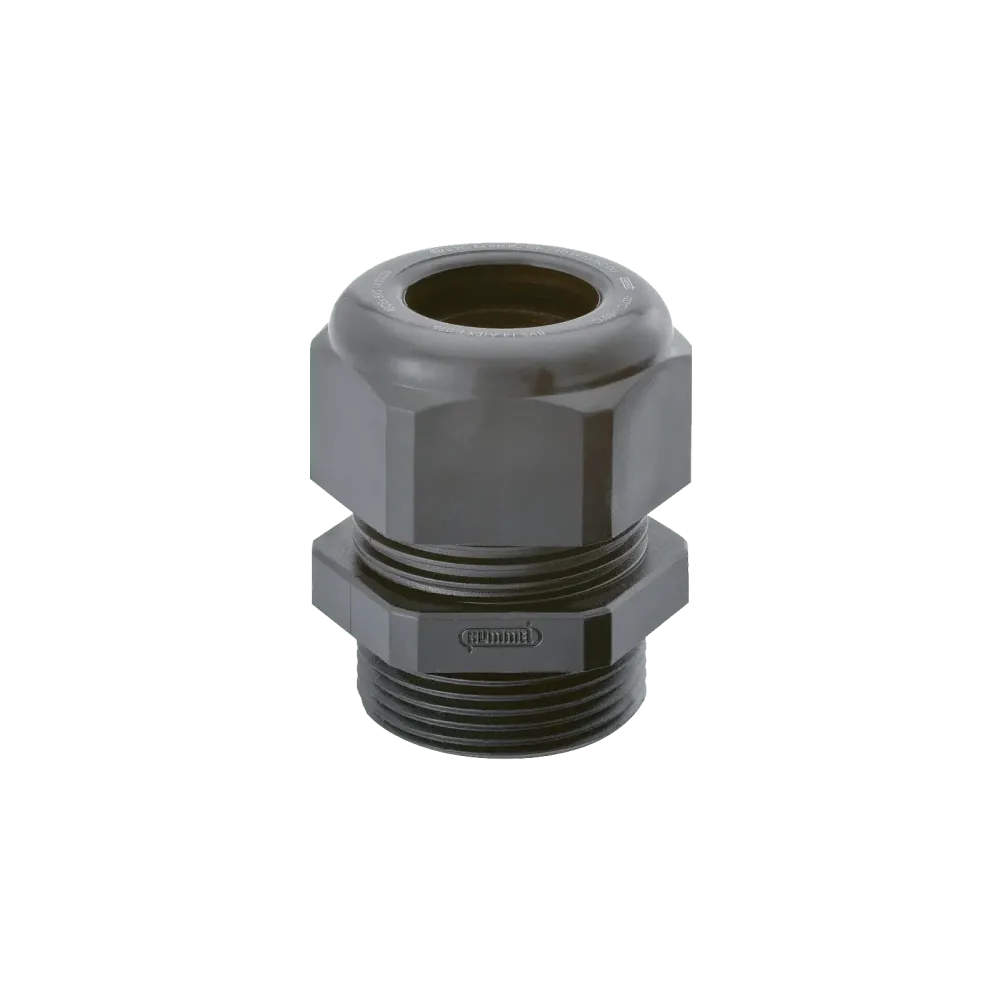

HSK-K-Ex-Active M16 x 1.5 (short) polyamide, glass fiber reinforced
. Ex cable gland from HUMMEL in various colors and for different cable diameters
HSK-K-Ex-Active: The polyamide screw connection for hazardous areas
The cable gland made of specially formulated, glass fiber-reinforced polyamide is designed for use on electrical equipment with Ex e and Ex t types of protection. It has been developed in accordance with the DIN EN IEC 60079-0, 60079-7 and 60079-31 series of standards and complies with the current ATEX and IECEx approvals
- halogen-free
- Protection class IP68 up to 10 bar
- Vibration protection of the union nut
- Abrasion-resistant labeling
- Can be used in zones 1-2 and zones 20-22Other, non-published HUMMEL designs and products on request.
Technical data
- Material: Polyamide, glass fiber reinforced
- Molded seal: NBR
- O-ring material: NBR
- Protection class: IP 68 - 10 bar
- Ex protection class: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da / Class I Div 2 Groups A,B,C,D / Class II Div 1 Groups E,F,G
- Temperature range: -20°C..85°C

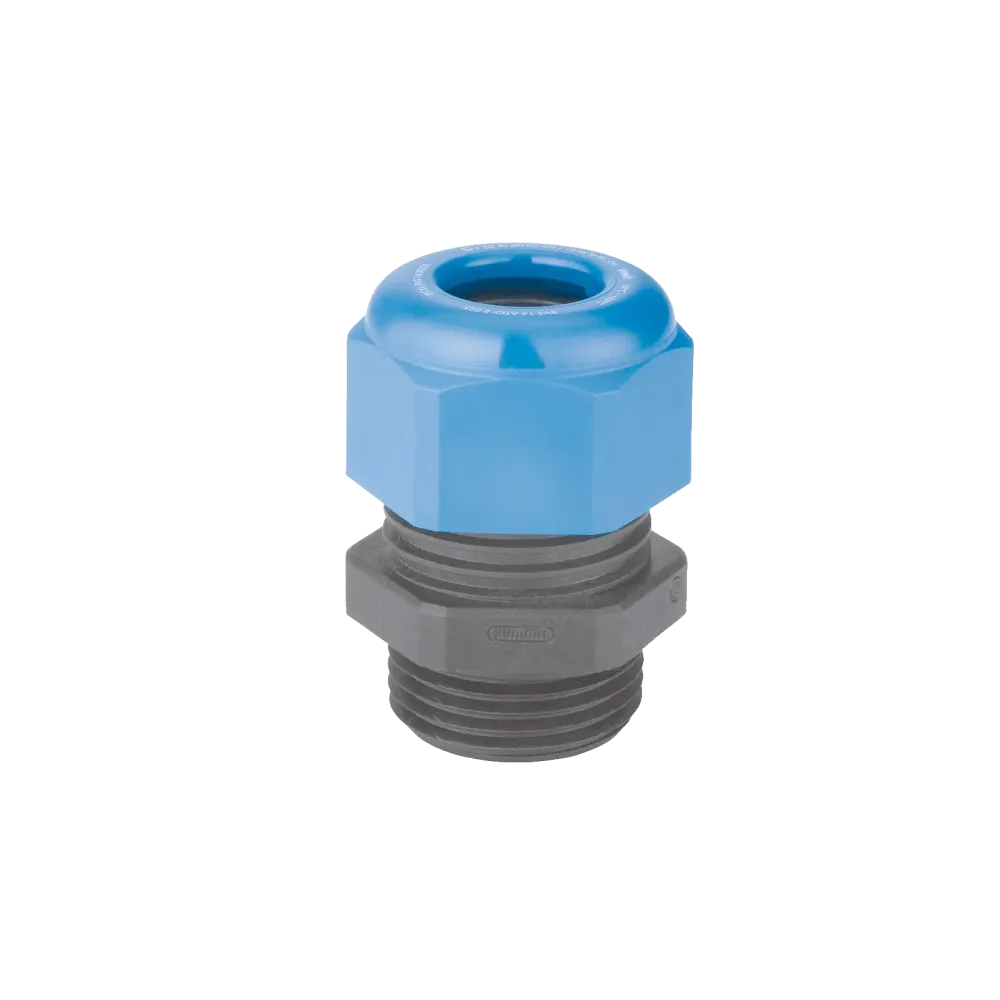

- Color: black / blue-black
- RAL: 9005 / 5012
Subject to errors and technical changes
Product specifications
| Series | HSK-K-Ex-Active |
| Manufacturer | Hummel |
