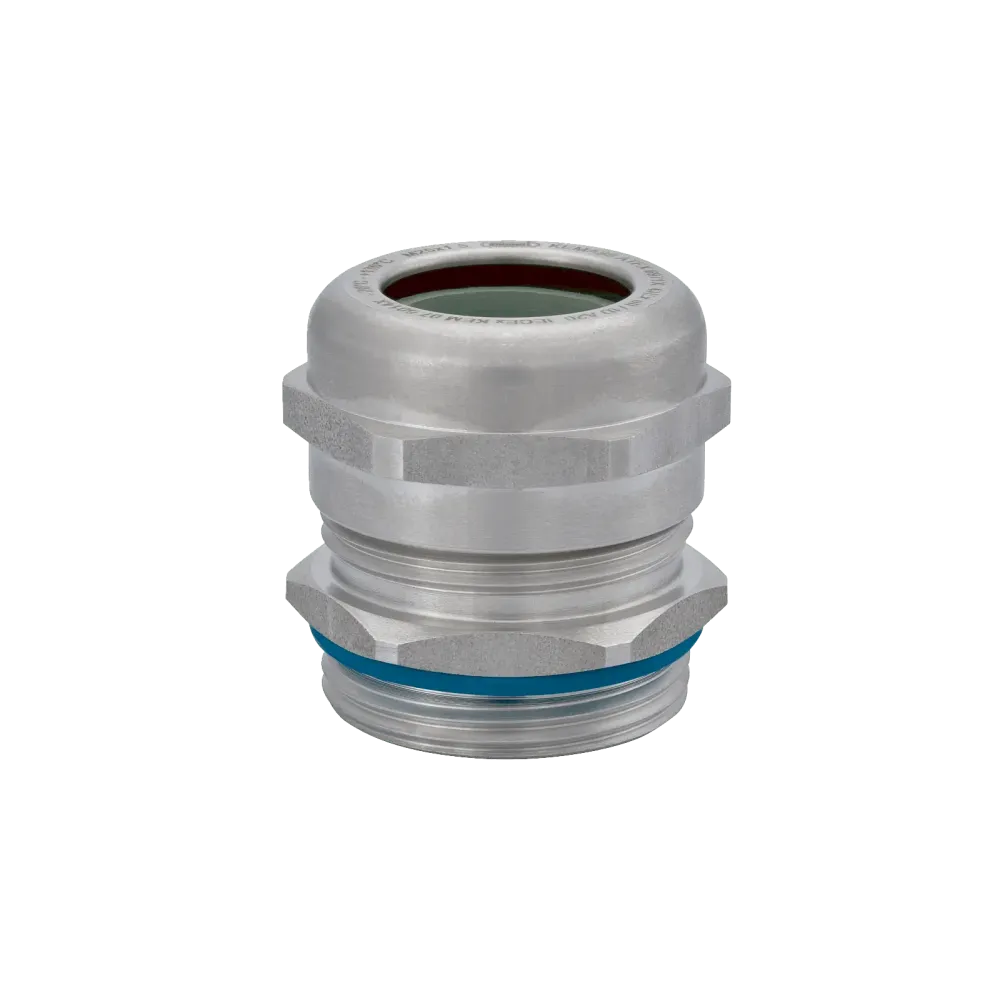

HSK-INOX-PVDF-Ex M16 x 1.5

HSK-INOX-PVDF M16 x 1.5 INOX 1.4305
Stainless steel cable gland for chemical and high-temperature applications

Ex cable glands
. HUMMEL offers a wide range of cable glands for explosion-protected areas. These include cable glands for ignition protection types Ex d and Ex e. For areas in which "increased safety" (Ex e) is prescribed, HUMMEL offers cable glands in plastic and metal, also with multi or flat cable inserts. Cable glands with type of protection Ex d meet the requirements for a "flameproof enclosure". This prevents the transmission of an explosion inside the enclosure to the outside.

. // HSK-K-Ex-Active, the plastic cable glands for hazardous areas
// Ex e metal cable glands with various inserts
// Ex d metal cable glands for flameproof enclosures

. HUMMEL has many years of experience in handling components for explosion-protected areas. This is the reason for a sophisticated range of Ex products in different materials and variants. The cable glands have all the relevant approvals for the international markets and for numerous industries. Further, non-published HUMMEL products and designs on request.

Technical data

• Material: INOX 1.4305
• Clamping insert: PVDF
• Molded seal: FKM
• O-ring material: FKM
• Protection class: IP 68 - 10 bar / IP 69 K
• Ex protection class: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
• NEMA Type Rating: 4 / 4X / 6
• Temperature range: -20°C..+130°C
• Variant: Metric
• External thread (male): M16 x 1.5
• Cable diameter: 3-7 mm / 5-10 mm

Subject to errors and technical changes
