HSK-K M16 x 1.5 long

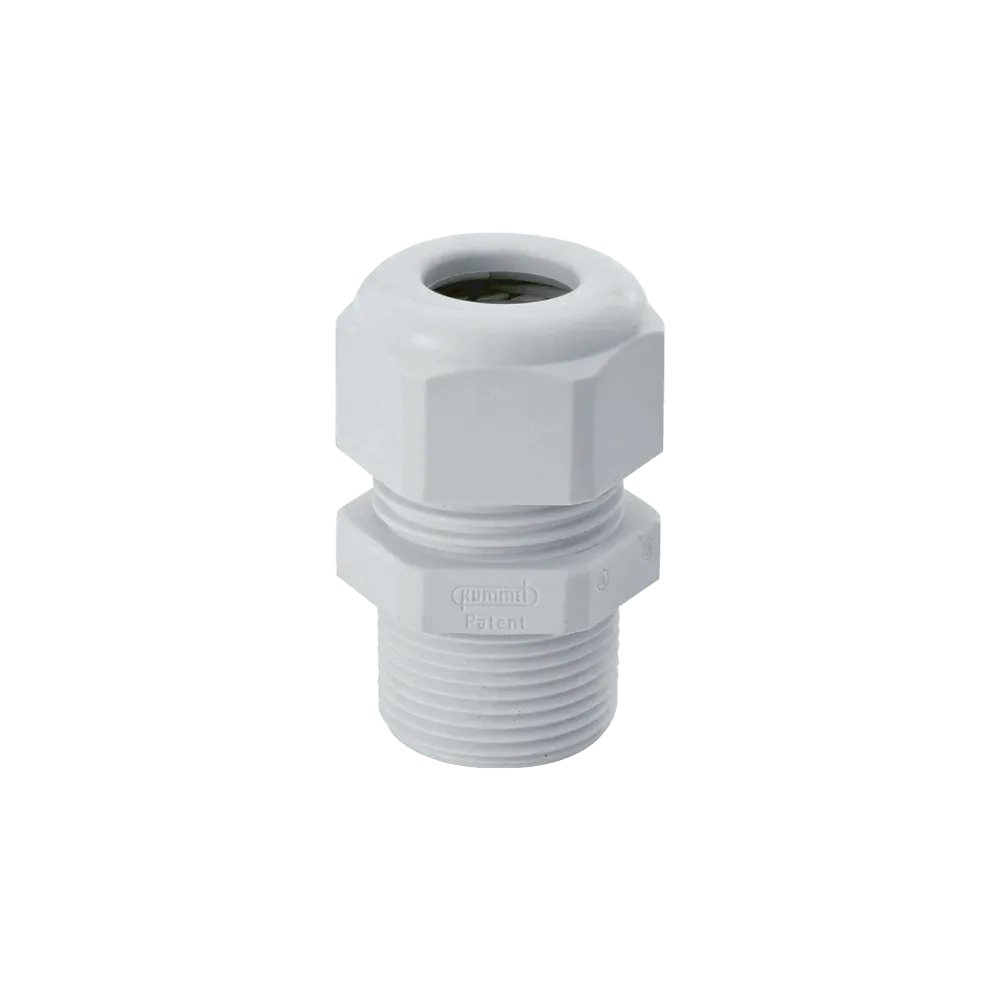

HSK-K (metric-long) M16 x 1.5 PolyamidePlastic cable gland from HUMMEL in different colors and for different cable diameters
HSK-K: The right solution for every applicationHUMMEL offers a huge portfolio of cable glands for industrial applications. The plastic cable glands in the HSK-K series belong to the premium segment and meet the highest quality standards. They meet all requirements for harsh industrial environments, both indoors and outdoors. They have all the relevant certificates and can therefore be used worldwide. Customers can therefore choose between metric thread types, PG or NPT threads. There are also cable glands for flat cables, cable glands with multiple inserts and cable glands with a flexible cable outlet. The HSK-K series includes cable glands made of polyamide and PVDF.

. // Protection class IP 66, IP 68 up to 10 bar and IP 69K
. // RoHS and REACH/SVHC compliant
// free from conflict materials
// halogen and phosphorus-free
// Fire protection class V0 according to UL94
// Outdoor-resistant polyamide in accordance with UL 746C f1 (HSK-K black)HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all the relevant approvals for international markets and numerous industries. Other, non-published HUMMEL designs and products on request...

Technical data

• Material: Polyamide V0 according to UL94
• Molded seal: NBR
• Protection class: IP 54, with additional O-ring: IP 68 - 10 bar, IP 69 K
• NEMA Type Rating: 4 / 4X / 6
• Temperature range: -40°C..+100°C
• Color: grey / black / blue
• RAL: 7035 / 9005 / 5012

// with additional pre-mounted O-ring on request
// other sealing materials e.g. silicone on request
