About the product

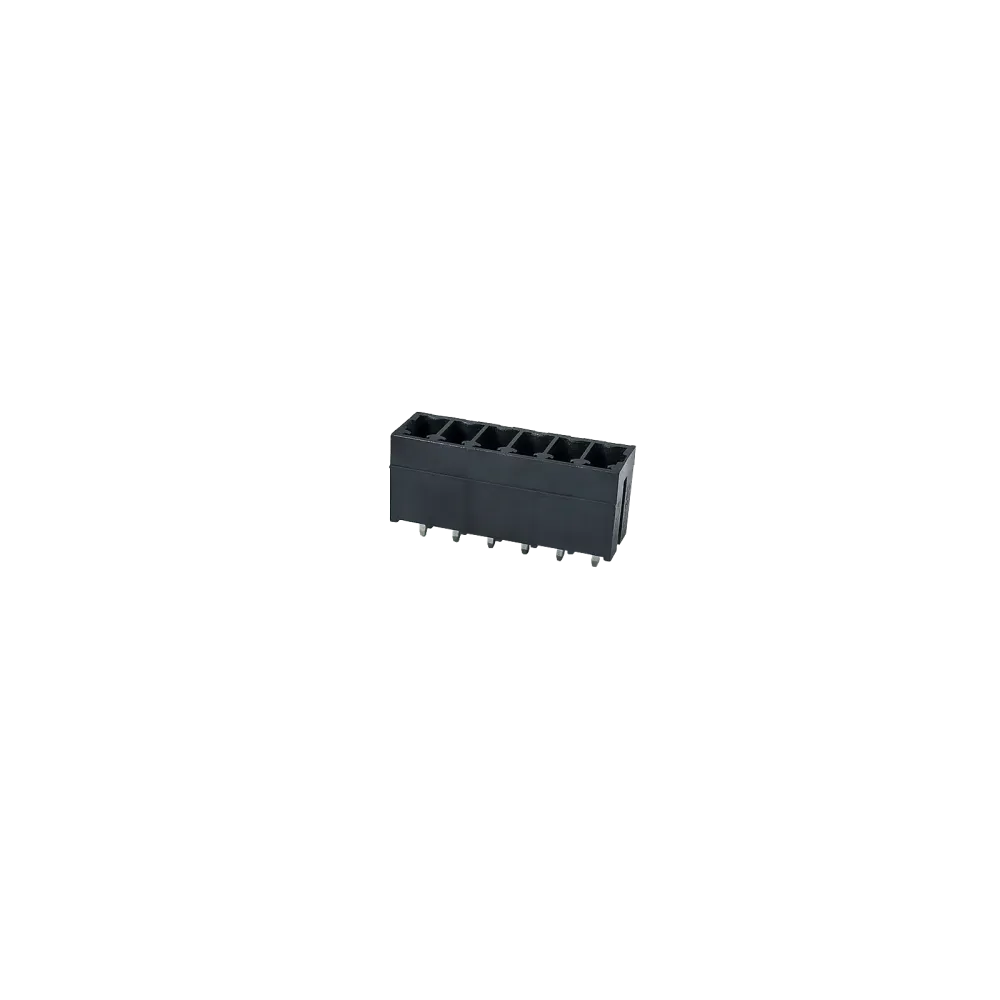

Printed circuit board (PCB) connector socket ECH350V-xxPL from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-24 poles
- Grid 3.50mm
- Black
- For reflow soldering (temperature condition according to standard IPC/JEDEC J-STD-020E)
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Designation: PCB Connector - Socket, Reflow Soldering (Temperature condition according to standard IPC/JEDEC J-STD-020E), 3.50 mm pitch, 300 V, 8 A
Category: PCBConnector - Socket
Pitch: 3.50mm
Color: black
Interlock type: without
Soldering method: Reflow Soldering (Temperature condition according to standard IPC/JEDEC J-STD-020E)

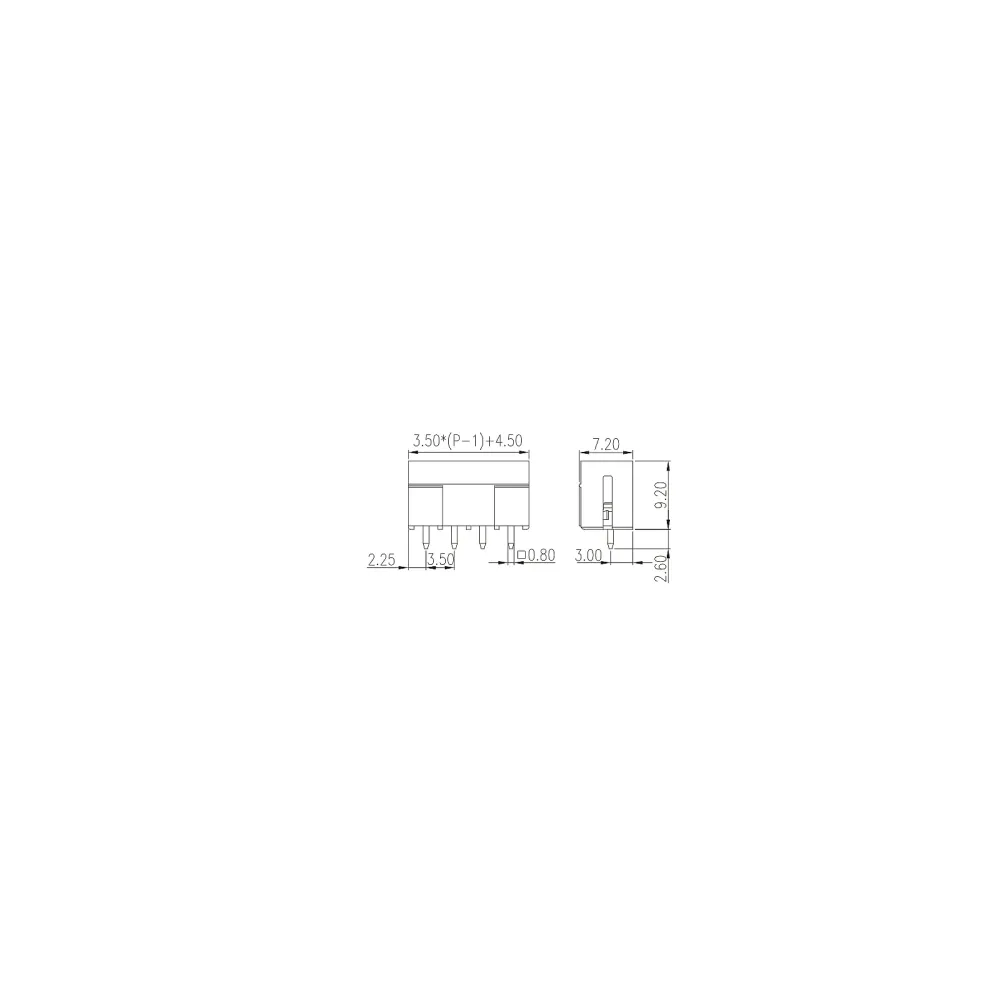

Length (mm): 3.50*(P-1)+4.5
Width (mm): 7.2
Height (mm): 9.2
Pin dimensions (thickness x width): 0.8×0.8
Number of poles: 02P~24 P
Level: Single level
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 8 mA |
| Contact grid | 3.50 mm |
