About the product

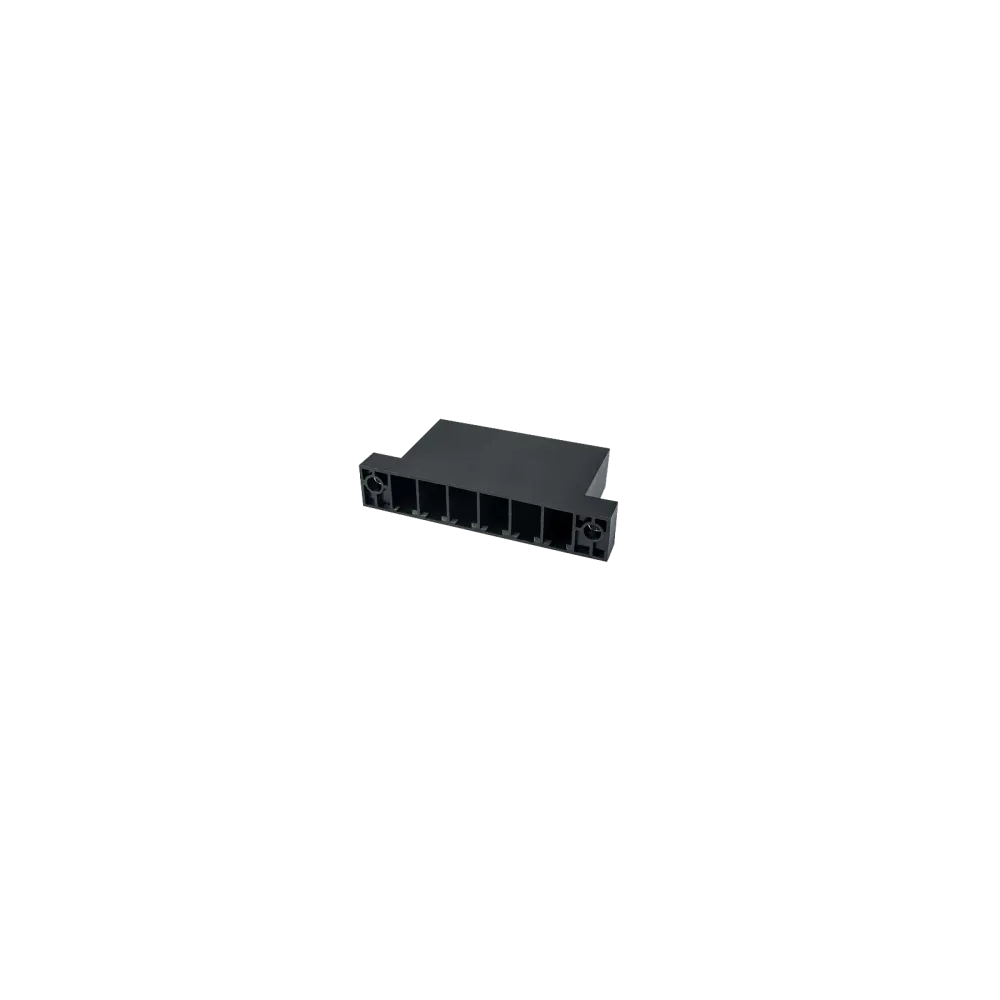

Printed circuit board (PCB) connector socket ECH762RRM-xxP from DINKLE
The PCB connectors from DINKLE are designed designed for a wide range of applications in the industrial sector and comply with the UL1059 and IEC/EN61984 safety approvals. Push-in and screw connection methods are available.
- PCB connection socket 2-12 poles
- Grid 7.62mm
- Black
Other unpublished standard products and customized versions from DINKLE on request.
Technical data
Description: PCB Connector - Socket, Wave soldering, 7.62 mm pitch, 300 V, 41 A
Category: PCBConnector - Socket
Pitch: 7.62mm
Color: black
Locking type: Screw flange
Soldering method: Wave soldering

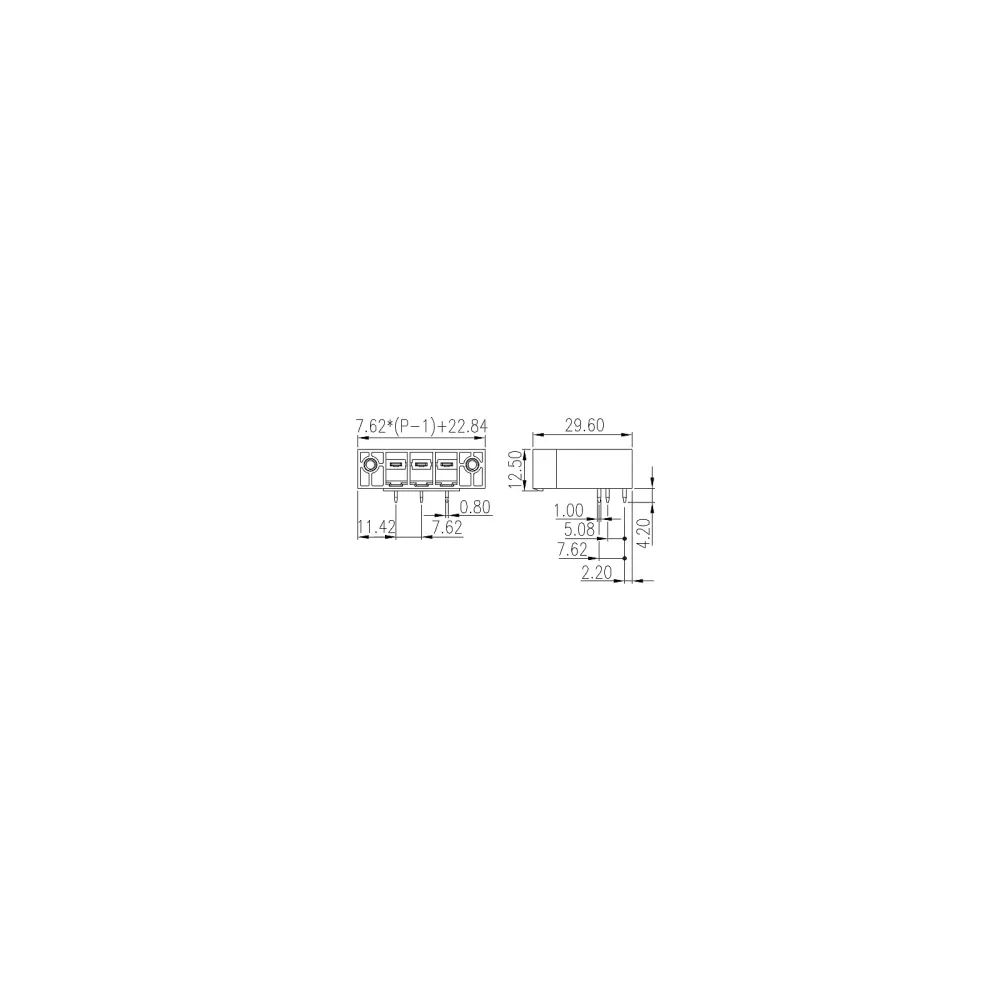

Length (mm): 7.62*(P-1)+7.60
Width (mm): 29.6
Height (mm): 12.5
Pin dimensions (thickness x width): 0.8×1.0

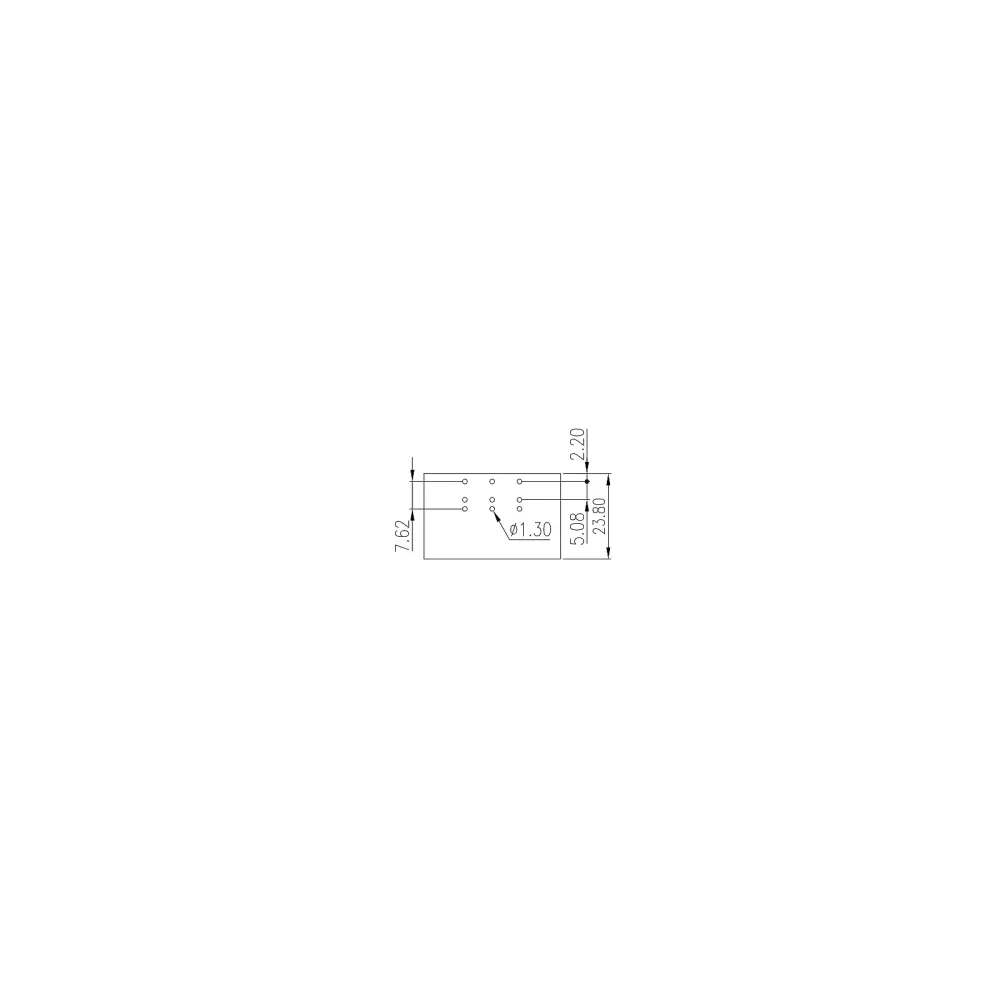

PCB hole diameter (mm): 1.3
Number of poles: 02P~12 P
Level: Single level
Subject to errors and technical changes
Product specifications
| Nominal voltage (V) | 300 V |
| Nominal current | 41 A |
| Contact grid | 7.62 mm |
